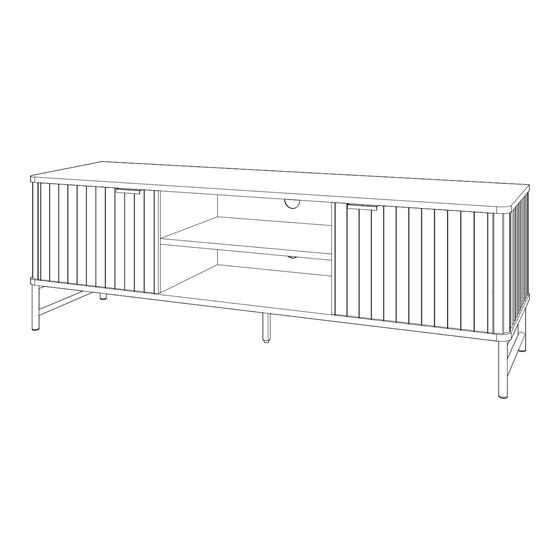

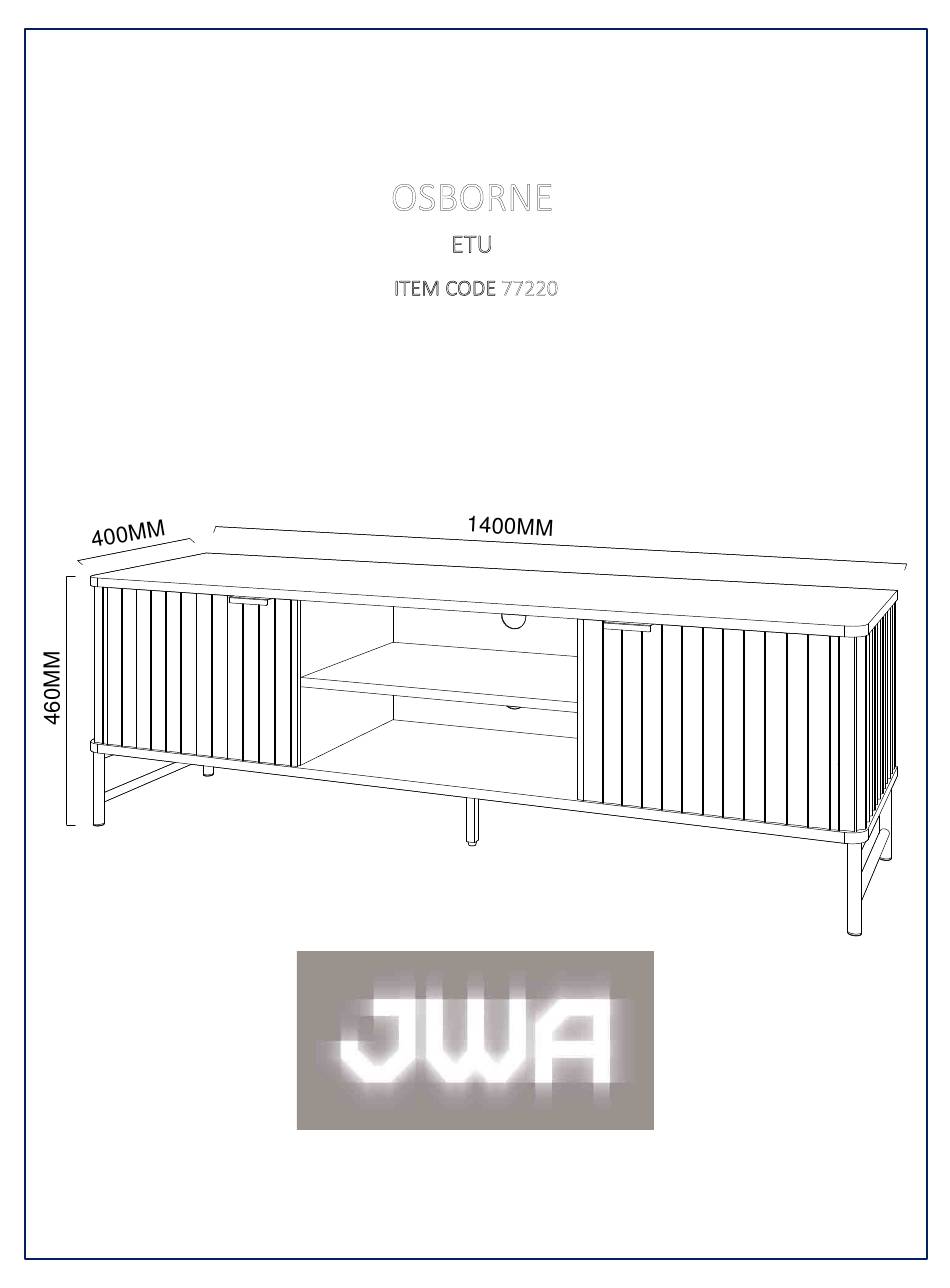

- Page 1 ASSEMBLY INSTRUCTION OSBORNE ITEM CODE 77220 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when li�ing. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instruc�ons carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST... - Page 4 PARTS LIST ITEM QTY NO. ITEM 10PCS 12PCS Φ6*35 10PCS 12PCS Φ15*10 Φ3*16 20PCS 8PCS Φ6*30 Φ5*35 24PCS 8PCS Φ4*40 Φ4*14 2PCS 4PCS Φ4*12 4PCS 8PCS 2PCS 2PCS 4PCS Φ4*10 2PCS Φ6*40 ITEM QTY NO. ITEM TOP PANEL 1 PC 1 PC RIGHT MIDDLE PANEL 1 PC...
- Page 5 STEP 1: STEP 2:...
- Page 6 STEP 3: STEP 4:...
- Page 7 STEP 5: STEP 6:...
- Page 8 STEP 7: STEP 8:...
- Page 9 STEP 9: STEP 10:...
- Page 10 STEP 11: Assemble these four holes first, adjust the door and ensure it is level, then tighten all screws. How to adjust the door and ensure it is level, please see the below information.
- Page 11 STEP 12: STEP 13: WALL...
- Page 12 ASSEMBLY IS COMPLETE CAUTION：Always Lift Your Furniture When Moving /Relocating - Do Not Drag. Dragging Can Cause The Legs To Bend/Break.
- Page 13 SAFETY BRACKETS INSTRUCTIONS 1. Attach the strap to the furniture frame with the small screw and washer. 2. Move the furniture to its final position.Attach the strap to the wall with the large screw and washer. If mounting into brick or masonry you will need to acquire wall anchors.
- Page 14 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
