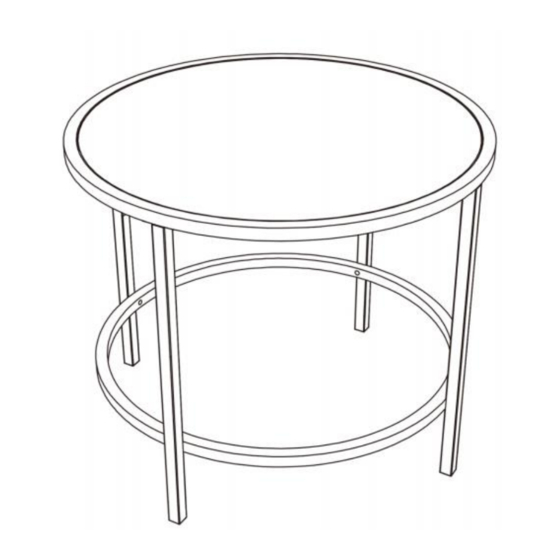

- Page 1 ASSEMBLY INSTRUCTION HAMMOND LAMP TABLE ITEM CODE 716570001 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 3: Parts List
PARTS LIST BOLT M6X10MM 8 PCS HEX KEY 1 PC M6X10MM LONG BOLT 4 PCS Top Panel x1 Leg x4 Middle Frame x1... - Page 4 STEP 1: • Prepare a surface with a protective blanket or cardboard. • Place the top panel(1) flat on the surface. • Connect 4xleg(2) to the top panel(1). • Secure with bolt(A) per connection. Fasten with allen key(B). • Fasten only until the bolt is tight in the thread, do not fully fasten for now.
- Page 5 STEP 2: • Connect middle frame(3) to leg(2). • Secure with long bolt(C) per connection. Fasten with allen key(B). • Once levelled turn the table back on its side and fasten all the bolts.
- Page 6 ASSEMBLY IS COMPLETE...
- Page 7 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws. 3.
-
Page 8: Product Care
PRODUCT CARE: To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish. •...
