Summary of Contents for Racing RAC432KIT

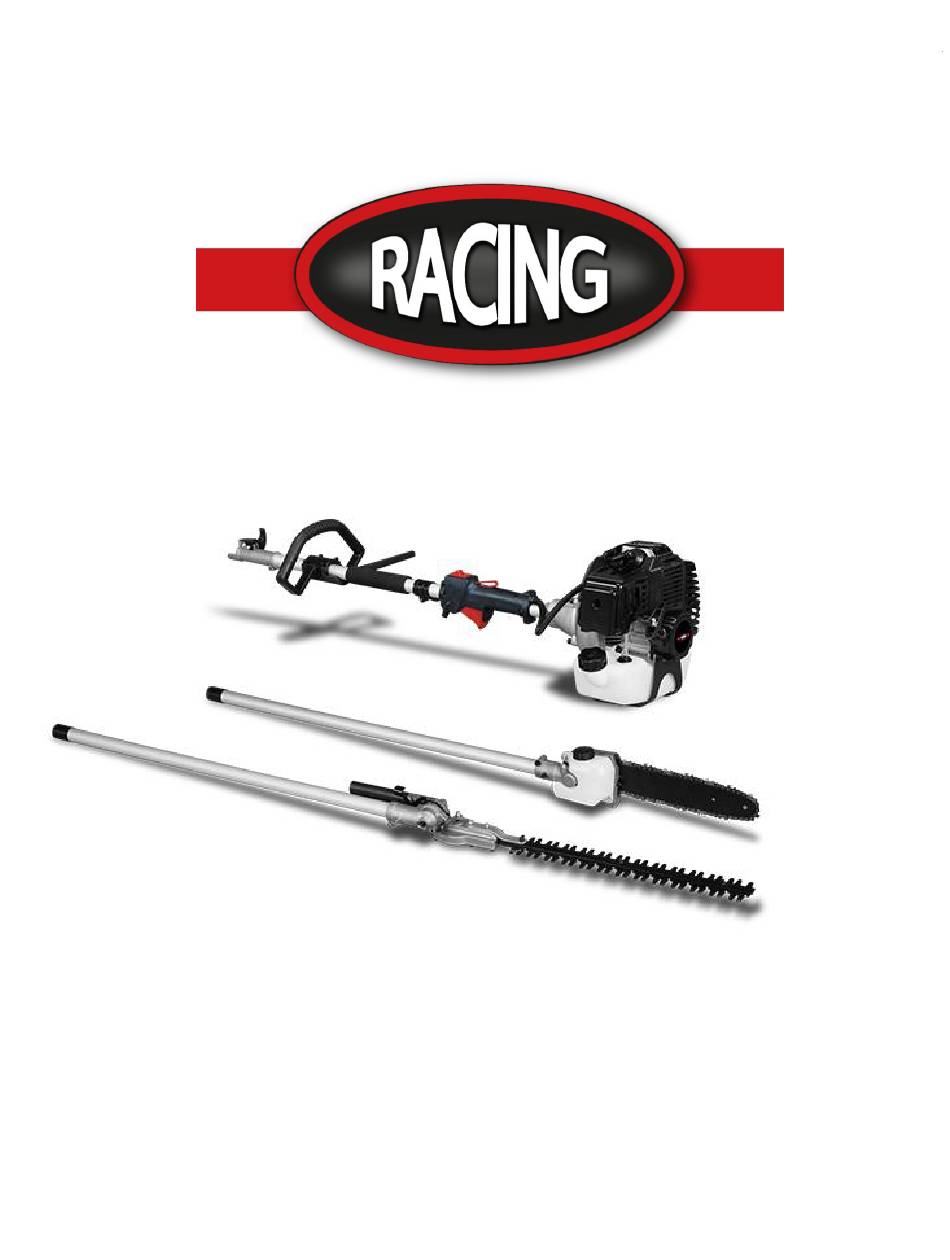

- Page 1 ORIGINAL INSTRUCTIONS=>EN PETROL MULTI-TOOL 43 CM³ - 2 IN 1 RAC432KIT USER GUIDE CAUTION: Read the instructions before using the machine!
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Safety instructions for the hedge trimmer WARNING! Before using this tool, please read these instructions of safety and use. It will help you to use safely the machine and reduce the risk of electrical shocks and accidents. If you give this tool to another person, also give this manual. - Page 3 c) While operating the hedge trimmer, always ensure that the operating position is safe and secure, especially when using steps or a ladder. d) Do not operate the hedge trimmer with a damaged or excessively worn cutting device. e) To reduce fire hazards, keep the engine and silencer free of debris, leaves and excessive lubricant. Always ensure that all handles and guards are fitted when using the hedge trimmer.
- Page 4 Do not use the tool during bad weather conditions and where a risk of lighting is possible. Use complete personal protective equipment during the use of the tool: gloves, antiskid footwear, helmet, eyes protection, protection clothes, and mask of protection. ...
- Page 5 service for repairs. Stop the tool before making adjustments, changing the accessories or storing the tool. Keep the tool out of the reach of children. People who are not familiar with the tool or who have not read these instructions should not use it. Tools are dangerous when used by untrained people. The tool must be regularly maintained.
- Page 6 Clean and maintain the tool before storage (see the chapters on this manual). Bring maintenance after each use according the instructions of this manual. Improper maintenance can reduce the lie of the tool, bring bad results and wear the tool and its accessories. Check the tool regularly and before each use to observe any impact or damage.
- Page 7 Read the instruction manual Guarantee noise level Do not smoke and do NOT use the tool near naked flame Warning! Cutting elements Caution: the accessible surface maybe hot when using the tool Wait until all machine components have completely stopped before touching them， Poisonous fumes or toxic gases Do not expose to rain or humidity No naked fire near the machine...
-
Page 8: Product Description
PRODUCT DESCRIPTION PARTS LIST 1- Engine unit 2- Control unit 3- Main pole 4- Handle 5- Connection 6- Shoulder strap 7- Pole Pruner head 8- Hedge trimmer head ENGINE 1. PARTS LIST 1 Engine unit 2 Spark plug 3 Recoil starter 4 Air filter assembly 5 Fuel tank 6 Wiring... -
Page 9: Technical Information
Guarantee sound power level: 111dB(A) Sound pressure level: 96,2 dB(A) Uncertainties K = 3 dB(A) Vibration Front handle: Idling: 8,303 m/s² Racing: 7,723 m/s² Rear handle: Idling: 7,737 m/s² Racing: 6,763 m/s² K = 1,5 m/s² Hedge trimmer Cutting length Cutting wide: 24mm;... -
Page 10: Getting Started
GETTING STARTED Handle assembly 1. Place the tool on a flat, solid and clean surface. 2. Place the handle holder under the rubber device on the tube. 3. Place the handle on the tube and align the holes. Screw the handle to the support. - Page 11 • Wipe all spilled fuel and move the product at least 3 meters (10 feet) from the fueling point before restarting! • Never smoke or light any fires near the product or fuels! • Never place any flammable material near the engine muffler! •...
- Page 12 right hand. See Fig. 10. - Gently pull the starter handle until you feel the starter engage. - Then quickly pull the starter handle to start the engine. - When the engine starts, open the choke by lowering the choke lever (ON position) (Fig.11) Important! Engine ignition is controlled by a two-position START-STOP switch mounted on the throttle body, typically labeled "T"...
- Page 13 WARNING! The cutting attachment will engage and rotate as the engine starts and accelerates. If the engine did not continue to run, repeat the appropriate cranking procedure (warm or cold engine). When the engine starts, clear excess fuel from the combustion chamber by revving the engine several times with the throttle trigger (operating the trigger will automatically disengage the "fast idle"...
- Page 14 1. Start the engine and allow it to idle two or three minutes, or until it warm Up. 2. If the cutting attachment rotates at engine idle, reduce idle speed by turning the idle adjusting screw counter clockwise as necessary. Important! Use a tachometer, if available, to set engine idle.
- Page 15 CAUTION! Do not operate the machine if the air cleaner or element is damaged, or if the element is wet or water soaked Every 10 hours of operation (more frequently in dusty or dirty conditions): Remove the air cleaner element from the air cleaner housing and clean it thoroughly. Rinse and dry thoroughly.
-
Page 16: Pole Pruner
POLE PRUNER 1. PARTS LIST 1. Guide bar 2. Chain 3. Oil tank 4. Oil Cap EF 5. Gear case 6.Chain cover 7.Tube 2. SPECIAL SAFETY INSTRUCTIONS CAUTION! Always maintain this pole pruner according to the owner's manual and follow the recommended scheduled maintenance. - Page 17 Never use this machine for any other purposes. Never try to cut stones, metals, plastics or any other hard objects. Using for other purposes than cutting branches may damage the machine or cause serious injury. Always wear eye and ear protection. Manufacturer recommends wearing a face shield as additional face and eye protection.
- Page 18 NOTE: For longest chain life, let new or replacement chain loops soak in oil overnight before installation Using the small end of the plug wrench, remove the sprocket cover nut (turn counterclockwise to remove) and remove the sprocket cover. See Fig.PP2 CAUTION! Failure to align the guide bar and chain tensioning pin can cause serious damage to the sprocket cover, guide bar, chain tensioning pin and cutting head assembly Place the guide bar over the guide bar adjustment stud on the cutting head assembly.
- Page 19 4. Guide bar 5. Chain tensioner hole 6. Guide bar adjustment stud Fig.PP4: 1. Bar Tip 2. Top of bar 3. Bottom of bar 3.1.3 Adjusting the Chain WARNING! Never attempt to install, replace, or adjust the chain with the engine running WARNING! The saw chain is very sharp.
- Page 20 1. Chain tensioning screw 3.2 Chain Oiler WARNING! Never fill the oil reservoir nor adjust the oiler with the engine running IMPORTANT: The service life of the chain and guide bar is affected by the chain and guide lubricant. Using superior lubricant such as genuine Bar and Chain Oil will help ensure a long service life. For cold weather operation, mix bar and chain oil with an equal part of kerosene.
-
Page 21: Operation
• Counterclockwise - increase lubrication 1. Oil reservoir 2. Oil flow adjusting screw CAUTION! The oil flow adjusting screw must be pressed in slightly in order to turn. Failure to do so could damage the Pump and screw. 3.3 Wearing the Strap (see BC7) 1. -
Page 22: Maintenance
8.4. STANDARD CUT (Fig. PP10) The most convenient working position is a tool angel of 60° , but any other angle may be used to suit the situation concerned. CUTTING ABOVE OBSTACLES (Fig. PP11) Thanks to the unit's long reach it is possible to prune branches that are overhanging obstacles, such as rivers or lakes. -
Page 23: Sharpening The Chain
1. Remove and clean the cylinder cover and clean dirt and debris from the cylinder cooling fins. 2. Remove the sprocket cover and inspect the sprocket for excessive dirt, debris, or wear. Remove the guide bar and clean out the guide bar groove. If the sprocket is excessively worn, replace it with a new one. -
Page 24: Hedge Trimmer
Using a 4.5mm round file, sharpen all cutters to a 30° angle. Make sure that one fifth (20%) of the file's diameter is always held above the cutter's top plate. NOTE: For consistent filing angles, use a filing guide. After all cutters are sharpened; use a depth gauge joiner to measure the height of each depth gauge. - Page 25 2. Never modify or disable any of the hedge trimmer's safety devices. 3. Always use genuine machine parts and accessories when repairing or maintaining this 4.Do not make unauthorized modifications to the articulated hedge trimmer. 5.When transporting the hedge trimmer in a vehicle, tie it down securely to prevent fuel spillage or damage to the machine.
- Page 26 Using for other purposes than trimming hedges may damage the machine or cause serious injury. Always wear eye and ear protection. Manufacturer recommends wearing a face shield as additional face and eye protection. Secure long hair above shoulder level. Always wear a hard hat to reduce the risk of head injuries during operation of this machine. Wear non slip heavy-duty work gloves to improve your grip on the trimmer handle.
- Page 27 WARNING! The cutter blades are very sharp. Do not grasp the blades with your hands. Do not brush the blades against your body. Never run the engine or operate the articulating hedge trimmer when the cutter assembly is in the storage/ transport position.
- Page 28 3.2.3. Cutter assembly for storage or transportation WARNING! Never run the engine when adjusting the cutter assembly to the storage position 1. With the engine stopped, install the cover onto the blade. 2. Using the procedures described on the previous page, rotate the cutter assembly so it is parallel to the tube.
- Page 29 5. Never stand directly underneath the branch you are cutting-be wary of failing branches. Note that a branch may spring back at you after it hits the ground. 4. OPERATION 4.1. Intended use - The product is intended for domestic use. - The product is intended for trimming hedges 4.2.
- Page 30 5. MAINTENANCE 5.1. Daily maintenance WARNING! Always wear gloves when working around the cutter assembly. Clean any debris or dirt from the hedge trimmer cutter blades. Lubricate the blades before use and after refueling. Check the cutters for damage or incorrect adjustment. ...
- Page 31 CAUTION! Over-lubricating can cause the gear case to operate sluggishly and can cause grease to leak out. 5.3. 50-Hour Maintenance Every 50 hours of operation (more frequently in dusty or dirty conditions): 1. Remove and clean the cylinder cover and clean the dirt and debris from the cylinder cooling fins. 2.
- Page 32 Before any intervention on product, ensure that motor is off. 6.1. General Product Maintenance Clean plastic parts with a soft clean cloth. Do not use aggressive cleansers (solvents or abrasive cleansers), or an abrasive sponge or sharp objects. Do not put or immerse product in water or any other liquid. 6.2.
-
Page 33: Troubleshooting
TROUBLESHOOTING Problems Causes Resolutions The starting process is not Follow the instructions of use of this followed manual The tool cannot be started Spark plug dirty or moist Clean the spark plug or replace it by a new Incorrect carburettor adjustment Contact your dealer or contact SWAP Non-correct setting of the starter... -
Page 34: Declaration Of Conformity Eu
ZI, 32 RUE ARISTIDE BERGES 31270 CUGNAUX, FRANCE Tel: +33 (0)534.502.50 Fax: +33 (0)534.502.503 Declares that the machines: Petrol multi-tool 52 cm³ - 2 in 1 RAC432KIT Serial No.: 20220601251-20220603050 the people name holding the technical file：M. Olivier Patriarca have been designed in compliance with the following standards:... -
Page 35: Warranty
WA R R A N T Y WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 36: P R O D U C T Fa I L U R E
P R O D U C T FA I L U R E WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 37: Warranty Exclusions
WA R R A N T Y E X C L U S I O N S THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. •... - Page 38 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2022...
