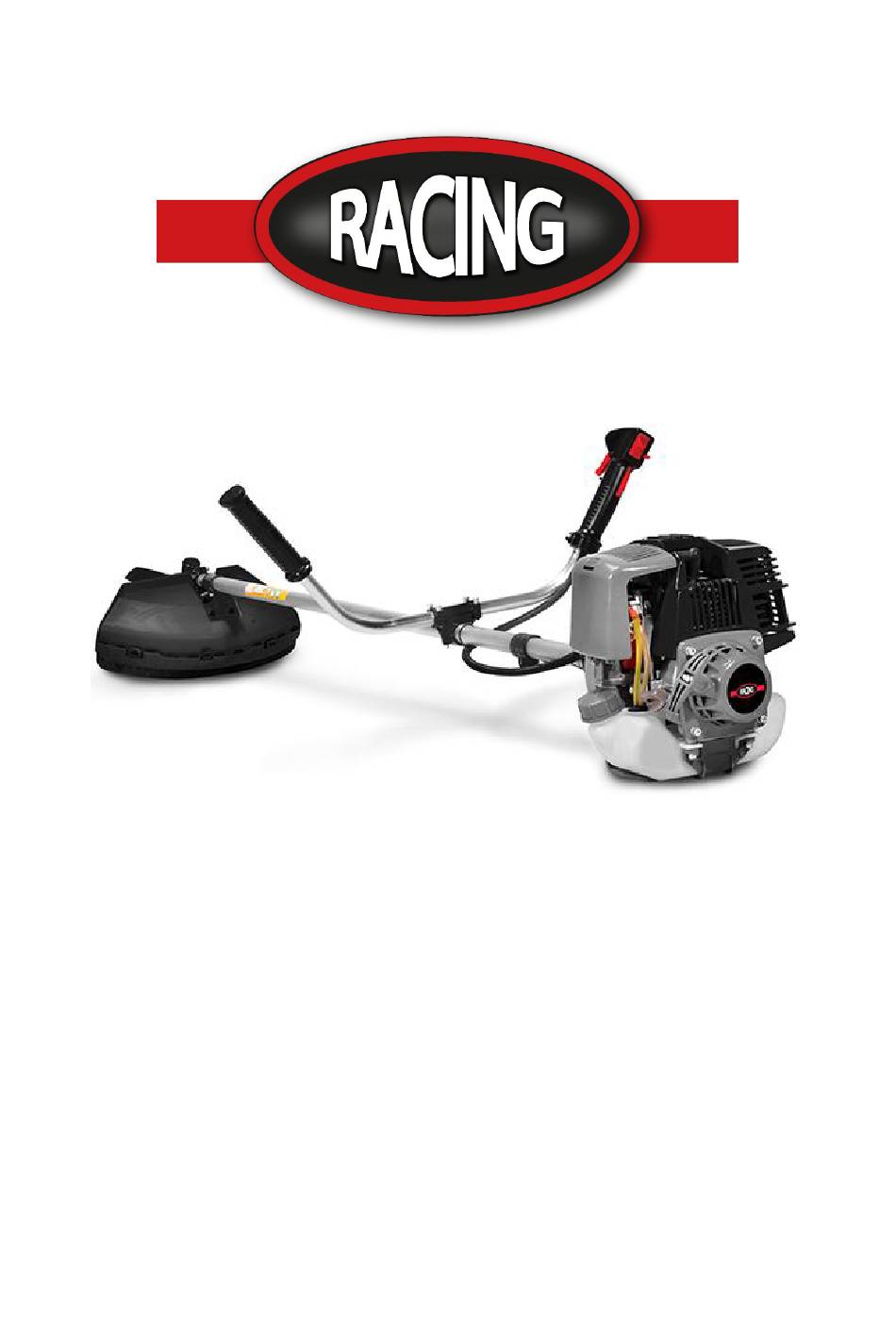

- Page 1 ORIGINAL INSTRUCTIONS >EN PETROL BRUSH CUTTER & GRASS TRIMMER RACD314T-A INSTRUCTION MANUAL CAUTION: Read the instructions before using the machine !
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. YOUR PRODUCT..........................8 3. TECHNICAL DATA..........................8 4. ASSEMBLY............................9 5. FILLING OIL TANK AND FUEL TANK................... 12 6. OPERATION............................13 7. MAINTENANCE AND STORAGE....................15 8. DECLARATION OF CONFORMITY....................17 9. WARRANTY............................18 10. PRODUCT FAILURE........................19 11. -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS Proper safety precautions must be observed. Like all power equipment this unit must be handled carefully. DO NOT EXPOSE YOURSELF OR OTHERS TO DANGER. Follow these general rules. Do not permit others to use this machine unless they are thoroughly responsible and have read and understand the machine manual and are trained in its operation. - Page 4 engine is running or hot. When gasoline spills, be sure to wipe it up completely dispose of those materials before starting the engine. Stay clear of other workers or bystanders by at least 15 meters/50 feet. Whenever approaching an operator of the machine, carefully call his attention and confirm that the ...
- Page 5 Do not store in a closed area where fuel vapors can reach an open flame from hot water heaters, furnaces, etc. Store in a locked, well-ventilated area only. Never place the machine in any places where there are flammable materials (dry grass, etc.), combustible ...
- Page 6 Explanation of symbols Warning symbol. Read instructions manual. Wear protective equipment: hearing protection, eye protection, and helmet. Wear protection gloves. Wear protective footwear. Caution to exhaust gases. Do not expose to rain. Do not smoke and use the tool near naked flame. The accessible part are hot when operate the tool.
- Page 7 Warning! Cutting elements. Cutting attachment speed. Cutting attachment speed. Guarantee sound power level. Do not use saw blades. Residual risks Even if you use this tool correctly, there are always residual risks. The following hazards may arise in connection with the structure and manufacture of this power tool: Hearing impairment if no suitable hearing protection is worn.
-
Page 8: Your Product
2. YOUR PRODUCT a. Description Recoil starter handle Shield Spark plug Shoulder strap ON/OFF switch Throttle trigger Handlebar Oil dipstick Coupler Fuel tank Shaft Choke lever Blade Primer bulb 3. TECHNICAL DATA Engine displacement 31cm³ Maximum rotational frequency of the spindle 9500/min Maximum power 0,8kW / 6500/min... -
Page 9: Assembly
Grass trimmer: Max: 8,254 m/s², K=1.5 m/s² Measured sound pressure level LpA Brush cutter: Idling: 82.2dB(A) K= 3dB(A) Racing: 102,4 dB(A) K= 3dB(A) Grass trimmer: Idling: 92.1dB(A) K= 3dB(A) Racing: 107.6dB(A) K= 3dB(A) Measured sound power level LwA Brush cutter: 107.4dB(A) K= 3dB(A) Grass trimmer: 108.2dB(A) K= 3dB(A) - Page 10 c) Installation of the carter of protection Place the carter on the shaft; be sure that the position is correct (see below picture). Screw the carter with the 4 provided screws. d) Installation of the nylon cutting head (for grass trimmer operation) Insert a metal locking tool into the hole on the side of the drive gear and on the tool drive.
- Page 11 To disassemble the cutting head, insert a metal locking tool through the hole on the side of the drive sprocket and on the drive shaft. Unscrew the cutting head to remove it. e) Installation of metal blade (for brush cutter operation) Insert a metal locking tool into the hole on the side of the drive gear and on the tool drive.
-
Page 12: Filling Oil Tank And Fuel Tank
5. FILLING OIL TANK AND FUEL TANK a) Fuel Warning: Gasoline is highly flammable. Keep the fuel in specially designed cans. Only fill the tank outside and do not smoke during the operation. Avoid sparks or open flames near the fuel. -
Page 13: Operation
Pour the oil in the tank. Do not overfill. Close the tank. Wipe off all overfill oil. Information Recommended oil: We recommend the use of high-quality detergent oil classified for SF, SG, SH, SJ or higher. Do not use special additives. External temperatures determine the correct oil viscosity for the engine. - Page 14 The choke lever must be kept in the open position. . If it is not the case, restart the machine by performing a cold starting. Pull the starter cord until the engine starts. Allow engine to warm up for a few minutes before using. Push the safety switch then the throttle trigger to start the operation Stopping the tool Release the throttle trigger and the throttle trigger lockout.
-
Page 15: Maintenance And Storage
Brushcutter operation Do not the brushcutter for cutting trees Do not cut with dull, cracked or damaged meal blade. Before cutting growth, inspect for obstructions such as boulders, metal stakes or strands of wire from broken fences. If an obstruction cannot be removed, mark its location so that you can avoid it with the blade. - Page 16 Clean or replace the spark plug in case of ozone contamination. Replace the spark plug if the end of the center electrode is worn. e) Handling and transport The engine should be turned off when the unit is moved between work areas. After the engine has stopped, the muffler is still hot.
-
Page 17: Declaration Of Conformity
ZI, 32, rue Aristide Bergès – 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 declares that the machine: PETROL BRUSH CUTTER & GRASS TRIMMER RACD314T-A Serial No: 20231231640-20231233699 the people name holding the technical file：Mr. Olivier Patriarca have been designed in compliance with the following standards:... -
Page 18: Warranty
9. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 19: Product Failure
10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 20: Warranty Exclusions
11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 21 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC...
