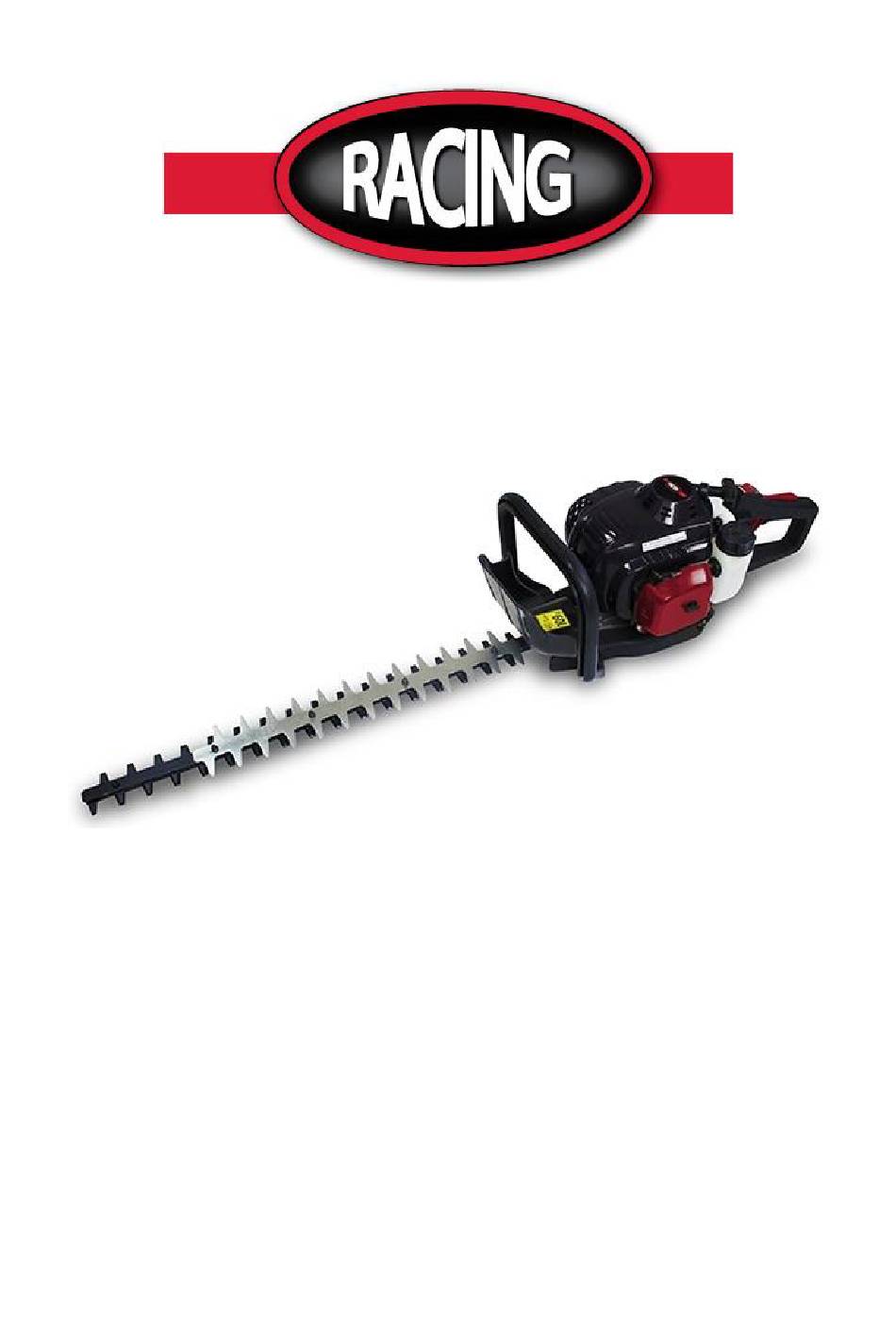

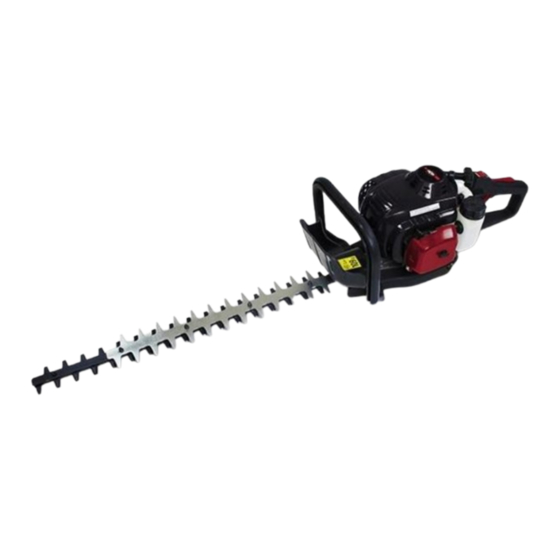

- Page 1 ORIGINAL INSTRUCTIONS >EN PETROL HEDGE TRIMMER RAC27PHT-1 USER GUIDE WARNING: Read thoroughly the instruction manual before using.
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. YOUR PRODUCT..........................5 3. FILLING WITH FUEL..........................7 4. OPERATION............................8 5. MAINTENANCE AND STORAGE....................12 6. DECLARATION OF CONFORMITY....................13 7. WARRANTY............................14 8. PRODUCT FAILURE.......................... 15 9. WARRANTY EXCLUSIONS......................16... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS WARNING! Before using this tool, please read these instructions of safety and use. It will help you to use safely the machine and reduce the risk of electrical shocks and accidents. If you give this tool to another person, also give this manual. Use this tool as described in this manual. - Page 4 Do not work under the rain and/or in places wet and/or slipping. Do not expose to the rain. Do not use the tool during bad weather conditions. Use complete personal protective equipment during the use of the tool: gloves, antiskid footwear, helmet, eyes protection, protection clothes, mask of protection.
-
Page 5: Your Product
Always be vigilant when using this product, so you can recognize and manage the risks rather. Rapid intervention can prevent serious injury and property damage. There are harmful health consequences resulting from the emission of vibrations if the product is used for long periods of time or not properly managed and properly maintained. There is risk of injury and property damage due to attachments or broken the sudden impact of hidden objects. - Page 6 Engine Throttle trigger Blade Recoil starter Handle Locking knob Front handle RUN/STOP button Fuel tank Hand protection Throttle trigger lockout Air filter compartment Cover blade protection Rear handle Choke lever The tool is also provided with a bottle for fuel/oil mixture and wrenches. b.
-
Page 7: Filling With Fuel
Gross Weight 7 kg Sound pressure level LpA : 86.5 dB(A) ; K = 3 dB(A) Sound power level LwA : 106.5 dB(A); K = 2.14 dB(A) Level of sound power guaranteed LwA : 109 dB(A) Handlebar level of vibration Rear handle 4.956 m/s²... -
Page 8: Operation
Wipe the tank and the engine of any possible gasoline traces. Close the fuel tank with its cap. 4. OPERATION Use this device only when you are absolutely sure to control all the functions of it well. In case of doubts, read again this handbook or inform yourself near a qualified person and/or your retailer. - Page 9 Put the hedge trimmer on a flat and stable ground. Vigorously pull 4 or 5 times the recoil starter until obtaining the starting of the engine. - If engine starting is not obtained, put the choke lever on the position and pull again the recoil handle 4 or 5 times and until the tool starts.
- Page 10 c. Warm start of the engine Put the RUN/STOP switch on the position RUN Put the choke lever on the position Pull on the recoil handle to obtain starting. Push and hold throttle trigger lockout (1) and then push the throttle trigger (2).
- Page 11 d. Shutdown Release throttle trigger switch and the throttle trigger lockout. Put the RUN/STOP switch on STOP. e. Cutting techniques Position a hand on the rear handle so as to press on the lever of safety and the other hand on the front handle.
-
Page 12: Maintenance And Storage
Do the same operation to put the handle on the original position. NOTE: This operation must be done the tool switched off. 5. MAINTENANCE AND STORAGE Before any maintenance operation on the material turn off the engine with the STOP button and withdraw the spark plug cap. -
Page 13: Declaration Of Conformity
Tel : +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 declares that the machines: PETROL HEDGE TRIMMER Model: RAC27PHT-1 Serial No.: from 20250118366 to 20250118703 the people name holding the technical file：Mr. Olivier Patriarca have been designed in compliance with the following standards:... -
Page 14: Warranty
7. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 15: Product Failure
8. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 16: Warranty Exclusions
9. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 17 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France MADE IN PRC...
