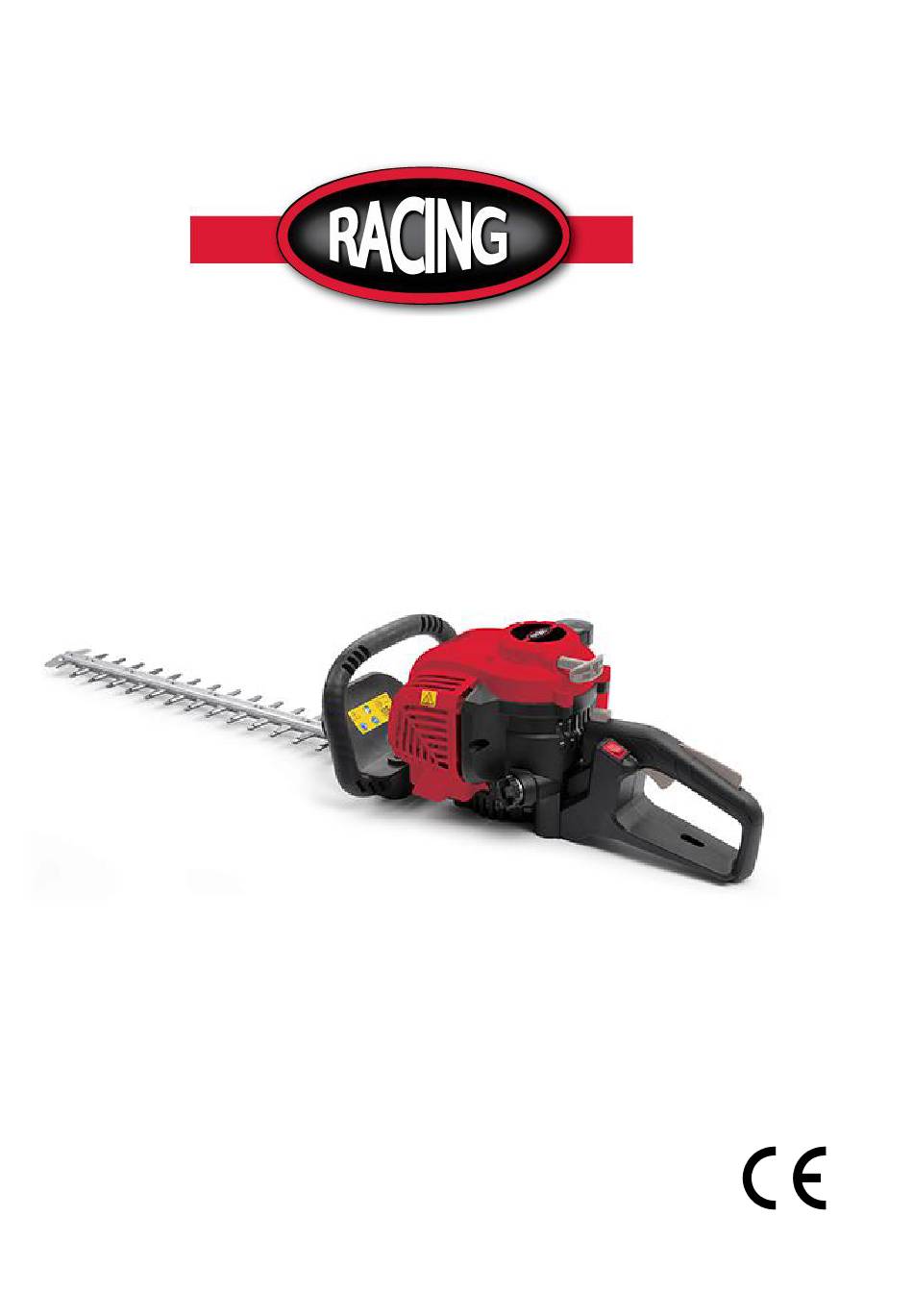

- Page 1 ORIGINAL INSTRUCTION INSTRUCTION MANUAL PETROL HEDGE TRIMMER RACTHT264 READ THIS INSTRUCTION MANUAL BEFORE USE. KEEP THIS MANUAL FOR FUTUR REFERENCE BUILDER SAS ZI, 32 RUE ARISTIDE BERGES 31270 CUGNAUX, FRANCE MADE IN PRC 2020...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS 2. YOUR PRODUCT 3. UNPACKING 4. OIL AND FUEL FILLING 5. OPERATION 6. MAINTENANCE AND STORAGE 7. TROUBLESHOOTING 8. CE DECLARATION 9. WARRANTY 10. PRODUCT FAILURE 11. WARRANTY EXCLUSIONS... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS IMPORTANT Read carefully before use Keep for future reference Safe operating practices Training Become familiar with the owner’s manual before attempting to operate the equipment. Preparation a) THIS HEDGE TRIMMER CAN CAUSE SERIOUS INJURIES. Read the instructions carefully for the correct handling, preparation, maintenance, starting and stopping of the hedge trimmer. - Page 4 checking, carrying out maintenance or working on the hedge trimmer, adjusting the working position of the cutting device, Leaving the hedge trimmer unattended. b) Ensure that the hedge trimmer is correctly located in a designated working position before starting the engine.
- Page 5 Do not work in the rain and / or in damp and / or slippery places. Do not use the tool in bad weather and when there is a risk of thunderstorms. Use protective equipment when using the tool: protective gloves, non-slip shoes, helmet, and eye protection, hearing protection, protective clothing and a protective mask.
- Page 6 Use anti skidding shoes of work and be maintained quite assured on its two legs. Wear protective gloves for any intervention on the blade. Wear ear protection Wear head protection. Wear eyes protection. Caution: do not touch the muffler. He is very hot. Guaranteed noise level Do not expose to fire Do not smoke...
-
Page 7: Your Product
2. YOUR PRODUCT a. Description Choke Button Throttle Primer Bulb On/Off Switch Fuel Tank Cap Oil Tank Cap Starter Grip Muffler Throttle Lockout Protective Cover... - Page 8 Technical data Model RACTHT264 Engine type Air-Cooled,4-Cycle Displacement 26.5 cm³ Spark plug gap 0.6-0.8mm Rated input power 0,65 kW No-Load speed 7000/min Lubrication SAE 10W-40 Crankcase lubrication capacity 60ml Fuel type Unleaded gasoline Fuel tank capacity 280ml Cutting length...
-
Page 9: Unpacking
3. UNPACKING Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. Inspect the product carefully to make sure no breakage or damage occurred during shipping. Do not discard the packing material until you have carefully inspected and satisfactorily operated the product. -
Page 10: Oil And Fuel Filling
OIL AND FUEL FILLING CAUTION: Attempting to start the engine before it has been properly filled with lubricant will result in equipment failure not covered by the warranty. Engine lubricant has a major influence on engine performance and service life. This engine is shipped without engine lubricant. - Page 11 WARNING: Remove the fuel cap slowly to avoid injury from fuel spray. Never operate the unit without the fuel cap securely in place. WARNING: Add fuel in a clean, well-ventilated outdoor area. Wipe up any spilled fuel immediately. Avoid creating a source of ignition for spilled fuel.
-
Page 12: Operation
5. OPERATION WARNING: Engine housing can become hot during operation. Do not rest or place your arm, hand, or any body part against the engine housing. Extended contact with the engine housing can result in burns or other injuries. WARNING Always position the unit on the operator’s right side. - Page 13 Place the unit on a firm, level surface. Push down on the front handle to securely hold the unit in place. Pull the starter grip /cord until resistance is detected. Rapidly pull 3 to 5 times or until you hear engine turn over or begin to start. If engine does not start, release choke by squeezing throttle trigger and the choke button Primer Bulb...
- Page 14 CLEARING JAMS If the blades get jammed by a wire or other obstruction and can’t move, follow these important safety rules: • NEVER reach for, or try to remove, jammed material while the engine is running. • ALWAYS switch the unit off and disconnect the spark plug wire before clearing a jam. •...
- Page 15 Use of the revolving handle - Push and hold the cutting position adjustment button. Turn the rear handle to change the cutting position. - The rear handle can be swiveled to 3 positions, center, left 90°, or right 90° - Do the same operation to put the handle on the original position. NOTE: This operation must be done the tool switched off.
-
Page 16: Maintenance And Storage
6. MAINTENANCE AND STORAGE When servicing, use only identical replacement parts. Use of any other parts could create a hazard or cause product damage. NOTE: Users are not allowed to set the carburettor or ignition, if further assistance is required, take the unit to a qualified service dealer WARNING: To avoid serious personal injury, always stop the engine and allow it to cool before cleaning or maintaining... - Page 17 MAINTENANCE SCHEDULE Item Hours of Operation Check engine oil level Check for loose/lost fasteners Check for damage Every time before use Verify function of control elements Check fuel level Check for fuel/oil leaks Engine oil replacement Every 20 hours Lubricate blades Every 5 hours Sharpen blades Every 20 hours...
- Page 18 CLEAN AIR FILTER The air filter element should be cleaned to provide the engine abundant clear air which aids in starting, power, and life time of the engine Open the air filter: press the button localized on the side of the cover to open it. If only cleaning of the air filter is necessary, take the air filter pad out and clean it with dry compressed air until all dust is removed.
- Page 19 • If the engine stops, increase the idle speed. Use a small screwdriver to turn the idle speed screw clockwise, 1/8 of a turn at a time, until the engine idles smoothly. • If the cutting blades move when the engine idles, reduce the idle speed. Turn the idle speed screw counterclockwise, 1/8 of a turn at a time, until the cutting blades stop moving.
- Page 20 Long-term Storage Remove the fuel cap, tip the unit and drain the fuel into an approved container. Reinstall the fuel cap. Start the engine and allow it to run until it stalls. This ensures that all fuel has been drained from the carburetor.
-
Page 21: Troubleshooting
7. TROUBLESHOOTING PROBLEM SOLUTION THE ENGINE WILL NOT START The fuel tank is empty Fill the fuel tank with fresh fuel The primer bulb was not pressed enough Press the primer bulb 10 times The fuel is old (over 30 days) Drain the fuel tank and add fresh fuel The spark plug is fouled Replace the spark plug... -
Page 22: Ce Declaration
BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux – France Tel : +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 declares that the machines: PETROL HEDGE TRIMMER RACTHT264 Model: Serial No.:XXXXXXXXXX-XXXXXXXXXX the people name holding the technical file：Mr Olivier Patriarca... -
Page 23: Warranty
9 . WA R R A N T Y WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 24: Product Failure
1 0 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 25: Warranty Exclusions
1 1 . WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
