DUMP TARP ROLLER KIT
MODEL: WBS008
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR WBS008
Summary of Contents for VEVOR WBS008
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support DUMP TARP ROLLER KIT MODEL: WBS008 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS WARNING: Read and understand this manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury or damage to valuable property. 1. While assembling and using this product, keep the work area clean and well lighted, and keep spectators and children out of the work area. -
Page 4: Parts List

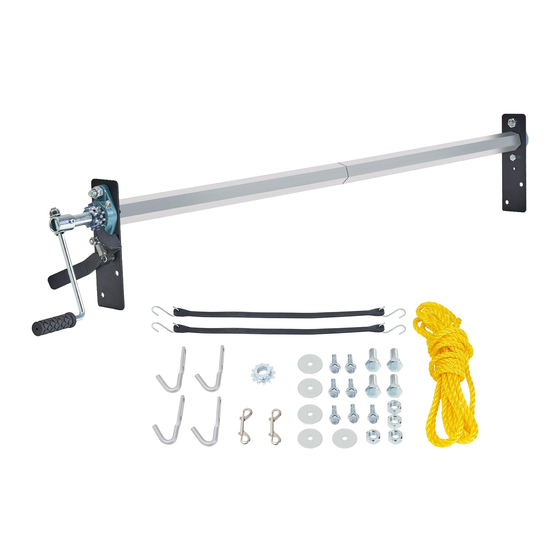

PARTS LIST Inner Hex Tube (A) Outer Hex Tubes (B1/B2) Bearing Brackets (C1/C2) Hand Crank with Detent (D) Pull Rope (E) Bolts/Screws (F) Bungees and Hooks (G) Trap (H) -
Page 5: Assembly And Installation
ASSEMBLY & INSTALLATION 1. Determine where you would like to place the tarp roller on your dump truck. We recommend mounting the roller outside the dump body’s load area to prevent damage from loading the dump truck’s body. You’ll also want to place the roller where the winder is easily accessible. - Page 6 complete roll tube assembly is 1/4” less than the distance between mounting brackets. Reference your pencil marking to verify the inner hex tube (A) is centered inside the outer roll tube assembly (B1/B2). If it is centered, screw each roll tube assembly to the inner hex tube using a 1/4” x 1”...
-
Page 7: Maintenance
10. Take the sprocket and assemble it onto the 1” shaft on the driver's side of the roll tube assembly. Ensure the detent lever (D) is in the open position, and slide the sprocket down the shaft until it's tight against the bearing. 11. - Page 8 Technical Support and E-Warranty Certificate www.vevor.com/support Made In China...
