Gree GMV-VQ280WM/C-X Owner's Manual page 39

GMV Heat Recovery DC Inverter VRF

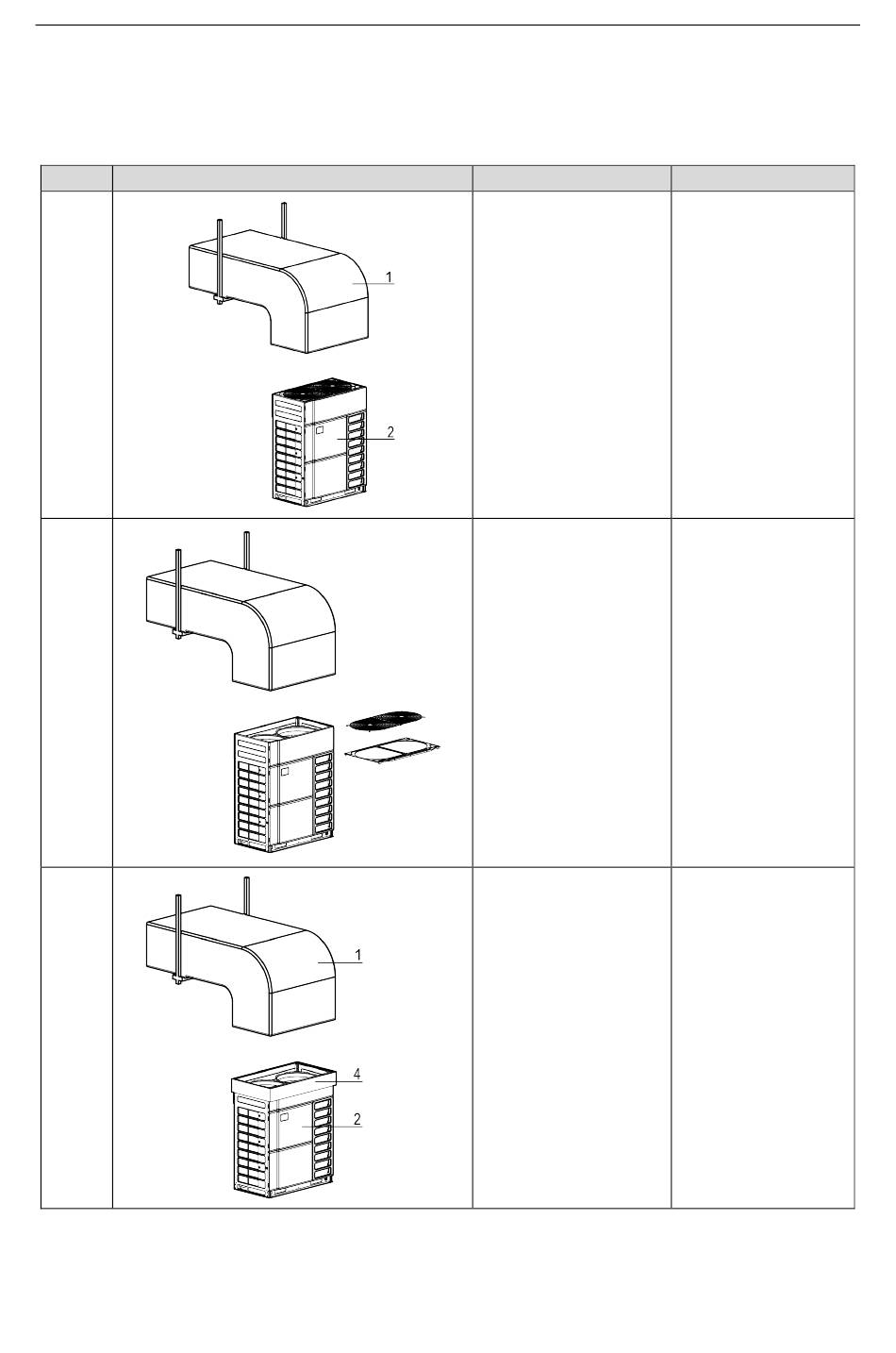

NOTE: In the following table, "1" indicates the steel plate ventilation pipe, "2" indicates the
outdoor unit, "3"indicates the top cover assembly, "4" indicates the canvas casing and "5" indicates
the steel bar.
The specific operations are as below:
Step
Step 1
Step 2
Step 3
35
Operation instruction
① Select installation
position for the outdoor
unit and then fix it well;
② Determine the
installation position of
the ventilation pipe
according to the
position of the outdoor
unit;
③ Refer to the left figure
to complete the
fabrication and
installation of the
ventilation pipe.
① Remove the
self-tapping screws
around the top cover
assembly with
screwdriver and then
remove the top cover
assembly.
② Remove the grille on
the top of the top cover
assembly.
Face the inside of the
prepared canvas casing
outwards, cover it from
the top of the unit until the
end of the canvas is flush
with the unit or slightly
higher than the unit.
Note
① Ventilation pipe
material: steel plate
or iron sheet;
② Ventilation pipe
should be purchased
by the user.
The top cover grille
must be removed;
otherwise it will affect
the air volume and the
operation effect.
—
