2.2.2 Combinations of Indoor and Outdoor Units

(1) The following table indicates the number of IDU for ODU：
ODU model
GMV-VQ224WM/C-X
GMVVQ-280WM/C-X
GMV-VQ335WM/C-X
GMV-VQ400WM/C-X
GMV-VQ450WM/C-X
GMV-VQ504WM/C-X
GMV-VQ560WM/C-X
GMV-VQ615WM/C-X
GMV-VQ680WM/C-X
GMV-VQ730WM/C-X
GMV-VQ785WM/C-X
GMV-VQ850WM/C-X
GMV-VQ900WM/C-X
GMV-VQ960WM/C-X
GMV-VQ1010WM/C-X
GMV-VQ1065WM/C-X
GMV-VQ1130WM/C-X
GMV-VQ1180WM/C-X
GMV-VQ1235WM/C-X
GMV-VQ1300WM/C-X
GMV-VQ1350WM/C-X
(2) The total capacity of indoor units should be within 50%~135% of that of outdoor units.
(3) Outdoor units of Gree Heat Recovery DC Inverter VRF System can be connected to multi
VRF indoor units, including cassette type unit, one-way cassette type unit, wall-mounted unit
and duct type unit. When any one of the indoor units receives operating command, outdoor
unit will start operation as per required capacity. When all indoor units stop, outdoor unit will
be shut off. Please note that outdoor unit can't be connected to indoor unit directly. Heat
pump mode exchanger must be installed between outdoor unit and indoor unit.

2.3 Names of Main Parts

Max number of connectable
IDU (unit)
13
16
19
23
26
29
33
36
39
43
46
50
53
56
59
63
64
64
64
64
64

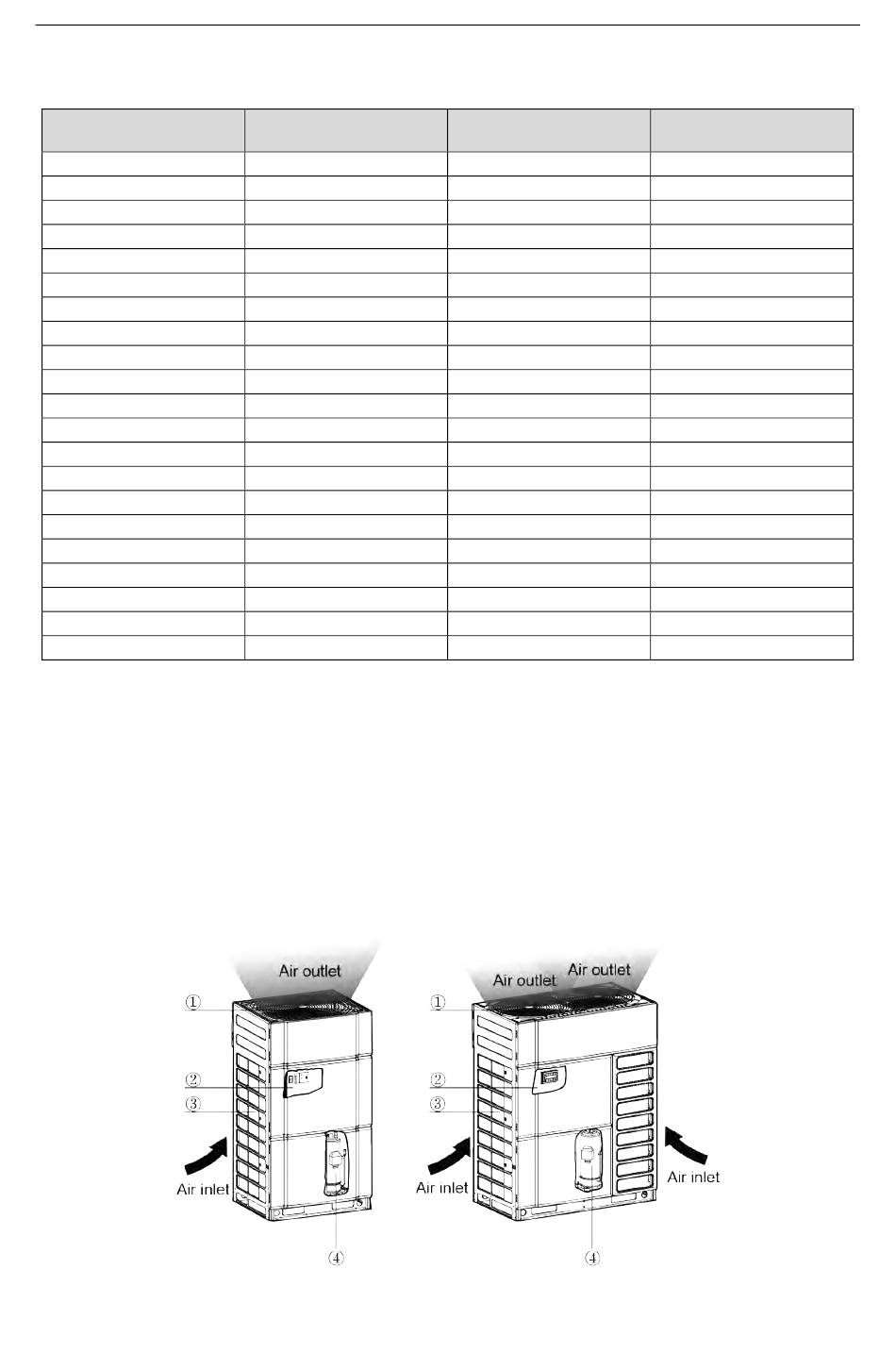

Fig.2.3.1
