Arkon FLBKMAGHLXL Manual

FLBKMAGHLXL | Magnetic Mount with Barcode Scanner Holster Holder
SPHLSTRXL

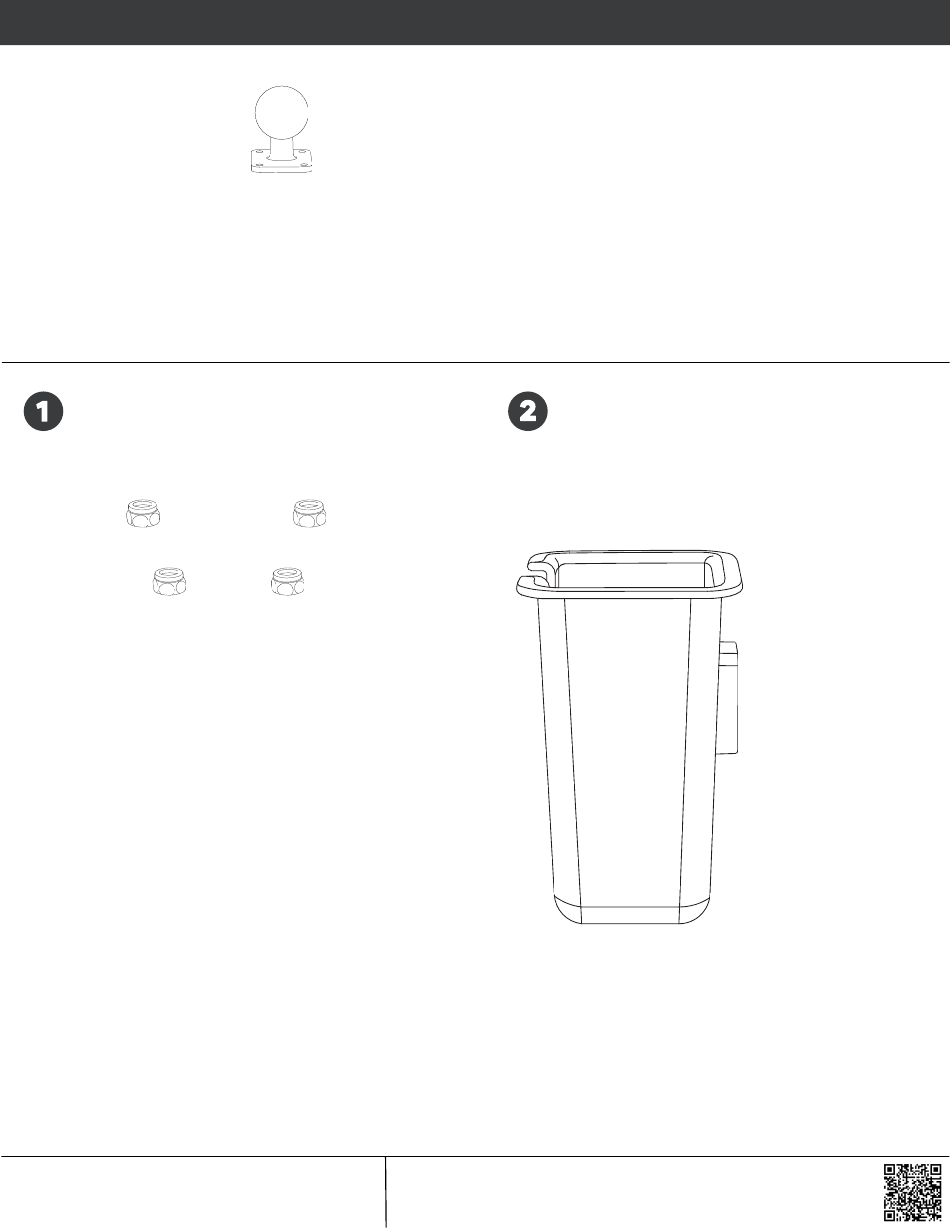

Install the 38mm AMPS Adapter Ball Plate to the Magnetic Base
Line up the 38mm AMPS adapter ball with the magnet base. Once
properly aligned, insert the nuts that came with the magnetic base's
packaging and tighten them securely in place.
WARNING
CHOKING HAZARD - Keep out of reach from children under 8 yrs. as they can choke or suffocate on parts included with this system
WARNING
Arkon ® is not responsible for any damages caused to your device or yourself due to the installation or use of this mount. Do not install Arkon
of vehicles. Arkon ® assumes no responsibility or liability for injury or death as a result of failure to install in a safe location. Arkon
product, or people due to the installation or use of this product.
APMAMPS38MM
SPAMPSMAG88
SPRM38MM
Includes:
1 – Large Barcode Scanner Holster Holder
4 – Hardware
(M5-0.8 DIN 934 Steel Nylock Hex Nut)
4 – Hardware
(M5 x 18mm Pan Head Philips machine screw)
2 – Metal 4-Hole AMPS to 38mm Ball Adapter
1 – Robust™ Series 5-inch Mount Shaft Arm
1 – 88mm Heavy-Duty Magnetic Base
4 – Hardware
(M4-0.7 DIN 934 Zinc Finish Steel Hex Nut)
Important: Clean the application surface and make sure it is
free of dirt, dust, and grease before installing the
mounting hardware.
Attach the 38mm AMPS Adapter Ball Plate to the Barcode
Scanner Holster Holder
Place the 38mm AMPS adapter ball plate onto the back of the
holster holder, aligning it carefully. Secure the adapter plate by
inserting the screws that came with the holster's packaging.
USA (800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm PST
(SPHLSTRXL)
(APMAMPS38MM)
(SPRM38MM)
(SPAMPSMAG88)
® products near areas that intefere with operation
® is not responsible for any damages caused to vehicles,
Need assistance?
arkon.com
Scan to email our
Designed in USA
Arkon® customer
©Arkon Resources, Inc.
rev.022124
service team.
