- Page 1 LED PAR LIGHT GTD-L354P User’s Manual Guangzhou GTD Lighting Technology Co., Ltd. Tel: +86-20-61808296 Fax: +86-20-61812282 www.gtd-lighting.com http://...
- Page 2 © 2017 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
GTD-L354P User Manual Contents Safety instructions ..................................3 General guidelines ..................................4 Packing and shipping .................................. 5 Unpacking ....................................... 5 Packing after use..................................... 5 Accessories ....................................5 Product introduction .................................. 6 Installation ....................................7 Clamps installation ..................................7 Device installation ..................................7 Power / Control connection ............................... -
Page 4: Safety Instructions
GTD-L354P User Manual Safety instructions WARNING! Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual. -
Page 5: General Guidelines
Broken or damaged cables can only be fixed or changed by certified technicians, certified local distributors or the manufacturer to ensure operational safety. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured parts. ... -
Page 6: Packing And Shipping
GTD-L354P User Manual Packing and shipping Unpacking Notes All products are quality controlled and checked for any faults before they are dispatched to customers. If the fixture is damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim. -
Page 7: Product Introduction

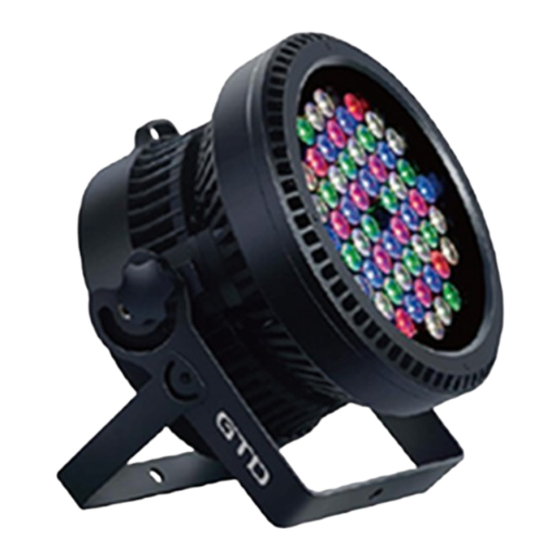

GTD-L354P User Manual Product introduction LED lens Head cover Arm bracket Cast-aluminum back cover Manually-adjustable screw Safety cable mounting position Display screen DMX output Power output 10 DMX input 11 Power input 12 Mounting hole... -
Page 8: Installation
GTD-L354P User Manual Installation Clamps installation The fixture can be placed on the stage or mounted on the truss facing any direction. The clamp can gives a quick and easy lock on the truss. Warning Use one clamp when mounting the fixture. Fasten the screw properly and connect a safety cable to fixture. -
Page 9: Control Connection
GTD-L354P User Manual Control connection The fixture has 5-pin XLR connectors for DMX data input and output (3-pin optional) as shown below. Connection between the console and fixture, and between fixtures must be made with 2 core screened DMX signal cable. Maximum connecting distance of signal cable is 150 meters. -
Page 10: Control Panel
GTD-L354P User Manual Control panel The control panel with buttons and digital display can access the function menu and configure the fixture easily. Press MENU to check or modify the functions of the fixture; Press UP or DOWN to view or select the function menu. -
Page 11: Menu Structure
GTD-L354P User Manual Menu structure L354P - Menu Structure Revision: A Valid from firmware version: 1.0 Level 1 Level 2 Level 3 Level 4 Info Addr AXXX A001 Setting the DMX address MSTR/ ALON Running build-in program as the master or the slave... -
Page 12: Dmx Protocol
GTD-L354P User Manual DMX protocol L354P - DMX Protocol Revision: B Valid from firmware version: 2.0 DMX mode Default Name DMX value Function Standard (14ch) Basic (9ch) percentage Value 0.0% 12.2% Closed 12.5% 24.7% Open 25.1% 49.8% Synchronous strobe from slow to fast... - Page 13 GTD-L354P User Manual DMX mode Default Name DMX value Function Standard (14ch) Basic (9ch) percentage Value 0.0% 9.4% No function 9.8% 13.7% 3200K 14.1% 18.0% 3400K 18.4% 22.4% 3600K 22.7% 26.7% 3800K 27.1% 31.0% 4000K 31.4% 35.3% 4200K 35.7% 39.6% 4400K 40.0%...
-
Page 14: Technical Specification
GTD-L354P User Manual Technical specification Optical Light source: LED 3W, quantity: 54pcs (12 red, 14 green, 14 blue, 14 white) Expected average lifetime: 50000 hours Lens angle: 15° (Standard); 8°/40°/60°(optional) Beam angle (10% peak angle): 22°(standard), 17°/40°/60°(optional) Photometric ... - Page 15 GTD-L354P User Manual Connections AC power: 1m (3.28 ft.) cable with water proof plugs (in/out) DMX data input/output: 2 x 1m (3.28 ft.) cable with 5-pin Neutrik IP65 XLR plugs (in/out) Certification and Safety EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013 ...
-
Page 16: Cleaning And Maintenance
GTD-L354P User Manual Cleaning and maintenance It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting. -
Page 17: Troubleshooting
GTD-L354P User Manual Troubleshooting Possible Cause Suggested Correction Problem Power switch not turned on. Turn on power switch. Locate the blown fuse. Remove the broken fuse. Insert a Take out the fuse and check if it is blown. replacement fuse of the correct amperage. -
Page 18: System Wiring Diagram
GTD-L354P User Manual System wiring diagram LED Drive Thermosensitive LCR0521B Signal 56 V- LED Drive 56 V+ LJB0012A 3-pin water-proof male-line DMX Signal 3-pin waterproof female-line 24V+ DMX Signal Signal 24V- 56 V- SDI0104E Thermal 56V+ 24V+ 24 V- Power... - Page 19 GTD-L354P User Manual Notes: P/N: 1502011007B Time: December 19 , 2017...
