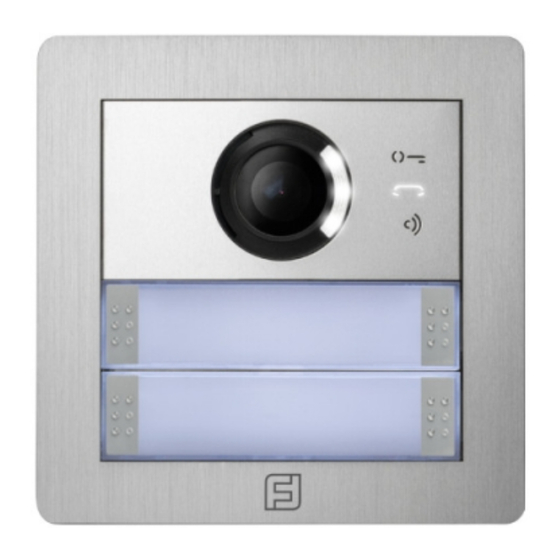

Farfisa PLUGGY+ Technical Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
PG+
EN
PG+
EN
Technical manual
up to 20 calls
2024
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PLUGGY+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Farfisa PLUGGY+

Summary of Contents for Farfisa PLUGGY+

  • Page 1 Technical manual up to 20 calls 2024...

  • Page 2: System Characteristics

    - driveway gate opening: available on door station via relay module supplied; maximum guaranteed distance with 2x1 mm2 section twisted pair (Farfisa cable art.2302 for indoor use or art.2302E for outdoor use: 100 metres from the outdoor station to the farthest monitor or intercom.
  • Page 3 PLUGGY + General index page 1SEPG+ nstallatIon dIagrams SEM7PG echnIcal specIfIcatIons he maIn menu all records ettIngs all on smartphone cVpg odIfyIng parameters CTPG SE7PG ntercommunIcatIng call aster slaVe cVpg parameters settIng SEIPG MULTI-FAMILY DIAGRAM MASTER/SLAVE DIAGRAMS...
  • Page 4 Art. 1SEPG+ AB20 AB21 CVPG SEM7PG PRSPG/1 MicroSD 83,5 mm 1,45m MicroSD 45 mm 122 mm 119 mm AB21 AB20 AB20 AB21...
  • Page 5 S E 1 = 1 2 V d c The icon LED will light up for a few seconds to SE1: 12Vcc - 1 Amax Farfisa 2302 cable CAT5 cable -1A max indicate that the single-family configuration has been 2x1mm² - AWG17 2x0,2mm²...
  • Page 6 Art. SEM7PG MicroSD Important: remove the protective film obstructing the microphone hole in the monitor. Otherwise there is no audio reception at the door station. [10] [11] MicroSD Parts and functionalities Description Digital LCD touch screen Display the visitors' picture. [10] [11] Show the power status of the system.
  • Page 7 The main menu. Toccando in un punto qualsiasi dello schermo del monitor in stand-by viene visualizzata la schermata (Home) del menù principale Intercom icon Call Record icon Monitor icon It allows to call other indoor station. It allows to view the call record. It allows to monitor the door stations, cameras.
  • Page 8 Other status icons. Icons Description Recording Indicates the device is recording Talking Indicates the device is in “talking” status. Unlock Indicates open the corresponding door. Answering a call. ing time for video footage is 3 seconds. - A list of entries is displayed. When a call is received, the monitor rings A maximum of 10 video footages can be 2.
  • Page 9 the call is diverted to the smart phone. default language of the monitor. Chang- T h e m o n i t o r d i s p l a y s t h e i m a g e Notes: ing the language is possible at any time.
  • Page 10 then go to "Manager". As in the following pictures, a ONVIF IP camera (H264, H265, maximum resolution 1080p) can be added, with automatic or manual search, which can be displayed both on the monitor screen and from the VDP Connect app. 3.
  • Page 11 Changing Door Station Parameters confirming with the tick button. Restart ensures that all changes T h e s e t t i n g s d e s c r i b e d i n t h i s made are fully operative.
  • Page 12 Art. CTPG click click AB72 SC2-SC3 AB73 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3...
  • Page 13 AB62 AB63 click click AB20 Braille AB21 The user address of each monitor must be configured in accordance with the addresses called by the external door station To change the user address of SEM7PG monitor, proceed as described in the following steps: With the monitor in standby, press the screen anywhere.
  • Page 14 Single-row call button configuration. In this case, it is necessary to configure parameters U013-U032, using the procedure indicated on the previous pages with SEM7PG or that indicated starting on page 22 in the paragraphs on programming with SE7PG. U013=U014=1 U015=U016=2 U017=U018=3 U019=U020=4 U021=U022=5...
  • Page 15 Art. SE7PG Colour videointercom for PLUGGY techno- 25mm 194mm logy Colour videointercom with 7.0” LCD screen for PLUGGY technology. Technical data 127mm Power supply: by the line 157mm Absorption: - in stand-by: 8 mA - in operation: 270 mA Screen: 7"...
  • Page 16 Selecting ring tones and setting the volume of the ring tone. When the monitor is switched off (system in standby), press the to switch the videointercom on. You can see the image shown in figure 2 below. Press the button again to access the configuration menu (see figure 3 below).
  • Page 17 Setting brightness, contrast, colour and voice volume When the monitor is switched off (system in standby), press the to switch the videointercom on. Press the key to activate the configuration mode, shown in the following figures for contrast, brightness, colour and volume respectively.
  • Page 18 Activation of intercom call functionality between appartments. When the monitor is switched off (system in standby), press the to switch the videointercom on. You can see the image shown in figure 2 below. Press the button again to access the configuration menu (see figure 3 below).
  • Page 19 Code 9015 must be entered. Start from the left: - using the keys enter the digit ‘9’ and press the - since the “0” in the second position is already present, press the key - using the keys enter the digit ‘1’ and press the - using the keys enter the digit ‘5’...
  • Page 20 Configuring the videointercom as ‘Slave" only in the case where there is more than Attention: one videointercom in the same appartment, any SE7PG videointercoms used as SLAVEs should be configured as described below. When the monitor is switched off (system in standby), press the to switch the videointercom on.
  • Page 21 Code 8001 must be entered for the first “Slave”, (8002/8003 for subsequent ‘Slaves’). Start from the left: - using the keys enter the digit ‘8’ and press the - since the “0” in the second position is already present, press the key - since the “0”...
  • Page 22 CVPG external door station parameters setting. The configurations described below relate to door station art.CVPG (audio/video module) and are only possible using the SE7PG monitor. Programming to be carried out in the case of multi-family installation. When the monitor is switched off (system in standby), press the button to switch the videointercom on.
  • Page 23 Code 2500 must be entered. Start from the left: - using the keys enter the digit '2' and press the - using the keys enter the digit '5' and press the - since the first "0" is already present, press the key - since the second '0' is already present, press the key After pressing the key for the last time, the monitor displays...
  • Page 24 Press the key 12 times. This takes you to page U012, “Calling Mode” as in figure 10 below. If the above page is exceeded by mistake, pressing the button causes the pages to be retraced backwards. x 12 times In the ‘Calling Mode’ screen use the keys to select the value: 0: “Building”...
  • Page 25 to configure the value 2 in Use the and keys parameter U015. Press the key . “Value’ shows the value that was set after the change. at end The image below shows the addresses configured for the call alla fine buttons to configure the value 2 in Use the and keys...
  • Page 26 Voice message activation. When the monitor is switched off (system in standby), press the button to switch the videointercom on. You can see the image shown in figure 2 below. Press the button again to access the configuration menu (see figure 3 below).
  • Page 27 Code 2500 must be entered. Start from the left: - using the keys enter the digit '2' and press the - using the keys enter the digit '5' and press the - since the first "0" is already present, press the key - since the second '0' is already present, press the key After pressing the key for the last time, the monitor displays...
  • Page 28 Press the key 1 time. This takes you to page U001, “Prompt Voice” as in figure 10 below. If the above page is exceeded by mistake, pressing the button causes the pages to be retraced backwards. x 1 time On the ‘Voice Prompt’ page, use the and keys to choose values: DS1 Para Settings Name: U001 Prompt Voice activation.
  • Page 29 Configuring the operating mode and activation time of the SE1 door lock release output When the monitor is switched off (system in standby), press the button to switch the videointercom on. You can see the image shown in figure 2 below. Press the button again to access the configuration menu (see figure 3 below).
  • Page 30 Code 2500 must be entered. Start from the left: - using the keys enter the digit '2' and press the - using the keys enter the digit '5' and press the - since the first "0" is already present, press the key - since the second '0' is already present, press the key After pressing the key for the last time, the monitor displays...
  • Page 31 Press the key 3 times. This takes you to page U003, “Unlock1 Mode” as in figure 10 below. If the above page is exceeded by mistake, pressing the button causes the pages to be retraced backwards. x 3 times On the ‘Unlock1 Mode’ page, use the keys to choose the desired value to assign to the parameter: contact normally open (factory setting),...
  • Page 32 Setting the switching on of the camera LEDs. When the monitor is switched off (system in standby), press the button to switch the videointercom on. You can see the image shown in figure 2 below. Press the button again to access the configuration menu (see figure 3 below).
  • Page 33 Code 2500 must be entered. Start from the left: - using the keys enter the digit '2' and press the - using the keys enter the digit '5' and press the - since the first "0" is already present, press the key - since the second '0' is already present, press the key After pressing the key for the last time, the monitor displays...
  • Page 34 Press the key 7 times. This takes you to page U007, “Night Light” as in figure 10 below. If the above page is exceeded by mistake, pressing the button causes the pages to be retraced backwards. x 7 times On the ‘Night Light’ page, use the keys to choose DS1 Para Settings Name: U007 Night Light...
  • Page 35 Art. SEIPG 97 mm 33 mm Intercom for PLUGGY technology Intercom with 2 buttons Technical data Power supply 24 Vdc by the line Stand-by absorption 2,1 mA Operating absorption 76 mA Operating temperature 0°÷+50°C Maximum permissible humidity 90%RH Terminals SW+/SW- Floor call input L1/L2 Line input...
  • Page 36 Operation. Call from external door station. When the visitor calls from the door station, the intercom rings, you pick up the handset to speak to the visitor, then press the release button to open the door. If the system connects 2 locks, press the release button to open the second door.
  • Page 37 Master/Slave setting (DIP2). When more than one internal station is installed in an appartment, they must use the same user address setting and also the Master/ Slave mode must be set. Dip-switches 1~2 of DIP2 are used to set the slave address or room number. After changing DIP2 dip-switches, power must be removed and then restored to the system.
  • Page 38 MULTI-FAMILY VIDEOINTERCOM SYSTEM Si 71VP/1 Internal stations How to programm What to programm Allowed addresses SE7PG Dip-switches User address SEIPG DIP 1 dip-switches User address 1-20 SEM7PG parameter “Call_Nbr” user address External door station How to programm What to programm CVPG See on page 5 Configure as Building...
  • Page 39 MULTI-FAMILY VIDEOINTERCOM SYSTEM Si 71VP/1 SE7PG LO LO 1 2 3 4 5 6 SE7PG LO LO 1 2 3 4 5 6 SE7PG LO LO 1 2 3 4 5 6 SE7PG LO LO DV2424Q 1 2 3 4 5 6 SE7PG LO LO 1 2 3...
  • Page 40 Wiring diagrams with master and slave internal stations. Two videointercoms in the same appartment. For this particular situation, it is possible to install only one SEM7PG (wi-fi monitor) which will, if required, be connected to the wi-fi net- work and will forward calls to the smartphone. The second monitor will necessarily have to be SE7PG, on whose dip-switches at the rear will be set the same address as the first monitor (in this particular case, it has been assumed that the SEM7PG’s “Call_Nbr”...
  • Page 41 → graphic project: Luca Carini → contents: Luca Carini Copyright © 2023: ACI Srl Via E. Vanoni, 3 60027 Osimo (AN) ITALY tel. (+39) 0717202038 info@farfisa.com www.farfisa.com Certified company quality management system. European mark of conformity with the requirements of EEC directives.
