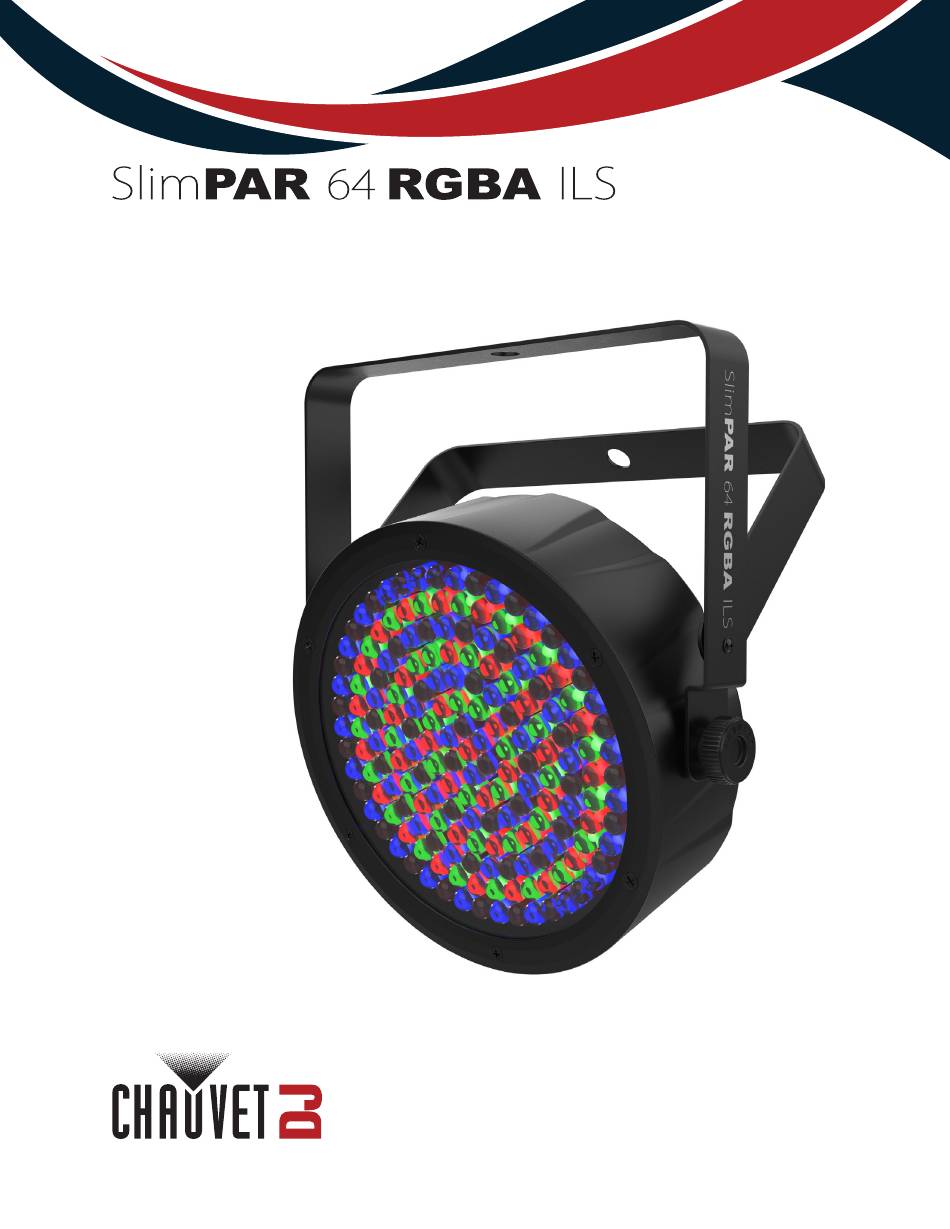

- Page 1 User Manual...
- Page 2 Edition Notes The SlimPAR 64 RGBA ILS User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the SlimPAR 64 RGBA ILS as of the release date of this edition. Trademarks Chauvet, Chauvet DJ, the Chauvet logo, and SlimPAR are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
Sound Sensitivity ..................... Custom Color Mixing ..................Wired Master/Slave Mode................D-Fi USB Master/Slave Mode ............... ILS Mode....................... 5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Contact Us ..................Warranty & Returns..................SlimPAR 64 RGBA ILS User Manual Rev. 1... -
Page 4: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. SlimPAR 64 RGBA ILS User Manual Rev. 1... -
Page 5: Safety Notes
Expose to rain or moisture. ♦ Use outdoors. ♦ Submerge. Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. SlimPAR 64 RGBA ILS User Manual Rev. 1... -
Page 6: Introduction
WARNING! DO NOT plug anything other than a D-Fi USB into the USB type B port. Doing so may cause damage to the product. Product Dimensions 11.1 in 282 mm 9.7 in 2.5 in 246 mm 64 mm SlimPAR 64 RGBA ILS User Manual Rev. 1... -
Page 7: Setup
It is possible to link up to 39 SlimPAR 64 RGBA ILS products on 120 VAC or up to 62 products on 230 VAC. The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, consult with the local Chauvet distributor as power linking connectors and requirements may differ by country or region. -
Page 8: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The SlimPAR 64 RGBA ILS may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming. -
Page 9: Operation
DMX_Primer_rev05_WO.pdf. Personality and Starting Address The SlimPAR 64 RGBA ILS uses up to 8 DMX channels in the 8-CH DMX mode, which defines the highest configurable address to 505. When selecting a starting DMX address, always consider the number of DMX channels the DMX mode uses. -
Page 10: D-Fi Usb Connectivity
D-Fi USB Connectivity The SlimPAR 64 RGBA ILS is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the product's DMX Personality and DMX Address, set the DIP switch D- Fi receiving/transmitting channel, then plug it into the D-Fi USB port. -
Page 11: Dmx Channel Assignments And Values
128 159 Automatic fading program 160 191 Automatic 4-color snap program 192 223 Automatic 15-color snap program 224 255 Sound-active 15-color snap program – Dimmer 000 255 0–100% SlimPAR 64 RGBA ILS User Manual Rev. 1... -
Page 12: Standalone Configuration
DMX signals from the controller. Static Colors To run the SlimPAR 64 RGBA ILS with a preset static color, follow the instructions below. 1. Press <MENU> repeatedly until C-- shows on the display. 2. Press <ENTER>. -
Page 13: Wired Master/Slave Mode
D-Fi USB Master/Slave Mode The D-Fi USB allows a single SlimPAR 64 RGBA ILS product (the “master”) to control the actions of one or more SlimPAR 64 RGBA ILS products (the “slaves”) without a DMX controller or cables. The master (transmitter) product will be set to operate in standalone mode, while the slave (receiver) products will be set to operate in slave mode. -
Page 14: Maintenance
6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. SlimPAR 64 RGBA ILS User Manual Rev. 1... -
Page 15: Technical Specifications
104 °F (40 °C) Convection I/O Connector Channel Range 3-pin XLR 4 or 8 Ordering Product Name Item Code UPC Number SlimPAR 64 RGBA ILS 10032292 781462226404 UL 1573 CSA C22.2 No. 166 E113093 SlimPAR 64 RGBA ILS User Manual Rev. 1... -
Page 16: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. SlimPAR 64 RGBA ILS User Manual Rev. 1...
