Summary of Contents for Chauvet DJ SlimPAR Q12 ILS
- Page 1 User Manual...
-
Page 2: Table Of Contents
IRC-6 Infrared Remote Control ..............IRC-6 Operation ......................10 Master/Slave Mode ..................Master/Slave Mode (D-Fi USB)..............ILS Mode....................... 5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Warranty & Returns................ Limited Warranty ................... Returns......................Contact Us ..................SlimPAR Q12 ILS User Manual Rev. 1... -
Page 3: Before You Begin
Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and SlimPAR Q12 ILS are registered trademarks or trademarks of Chauvet & Sons LLC. (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies. -
Page 4: Safety Notes
Set this product on a flammable surface. Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. Page 2 of 15 SlimPAR Q12 ILS User Manual Rev. 1... -

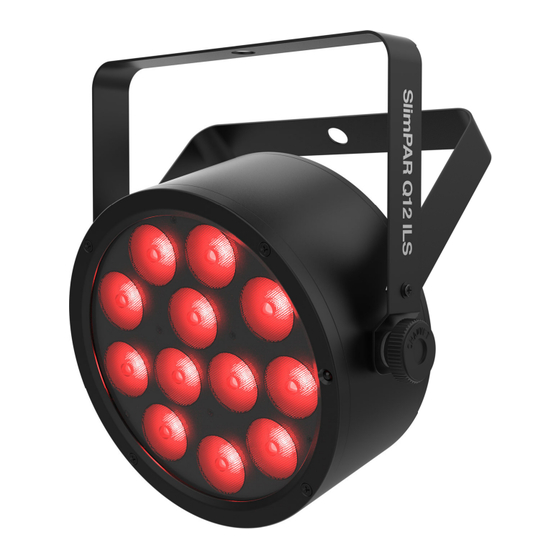

Page 5: Introduction
For D-FI USB only Bracket adjustment D-Fi USB Port knob (2x) Product Dimensions 9.7 in 246 mm 8.8 in 224.5 mm 3.3 in 84 mm 2.9 in 74.8 mm SlimPAR Q12 ILS User Manual Rev. 1 Page 3 of 15... -
Page 6: Setup
3. Setup AC Power The SlimPAR Q12 ILS has an auto-ranging power supply, and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 7: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The SlimPAR Q12 ILS may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 8: Operation
<DOWN> function Enables the currently displayed menu or sets the currently selected value into the selected <ENTER> function Menu Map Refer to the SlimPAR Q12 ILS product page on www.chauvetdj.com for the latest menu map. Programming Main Level Description Levels 4-Ch d 1–509... -
Page 9: Configuration (Dmx)
If the starting address is too high, access to some of the product’s channels could be restricted. The SlimPAR Q12 ILS uses up to 9 DMX channels in a 9-Ch DMX mode, which defines the highest configurable address to 504. -
Page 10: Dmx Values
052 101 Dimmer speed mode off – Dimmer speed 102 152 Dimmer speed mode 1 (fast) 153 203 Dimmer speed mode 2 (medium) 204 255 Dimmer speed mode 3 (slow) Page 8 of 15 SlimPAR Q12 ILS User Manual Rev. 1... -
Page 11: Configuration (Standalone)
DMX controller. Products in standalone mode may transmit DMX signals that could interfere with the DMX signals from the controller. Preset Color Mode To run the SlimPAR Q12 ILS on a static color, follow the instructions below: Press <MENU> repeatedly until C-- shows on the display. Press <ENTER>. -
Page 12: Irc-6 Infrared Remote Control
Operation IRC-6 Infrared Remote Control The SlimPAR Q12 ILS can be operated with the CHAUVET IRC-6. To enable IR wireless control, follow the instructions below. 1. Press <MENU> repeatedly until SEt shows on the display. 2. Press <ENTER>. 3. Press <UP> repeatedly until On shows on the display. -
Page 13: Master/Slave Mode
Master/Slave Mode (D-Fi USB) The D-Fi USB allows a single SlimPAR Q12 ILS product (the “master”) to control the actions of one or more SlimPAR Q12 ILS products (the “slaves”) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in standalone mode, while the slave (receiver) products will be set to operate in DMX mode. -
Page 14: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 12 of 15 SlimPAR Q12 ILS User Manual Rev. 1... -
Page 15: Technical Specifications
Maximum External Temperature Cooling System 104 °F (40 °C) Convection I/O Connector Channel Range 3-pin XLR 4 or 9 Ordering Product Name Item Code UPC Number SlimPAR Q12 ILS 10031894 781462222420 SlimPAR Q12 ILS User Manual Rev. 1 Page 13 of 15... -
Page 16: Warranty & Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Page 14 of 15 SlimPAR Q12 ILS User Manual Rev. 1... -
Page 17: Contact Us
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Fol- low the instructions to request support or to return a product. Visit our website for contact details. SlimPAR Q12 ILS User Manual Rev. 1 Page 15 of 15...
