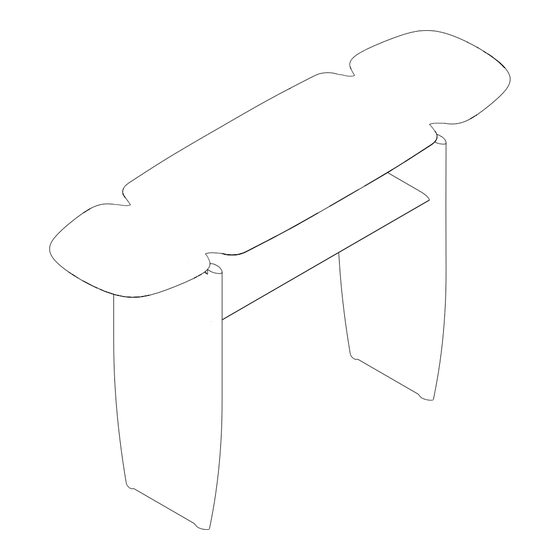

51335 PI CONSOLE
ASSEMBLY INSTRUCTIONS FOR CONSOLE INSTALLATION
HARDWARE ENCLOSED
JCBC SCREW
M6x40
(8pcs)
LOCKING SCREW
(2pcs)
IN YOUR PACKAGE :
ASSEMBLY INSTRUCTIONS
HARDWARE (AS LISTED ABOVE)
PARTS TO BE INSTALLED
1. TABLE TOP (1 pc)
2. LEGS (2 pcs)
3. SHELF (1 pc)
SYMBOLS
DIRECTION
NUMBER OF
PERSONS NEEDED
DOWEL
CONNECTING BOLT
Ø8x30mm
Ø10x46
(8pcs)
(2pcs)
MINIFIX
(2pcs)
USE HAND
TOOL ENCLOSED
ALLEN KEY
2
3
LEGS ARE INTERCHANGEABLE
NOTICE
USE ALLEN KEY
SCREWDRIVER TO TIGHTEN
TO TIGHTEN
TOOLS REQUIRED
WIDE FLAT HEAD
PHILLIPS SCREWDRIVER
(Not included in package)
(Not included in package)
1
2
N
C TIO
ST RU
LY IN
MB
S
SE
A
USE PHILLIPS
USE FLAT HEAD
SCREWDRIVER TO TIGHTEN
1 / 3
LE TRI
SCREWDRIVER
X2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ethnicraft PI CONSOLE 51335
Summary of Contents for Ethnicraft PI CONSOLE 51335
- Page 1 1 / 3 51335 PI CONSOLE LE TRI ASSEMBLY INSTRUCTIONS FOR CONSOLE INSTALLATION HARDWARE ENCLOSED TOOL ENCLOSED TOOLS REQUIRED JCBC SCREW DOWEL CONNECTING BOLT WIDE FLAT HEAD M6x40 Ø8x30mm Ø10x46 PHILLIPS SCREWDRIVER SCREWDRIVER ALLEN KEY (8pcs) (8pcs) (2pcs) (Not included in package) (Not included in package) LOCKING SCREW MINIFIX...
- Page 2 2 / 3 51335 PI CONSOLE LE TRI ASSEMBLY INSTRUCTIONS FOR CONSOLE INSTALLATION INSTALLING CONNECTING BOLT & DOWEL TO THE LEGS - USE CONNECTING BOLT Ø10x46 (X2) - USE DOWEL Ø8x30mm (X4) - REPEAT THIS STEP TO OTHER LEG - HOLE ON THE CONNECTING BOLT HAS TO BE FACED DOWN WARD ATTACHING SHELF TO LEGS - USE MINIFIX (X2) - USE FLAT WIDE FLAT HEAD SCREWDRIVER...
- Page 3 3 / 3 51335 PI CONSOLE LE TRI ASSEMBLY INSTRUCTIONS FOR CONSOLE INSTALLATION ATTACHING TABLE TOP TO LEGS - USE DOWEL Ø8x30mm (X4) - USE JCBC SCREW M6x40 (X4) - TIGHTEN FULLY ADJUST SCREWS ADJUST ALL SCREWS UNTIL TIGHT...
