ASSEMBLY INSTRUCTIONS FOR BED INSTALLATION
OAK AIR BED - WITHOUT SLATS
51211
OAK AIR BED - WITHOUT SLATS 180/200/95
51212
OAK AIR BED - WITHOUT SLATS 160/200/95
1/5

Advertisement

loading
Need help?

Need help?

Do you have a question about the 51211 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ethnicraft 51211

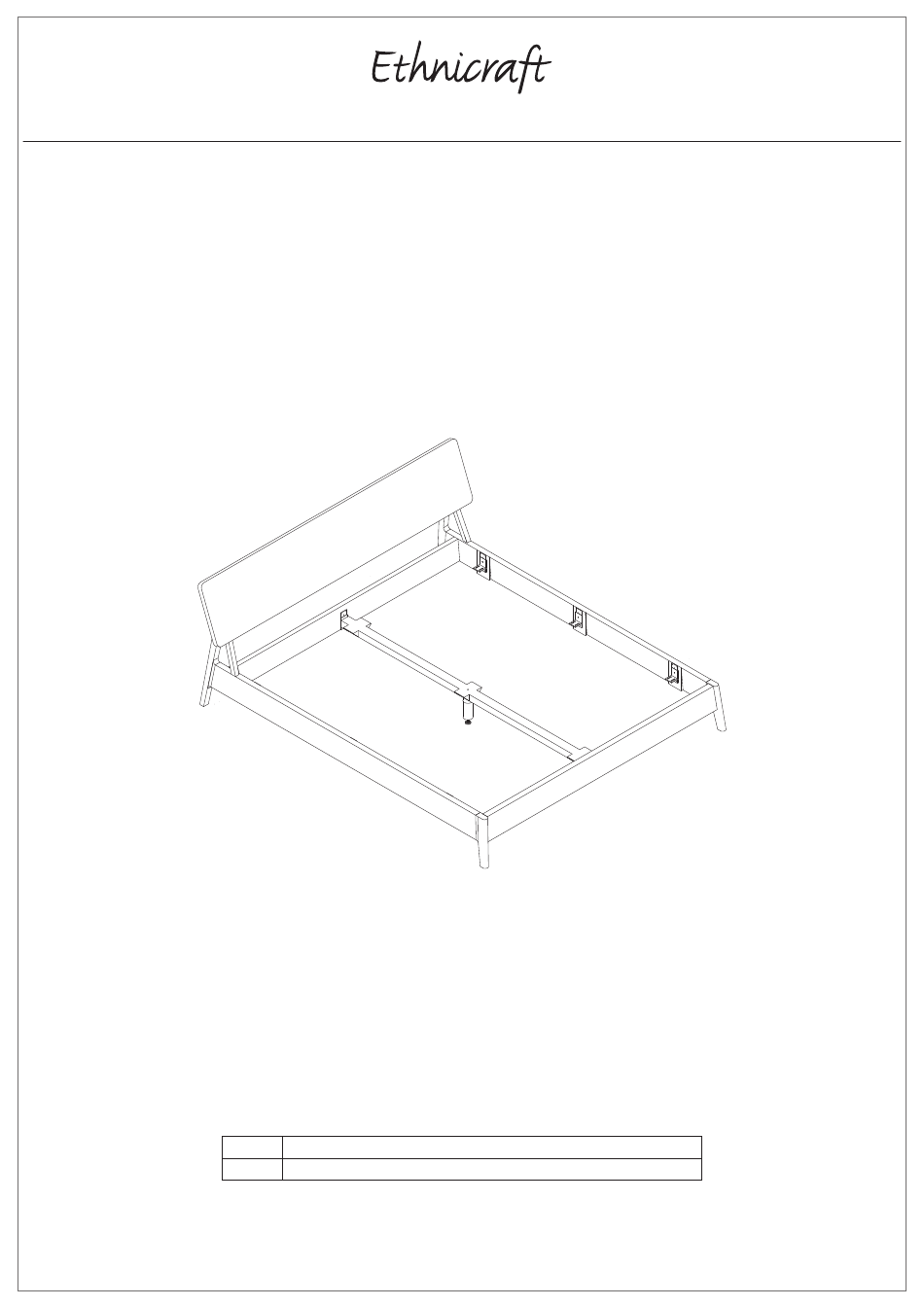

  • Page 1 ASSEMBLY INSTRUCTIONS FOR BED INSTALLATION OAK AIR BED - WITHOUT SLATS 51211 OAK AIR BED - WITHOUT SLATS 180/200/95 51212 OAK AIR BED - WITHOUT SLATS 160/200/95...
  • Page 2 OAK AIR BED - WITHOUT SLATS ASSEMBLY INSTRUCTIONS FOR BED INSTALLATION HARDWARE ENCLOSED TOOLS JCBC Screw L Bracket M6x6 Screw Connector L KEY (4pcs) (4pcs) (8pcs) (8pcs) (Included in package) Countersunk Screw JCBC Screw M6x50 M6x20 (1pc) (4pcs) IN YOU PACKAGE : ASSEMBLY INSTRUCTIONS HARDWARE (AS LISTED ABOVE) PARTS TO BE INSTALLED...
  • Page 3 OAK AIR BED - WITHOUT SLATS ASSEMBLY INSTRUCTIONS FOR BED INSTALLATION A. INSTALLING SIDERAIL + FOOTBOARD + HEADBOARD RAIL...
  • Page 4 OAK AIR BED - WITHOUT SLATS ASSEMBLY INSTRUCTIONS FOR BED INSTALLATION B. INSTALLING HEADBOARD DO NOT FULLY TIGHTEN Note: Before placing the headboard turn the barrel (from the leg) with a screwdriver so the bolt-connectors (from the headboard) fit into the barrels. - USE DOWEL (4X) - USE BOLT CONNECTOR (4X) - USE...
  • Page 5 OAK AIR BED - WITHOUT SLATS ASSEMBLY INSTRUCTIONS FOR BED INSTALLATION C. INSTALLING MIDDLE SUPPORT & CENTER LEG - USE JCBC SCREW M6x6mm (2X) - USE COUNTERSUNK SCREW M6x50mm (1X) - USE JCBC SCREW M6x20mm (4X) - TIGHTEN FULLY ALL SCREWS TO ADJUST HEIGHT D.

This manual is also suitable for:

51212
