BED - WITH / WITHOUT SLATS

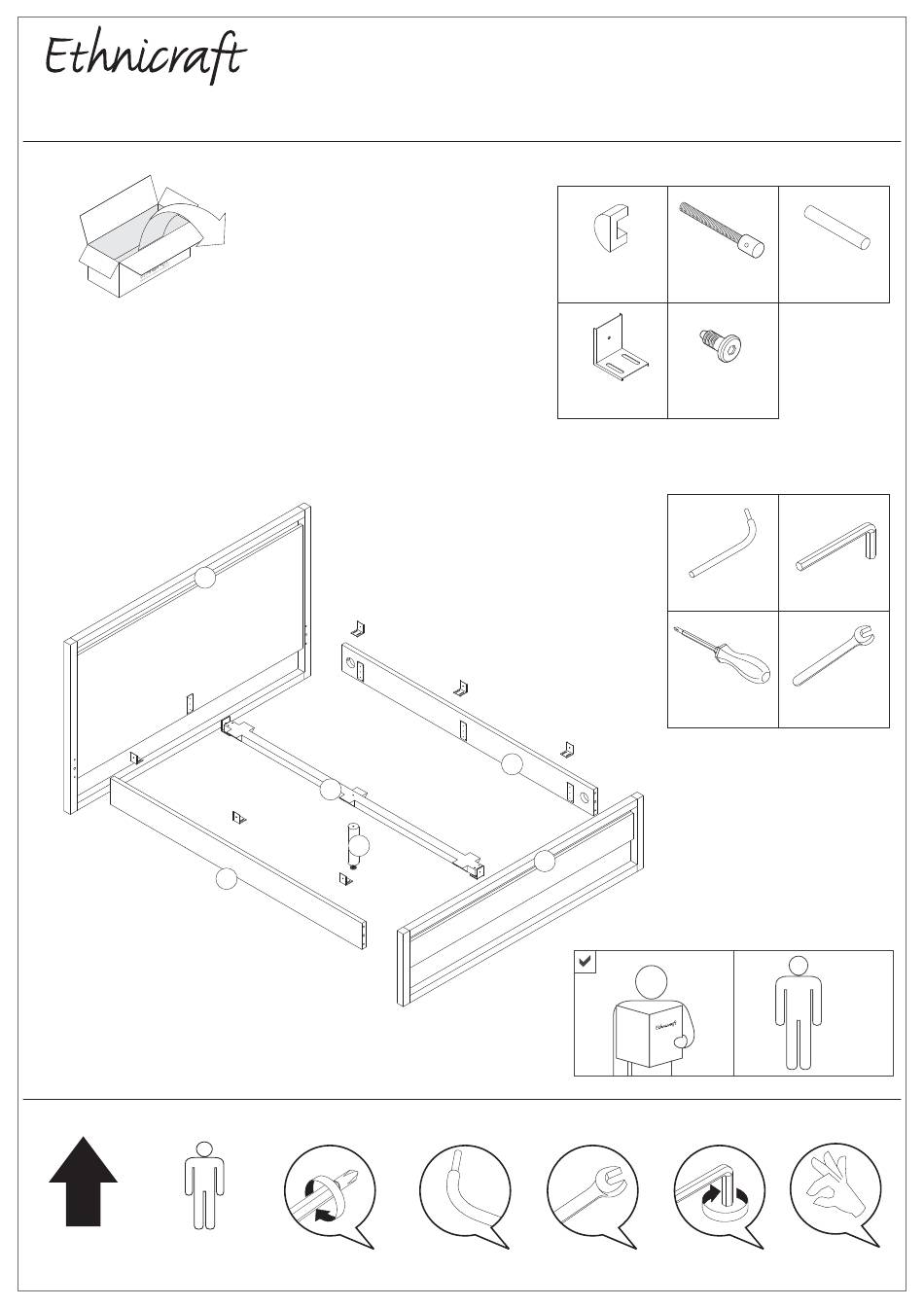

ASSEMBLY INSTRUCTION FOR BED INSTALLATION
IN YOUR PACKAGE :
ASSEMBLY INSTRUCTION
HARDWARE ( AS LISTED ABOVE )
PARTS TO BE INSTALLED
1. HEADBOARD
2. FOOTBOARD
3. SIDERAILS
4. CENTER SUPPORT
5. CENTER LEG
1
3
SYMBOLS
SYMBOLS
DIRECTION
NUMBER OF
PERSONS NEEDED
1pc
1pc
2pcs
1pc
1pc
4
5
USE SCREWDRIVER
TO TIGHTEN
HARDWARES
HALF MOON NUT
(4 pcs)
L BRACKET
(6 pcs)
3
2
NOTICE
USE KEY
USE WRENCH
TO TIGHTEN
TO TIGHTEN
BOLT
DOWEL
(4 pcs)
(8 pcs)
JCBC SCREW
(8 pcs)
M6 x 6mm
TOOLS
KEY
L KEY
(Included in package)
(Included in package)
SCREW DRIVER
WRENCH
(Not included in package)
(Not included in package)
IO N
RU CT
IN ST
MB LY
AS SE
X3
USE L KEY
USE HAND
TO TIGHTEN
1/3
