Ethnicraft 51502 Assembly Instructions

Oak bok extendable dining table

Download this manual

ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION

OAK BOK EXTENDABLE DINING TABLE

CODE

DESCRIPTION

51502

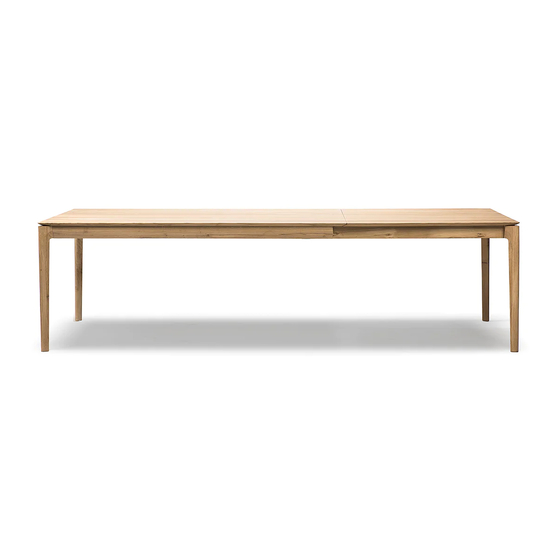

OAK BOK EXTENDABLE DINING TABLE 140-220/90/76

OAK BOK EXTENDABLE DINING TABLE 160-240/90/76

51503

51504

OAK BOK EXTENDABLE DINING TABLE 180-280/100/76

51542

OAK BOK BLACK EXTENDABLE DINING TABLE 140-220/90/76

OAK BOK BLACK EXTENDABLE DINING TABLE 160-240/90/76

51543

51544

OAK BOK BLACK EXTENDABLE DINING TABLE 180-280/100/76

1/5

Need help?

Do you have a question about the 51502 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION OAK BOK EXTENDABLE DINING TABLE CODE DESCRIPTION 51502 OAK BOK EXTENDABLE DINING TABLE 140-220/90/76 OAK BOK EXTENDABLE DINING TABLE 160-240/90/76 51503 51504 OAK BOK EXTENDABLE DINING TABLE 180-280/100/76 51542 OAK BOK BLACK EXTENDABLE DINING TABLE 140-220/90/76...
Page 2 CHECK PACKAGE CONTENTS TO ASSURE ALL THE NECESSARY HARDWARE AND PARTS ARE RECEIVED UNDAMAGED. DO NOT USE DAMAGE OR DEFECTIVE PARTS/HARDWARE. CONTACT ETHNICRAFT FOR ANY MISSING PART AND /OR HARDWARE. READ THE ASSEMBLY INSTRUCTION BEFORE INSTALLATION AND CAREFULLY FOLLOW THE INSTRUCTION GIVEN.
Page 3 OAK BOK EXTENDABLE DINING TABLE ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION INSTALLING THE LEGS TO TABLE TOP H0383 H0383 H0689 H0689 IMPORTANT : - USE WASHER M8 - USE SPAX SCREW M6x80 FOR THE FIXED LEGS - TIGHTEN FULLY INSTALLING LEG SET TO TABLE TOP H2069 H2069 H2069...
Page 4 OAK BOK EXTENDABLE DINING TABLE ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION REMOVE WOODEN PIECES REMOVE WOODEN PIECES BEFORE EXTENDING THE TABLE Position of wooden pieces INSTALLING SCREW IN THE MIDDLE SIDE Position of Middle screws H2069 H2069 - ONE PERSON HOLD THE EXTENSION LEAVES - USE SCREW M6x40 - TIGHTEN FULLY ALL SCREWS...
Page 5 OAK BOK EXTENDABLE DINING TABLE ASSEMBLY INSTRUCTIONS FOR DINING TABLE INSTALLATION EXTENDING NOTE : LOCK AFTER EXTENDING DISMANTLING NOTE : UNLOCK BEFORE DISMANTLING...
