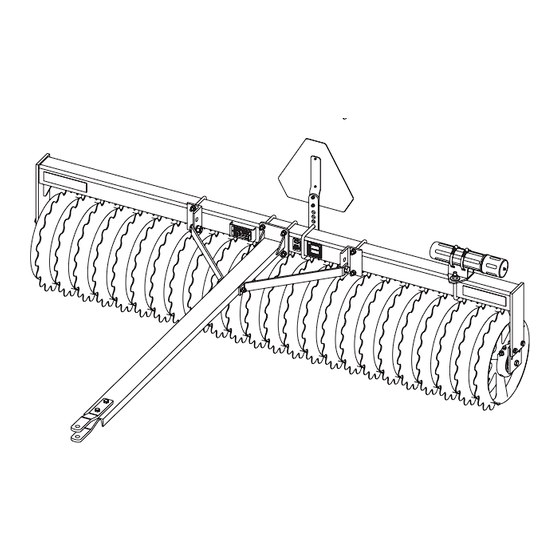

Landoll Brillion PP5-8 Operator And Parts Manual

Pulverizer
Hide thumbs

Advertisement

Quick Links

Download this manual
'
Pulverizer
Models PP5-8 and P5-8
Operator's and Parts Manual
LANDOLL COMPANY, LLC
1900 North Street
Marysville, Kansas 66508
(785) 562-5381
800-428-5655 ~ WWW.LANDOLL.COM
9J893-2405

Advertisement

loading
Need help?

Need help?

Do you have a question about the Brillion PP5-8 and is the answer not in the manual?

Questions and answers

Related Manuals for Landoll Brillion PP5-8

Summary of Contents for Landoll Brillion PP5-8

  • Page 1 ‘ Pulverizer Models PP5-8 and P5-8 Operator’s and Parts Manual LANDOLL COMPANY, LLC 1900 North Street Marysville, Kansas 66508 (785) 562-5381 800-428-5655 ~ WWW.LANDOLL.COM 9J893-2405...
  • Page 2 Instructions for Ordering Parts ** Repair parts must be ordered through an Authorized Dealer ** DEALER INSTRUCTIONS FOR ORDERING PARTS FROM LANDOLL PARTS DISTRIBUTION CENTER Phone #: 800-423-4320 785-562-5381 Fax #: 888-527-3909 Order online: dealer.landoll.com DATA PLATE The Data Plate, which lists the model number and serial number, is located on the front of the frame.
  • Page 3 DANGER DO NOT operate or perform any maintenance tasks on this equipment until you have completed the following: 1. Receive proper training to operate this equipment safely. 2. Read and understand the operator’s manual. 3. Be thoroughly trained on inspection and repair procedures. Failure to comply with this warning may result in serious injury or possibly death.
  • Page 5 INDEX Table of Contents Safety Information Introduction ........... . 1-1 Description of Unit .
  • Page 6 TABLE OF CONTENTS INDEX Specifications Illustrated Parts List Drawbar Assembly, PP5-PP7 ........6-1 Drawbar Assembly, PP8 .
  • Page 7 Failure to comply with this warning can result in within 10 days of retail purchase, using the Landoll personal injury or death, damage to the Company, LLC Ag Products on-line registration process.
  • Page 8 TABLE OF CONTENTS INDEX SAFETY INFORMATION Safety • When applying decals to the implement, be sure to clean the surface to remove any dirt or residue. Where possible, sign placement should protect the sign from NOTE abrasion, damage, or obstruction from mud, dirt, oil etc. Investigation has shown that nearly 1/3 of all farm DANGER accidents are caused by careless use of machinery.
  • Page 9 INDEX TABLE OF CONTENTS SAFETY INFORMATION Safety Instructions for Towing Chemical Safety Vehicles Agricultural chemicals can be dangerous. Improper use can seriously injure persons, animals, plants, soil & The maximum travel speed is the lesser of property. • The limit of the road conditions; •...
  • Page 10 TABLE OF CONTENTS INDEX SAFETY INFORMATION Table provided for general use. NOTES: 9J893-2405...
  • Page 11 Chapter 2 INDEX TABLE OF CONTENTS Assembly The PP Series Pulverizer is shipped completely To ensure the alignment of assemblies, leave the nuts assembled. The P Series Pulverizer will need the loose until completion of final assembly. Use lock washers drawbar assembled to the frame.
  • Page 12 TABLE OF CONTENTS INDEX ASSEMBLY Pull-Type Hitch 8 FT Models 1. Attach Drawbar to the center of the front Frame Tube Optional Pull-Type Hitch Kit P/N 1K443 is available for with 1/2-13 U-Bolts, Lock Washers, and Nuts. See 3-PT Hitch Models. Figure 2-3.
  • Page 13 INDEX TABLE OF CONTENTS ASSEMBLY Angle Bracket U-Bolt,1/2-13 x 5-1/2 x 4-9/16 Nut,3/4-10 Bolt,3/4-10 x 1-3/4 Lock Washer,3/4 Lock Washer,1/2 U-Bolt,1/2-13 x 5-1/2 x 4-9/16 Nut,1/2-13 Brace Angle Bracket Bolt,1/2-13 x 5-1/2 Bolt,1/2-13 x 2 Lock Washer,1/2 Nut, Bolt,3/4-10 1/2-13 Nut, x 1-3/4 1/2-13...
  • Page 14 TABLE OF CONTENTS INDEX ASSEMBLY Scraper Kit (Notched Ductile Wheel 8J001) - Optional Scraper Bracket NOTE Scraper Tube A Scraper can be used as a guide to achieve the 1/4" gap Front between the Scraper and the Notched Wheel. Scraper 1.
  • Page 15 INDEX TABLE OF CONTENTS ASSEMBLY Scraper Kit (Notched Gray Iron Wheel 8C988) - Optional Scraper Bracket 1. Place the Pulverizer Roller on level ground. Angle 2. Attach short Angles to the Scraper Angle with 1/2-13 x 1-1/2 Bolts, Flat Washers, Lock Washers, and Nuts. Front See Figures 2-7 and 2-8.
  • Page 16 TABLE OF CONTENTS INDEX ASSEMBLY Table provided for general use. NOTES: 9J893-2405...
  • Page 17 Chapter 3 INDEX TABLE OF CONTENTS Operation DANGER WARNING Never allow anyone to ride on the Pulverizer at any Always be sure that the tractor hitch capacity is time. Allowing a person to ride on the machine can rated to carry the weight of the Pulverizer. Refer to inflict serious personal injury or death to that "Specifications"...
  • Page 18 TABLE OF CONTENTS INDEX OPERATION Tractor Preparation 3. Check the Tractor tire inflation levels to ensure that they are properly inflated for the additional Laden The Pulverizer is available as a Pull Type or 3-PT Pulverizer Mass. Refer to the Tractor Operator's mounted version.
  • Page 19 INDEX TABLE OF CONTENTS OPERATION Upper Upper Ø 3/4" Pin Ø 3/4" Pin Lower Ø 7/8" Pin 18-1/4" Lower Ø 7/8" Pin Lower Hitch Lower Spacer 26-3/4" Inside Ø 2" Bushing over 1-1/8" Bushing Category 1 Free Link Upper Ø 1" Upper Ø...
  • Page 20 TABLE OF CONTENTS INDEX OPERATION Attaching/Detaching 3-PT Attaching/Detaching Hitch Pulverizer Pull-Type Pulverizer Prior to operating the Pulverizer, inspect it thoroughly for DANGER good operating condition. Replace worn or missing parts. New machines, check the bolt tightness after a few hours Do not allow any bystanders to stand between the of operation.
  • Page 21 INDEX TABLE OF CONTENTS OPERATION Scraper Adjustment 3. When towing equipment in combination, the maximum equipment ground speed shall be limited to To adjust scrapers; lower machine on level surface. Adjust the lowest specified ground speed of any of the towed scrapers to obtain 1/4"...
  • Page 22 TABLE OF CONTENTS INDEX OPERATION Table provided for general use. NOTES: 9J893-2405...
  • Page 23 Chapter 4 INDEX TABLE OF CONTENTS Maintenance General Torque Specifications (rev. 4/97) This chart provides tightening torques for general purpose applications when special torques are not specified on process or drawing. Assembly torques apply to plated nuts and capscrews assembled without supplemental lubrication (as received condition).
  • Page 24 TABLE OF CONTENTS INDEX MAINTENANCE Hydraulic Fitting Torque Specifications 37 degree JIC, ORS, & ORB (REV. 10/97 This chart provides tightening torques for general purpose applications when special torques are not specified on process or drawing. Assembly torques apply to plated nuts and capscrews assembled without supplemental lubrication (as received condition).
  • Page 25 INDEX TABLE OF CONTENTS MAINTENANCE Roller Adjustment Roller Assembly Clamp Tightening Procedure IMPORTANT IMPORTANT The Roller Axle has Internal Bearings. When installing The tightening procedure and torque requirement is the Roller Axle onto the Mounting Plate Assemblies, critical in keeping the Roller Assembly Clamps tight it is important to keep the Roller Axle aligned as and has a significant effect on the Internal Bearing life straight as possible to the Straight Axle Mount.
  • Page 26 TABLE OF CONTENTS INDEX MAINTENANCE Storage 1. The service life of the Pulverizer will be extended by proper off-season storage practices. Prior to storing the unit, complete the following procedures: • Completely clean the unit. • Inspect the machine for worn or defective parts. Replace as needed.
  • Page 27 Chapter 5 INDEX TABLE OF CONTENTS Specifications Product Attributes Approximate Weight (PPM) 16" Notched Gray Iron Wheels 709 lbs. (322 kg) 827 lbs. (375 kg) (PPD) 20" Notched Ductile Iron Wheels 650 lbs. (295 kg) 756 lbs. (343 kg) (PPC) 16" Crowfoot Gray Iron Wheels 678 lbs.
  • Page 28 TABLE OF CONTENTS INDEX SPECIFICATIONS Product Attributes Approximate Weight (PM) 16" Notched Gray Iron Wheels 715 lbs. (324 kg) 832 lbs. (377 kg) (PD) 20" Notched Ductile Iron Wheels 651 lbs. (295 kg) 755 lbs. (342 kg) (PC) 16" Crowfoot Gray Iron Wheels 684 lbs.
  • Page 29 INDEX TABLE OF CONTENTS SPECIFICATIONS Table provided for general use. NOTES:...
  • Page 30 Chapter 6 TABLE OF CONTENTS Illustrated Parts List Drawbar Assembly, P5-P7 Figure 6-1: Drawbar Assembly, P5-P7 Drawbar Assembly, P5-P7 ITEM PART NUMBER DESCRIPTION 6K403 FRAME WLDMT, 5' PULVERIZER 9J841 6' FRAME WLDMT 9J842 FRAME WLDMT - 7' 1K441 DRAWBAR 3J562 U-BOLT 1/2-13 X 5-1/2 X 4-9/16 1-861-010034-13 WASHER, LOCK 1/2 ZP...
  • Page 31 INDEX TABLE OF CONTENTS ILLUSTRATED PARTS LIST Drawbar Assembly, P8 Figure 6-2: Drawbar Assembly, P8 Drawbar Assembly, P8 ITEM PART NUMBER DESCRIPTION 6K982 8' FRAME WLDMT 1K441 DRAWBAR 3J562 U-BOLT 1/2-13 X 5-1/2 X 4-9/16 1-861-010034-13 WASHER, LOCK 1/2 ZP 1-512-010007-09 NUT HEX 1/2-13 ZP 1C517...
  • Page 32 TABLE OF CONTENTS INDEX ILLUSTRATED PARTS LIST 3-PT Hitch Assembly, PP5-PP7 Figure 6-3: 3-PT Hitch Assembly, PP5-PP7 3-PT Hitch Assembly, PP5-PP7 ITEM PART NUMBER DESCRIPTION 6K403 FRAME WLDMT, 5' PULVERIZER 9J841 6' FRAME WLDMT 9J842 FRAME WLDMT - 7' 9J847 HITCH WLDMT 9J848 1-647-010004177...
  • Page 33 INDEX TABLE OF CONTENTS ILLUSTRATED PARTS LIST 3-PT Hitch Assembly, PP8 Figure 6-4: 3-PT Hitch Assembly, PP8 3-PT Hitch Assembly, PP8 ITEM PART NUMBER DESCRIPTION 6K982 8' FRAME WLDMT 6K983 HITCH BRACKET 9D989 U-BOLT 5/8-11X5-5/8X4-11/16 1-861-010034-15 WASHER,LKG,HLCL SPR,5/8 1-512-010007-11 NUT, HEX 5/8-11 GR2 ZP 7K268 PIN (7/8 X 5-5/8) 1-647-010004221...
  • Page 34 TABLE OF CONTENTS INDEX ILLUSTRATED PARTS LIST SMV and Manual Canister Figure 6-5: SMV and Manual Canister SMV and Manual Canister ITEM PART NUMBER DESCRIPTION 8K645 CANISTER BRACKET WELDMENT 1-116-010019 BOX, MANUAL STORAGE 105-0093 HOSE CLAMP 4-1/2 IDEAL #5264 9D989 U-BOLT 5/8-11X5-5/8X4-11/16 1-861-010032-19 WASHER, FLAT 5/8 W ZP/CD...
  • Page 35 INDEX TABLE OF CONTENTS ILLUSTRATED PARTS LIST Frame to Roller Assembly Figure 6-6: Frame to Roller Assembly Frame to Roller Assembly ITEM PART NUMBER DESCRIPTION 6K417 WHEEL & AXLE ASSY - PPD5 (NOTCH DUCTILE) (SEE PAGE 6-8) 1K012 WHEEL & AXLE ASSY 6' (NOTCH DUCTILE) (SEE PAGE 6-8) 1K013 WHEEL &...
  • Page 36 TABLE OF CONTENTS INDEX ILLUSTRATED PARTS LIST Mounting Plate Figure 6-7: Mounting Plate Mounting Plate ITEM PART NUMBER DESCRIPTION 9J844 MOUNTING PLATE ASSY 9J870 MOUNTING PLATE WLDMT 9D669 STRAIGHT AXLE MOUNT 9D864 DRILLED BOLT 1-861-010034-15 WASHER,LKG,HLCL SPR,5/8 4D529 SLOTTED NUT 5/8-11 ZP 101386 PIN, COTTER, 1/8X1 9J893-2405...
  • Page 37 INDEX TABLE OF CONTENTS ILLUSTRATED PARTS LIST Roller Axle Assemblies, 20" Notched Ductile Figure 6-8: Roller Axle Assemblies, 20" Notched Ductile Roller Axle Assemblies, 20" Notched Ductile ITEM PART NUMBER DESCRIPTION MODELS 6K417 WHEEL & AXLE ASSY - PPD5 1K012 WHEEL &...
  • Page 38 TABLE OF CONTENTS INDEX ILLUSTRATED PARTS LIST Roller Axle Assemblies, 16" Notched Gray Iron Figure 6-9: Roller Axle Assemblies, 16" Notched Gray Iron Roller Axle Assemblies, 16" Notched Gray Iron ITEM PART NUMBER DESCRIPTION MODELS 6K415 WHEEL & AXLE ASSY - PPM5 9J839 WHEEL &...
  • Page 39 INDEX TABLE OF CONTENTS ILLUSTRATED PARTS LIST Roller Axle Assemblies, Crowfoot Figure 6-10: Roller Axle Assemblies, Crowfoot Roller Axle Assemblies, Crowfoot ITEM PART NUMBER DESCRIPTION MODELS 6K427 WHEEL & AXLE ASSY - PPC5 1K018 WHEEL & AXLE ASSY 6' 4J645 WHEEL AND AXLE ASSY - FR 1K019 WHEEL &...
  • Page 40 TABLE OF CONTENTS INDEX ILLUSTRATED PARTS LIST Roller Axle Assemblies, 18" Smooth Figure 6-11: Roller Axle Assemblies, 18" Smooth Roller Axle Assemblies, 18" Smooth ITEM PART NUMBER DESCRIPTION MODELS 6K429 WHEEL & AXLE ASSY - PPG5 1K315 WHEEL & AXLE ASSY - 6' 1K316 WHEEL &...
  • Page 41 INDEX TABLE OF CONTENTS ILLUSTRATED PARTS LIST 4" Pipe Axle Assembly Figure 6-12: 4" Pipe Axle Assembly 4" Pipe Axle Assembly ITEM PART NUMBER DESCRIPTION MODELS 6K413 PIPE AXLE ASSEMBLY (61-1/8") (5FT) 9J875 PIPE AXLE ASSEMBLY - 73 1/8" (6FT) 4J610 PIPE AXLE ASSY - FR - 85 1/8"...
  • Page 42 TABLE OF CONTENTS INDEX ILLUSTRATED PARTS LIST Bearing Housing Assembly, 9C182 Figure 6-13: Bearing Housing Assembly, 9C182 Bearing Housing Assembly, 9C182 ITEM PART NUMBER DESCRIPTION 9C182 OUTER BEARING HOUSING ASSY 9C016 BEARING 9C014 OUTER BEARING HOUSING 6-13 9J893-2405...
  • Page 43 INDEX TABLE OF CONTENTS ILLUSTRATED PARTS LIST 4-1/2" Pipe Axle Assembly Figure 6-14: 4-1/2" Pipe Axle Assembly 4-1/2" Pipe Axle Assembly ITEM PART NUMBER DESCRIPTION MODELS 6K431 PIPE AXLE ASSEMBLY (61-1/8") (5FT) 1K324 PIPE AXLE ASSY - 72 1/8" (6FT) 1K325 PIPE AXLE ASSY - 85 1/8"...
  • Page 44 TABLE OF CONTENTS INDEX ILLUSTRATED PARTS LIST Bearing Housing Assembly, 7J035 Figure 6-15: Bearing Housing Assembly, 7J035 Bearing Housing Assembly, 7J035 ITEM PART NUMBER DESCRIPTION 7J035 BEARING HOUSING ASSY 9C016 BEARING 2K843 BEARING HOUSING 6-15 9J893-2405...
  • Page 45 INDEX TABLE OF CONTENTS ILLUSTRATED PARTS LIST Bearing Housing Assembly, 5D202 Figure 6-16: Bearing Housing Assembly, 5D202 Bearing Housing Assembly, 5D202 ITEM PART NUMBER DESCRIPTION 5D202 INNER BRG. HOUSING ASSY 9C016 BEARING 5D038 INNER BRG. HOUSING (7003752) 9J893-2405 6-16...
  • Page 46 TABLE OF CONTENTS INDEX ILLUSTRATED PARTS LIST Axle Clamp Assembly, 4" Axle Figure 6-17: Axle Clamp Assembly, 4" Axle Axle Clamp Assembly, 4" Axle ITEM PART NUMBER DESCRIPTION 5J375 AXLE CLAMP ASSEM 9D673 U-BOLT, 1/2-13 X 3-1/4 X 4-9/16 9C031 AXLE CLAMP 1-861-010034-13 WASHER, LKG HLCL SPR, 1/2...
  • Page 47 INDEX TABLE OF CONTENTS ILLUSTRATED PARTS LIST Axle Clamp Assembly, 4-1/2" Axle 5J376 Iso Figure 6-18: Axle Clamp Assembly, 4-1/2" Axle Axle Clamp Assembly, 4-1/2" Axle ITEM PART NUMBER DESCRIPTION 5J376 AXLE CLAMP ASSY 512-010007-08 NUT HEX 7/16-14 GR2 ZP 1-861-010034-12 WASHER LOCKING HLC SPG 7/16 1C290...
  • Page 48 TABLE OF CONTENTS INDEX ILLUSTRATED PARTS LIST Scraper Kit for Notched Ductile Wheel 8J001 - Optional Figure 6-19: Scraper Kit for Notched Ductile Wheel 8J001 - Optional 6-19 9J893-2405...
  • Page 49 INDEX TABLE OF CONTENTS ILLUSTRATED PARTS LIST Scraper Kit for Notched Ductile Wheel 8J001 - Optional ITEM PART NUMBER DESCRIPTION MODELS 6K434 SCRAPER KIT - PPD5 (SHOWN) 1K436 SCRAPER KIT FOR PPD6 1K437 SCRAPER KIT FOR PPD7 1K438 SCRAPER KIT FOR PPD8 1K411 BRACKET 3J562...
  • Page 50 TABLE OF CONTENTS INDEX ILLUSTRATED PARTS LIST Scraper Kit for Notched Gray Iron Wheel 8C988 - Optional Figure 6-20: Scraper Kit for Notched Gray Iron Wheel 8C988 - Optional 6-21 9J893-2405...
  • Page 51 INDEX TABLE OF CONTENTS ILLUSTRATED PARTS LIST Scraper Kit for Notched Gray Iron Wheel 8C988 - Optional ITEM PART NUMBER DESCRIPTION MODELS 6K432 SCRAPER KIT - PPM5 (SHOWN) 1K430 SCRAPER KIT FOR PPM6 1K431 SCRAPER KIT FOR PPM7 1K432 SCRAPER KIT FOR PPM8 1K411 BRACKET 9J047...
  • Page 52 TABLE OF CONTENTS INDEX ILLUSTRATED PARTS LIST Drawbar - Optional for 3-PT Hitch Models 5-7 FT Models 8 FT Models Figure 6-21: Drawbar - Optional for 3-PT Hitch Models 6-23 9J893-2405...
  • Page 53 INDEX TABLE OF CONTENTS ILLUSTRATED PARTS LIST Drawbar - Optional for 3-PT Hitch Models ITEM PART NUMBER DESCRIPTION MODELS 5' - 6' - 7' 1K443 DRAWBAR KIT 1K441 DRAWBAR 3J562 U-BOLT 1/2-13 X 5-1/2 X 4-9/16 1-861-010034-13 WASHER, LOCK 1/2 ZP 1-512-010007-09 NUT HEX 1/2-13 ZP 1C517...
  • Page 54 MANUFACTURERS A S S O C I A T I O N P/N: 232188 ITEM 5 ITEM 6 2P151 ITEM 7 2-573-010198 232188 Landoll Company, LLC Marysville, Kansas www.landoll.com MODEL # SERIAL # MADE IN USA 1-573-010006 ITEM 8 1-573-010006...
  • Page 55 INDEX TABLE OF CONTENTS ILLUSTRATED PARTS LIST Decal Locations Front Front Figure 6-23: Decals, 5FT - 7FT 9J893-2405 6-26...
  • Page 56 TABLE OF CONTENTS INDEX ILLUSTRATED PARTS LIST Front Front Figure 6-24: Decals, 8FT 6-27 9J893-2405...
  • Page 57 Chapter 12 TABLE OF CONTENTS Glossary For clarity this glossary of industry standard abbreviations and their definitions are provided. For additional information, see instruction on the inside front HHCS ....Hex Head Cap Screw cover or the last page of this manual.
  • Page 58 TABLE OF CONTENTS INDEX GLOSSARY RH ....... . Righthand RND ....... . . Round SER .
  • Page 59 Chapter 8 TABLE OF CONTENTS Index Numerics 1C517 ......6-1, 6-2, 6-25 1D927 ....... . 6-11 0A046 .
  • Page 60 TABLE OF CONTENTS INDEX INDEX 4J005 ....... . . 6-23 8J015 .
  • Page 61 INDEX TABLE OF CONTENTS INDEX Table provided for general use. NOTES:...
  • Page 62 Instructions for Ordering Parts ** Repair parts must be ordered through an Authorized Dealer ** DEALER INSTRUCTIONS FOR ORDERING PARTS FROM LANDOLL PARTS DISTRIBUTION CENTER Phone #: 800-423-4320 785-562-5381 Fax #: 888-527-3909 Order online: dealer.landoll.com DATA PLATE The Data Plate, which lists the model number and serial number, is located on the front of the frame.
  • Page 63 Document Control Revision Log: Date Form # Improvement(s): Description and Comments 10/25/2005 1199rev10-25-05 Initial Release 07/2023 9J893-2307 Revised Template, Revision Format “Year/Month” Add Scraper Kits ECN 49151, 49671 - Decals, Part Numbers Updated ISO logos to ISO 9001:2015 (Revised 04/2024) 05/2024 9J893-2405 Updated Drawings...
  • Page 64 Equipment from Landoll Company, LLC is built to exacting standards ensured by ISO 9001:2015 registration at all Landoll manufacturing facilities. Pulverizer Models PP5-8 and P5-8 Operator’s and Parts Manual Re-Order Part Number 9J893 LANDOLL COMPANY, LLC 1900 North Street Marysville, Kansas 66508 (785) 562-5381 800-428-5655 ~ WWW.LANDOLL.COM...
