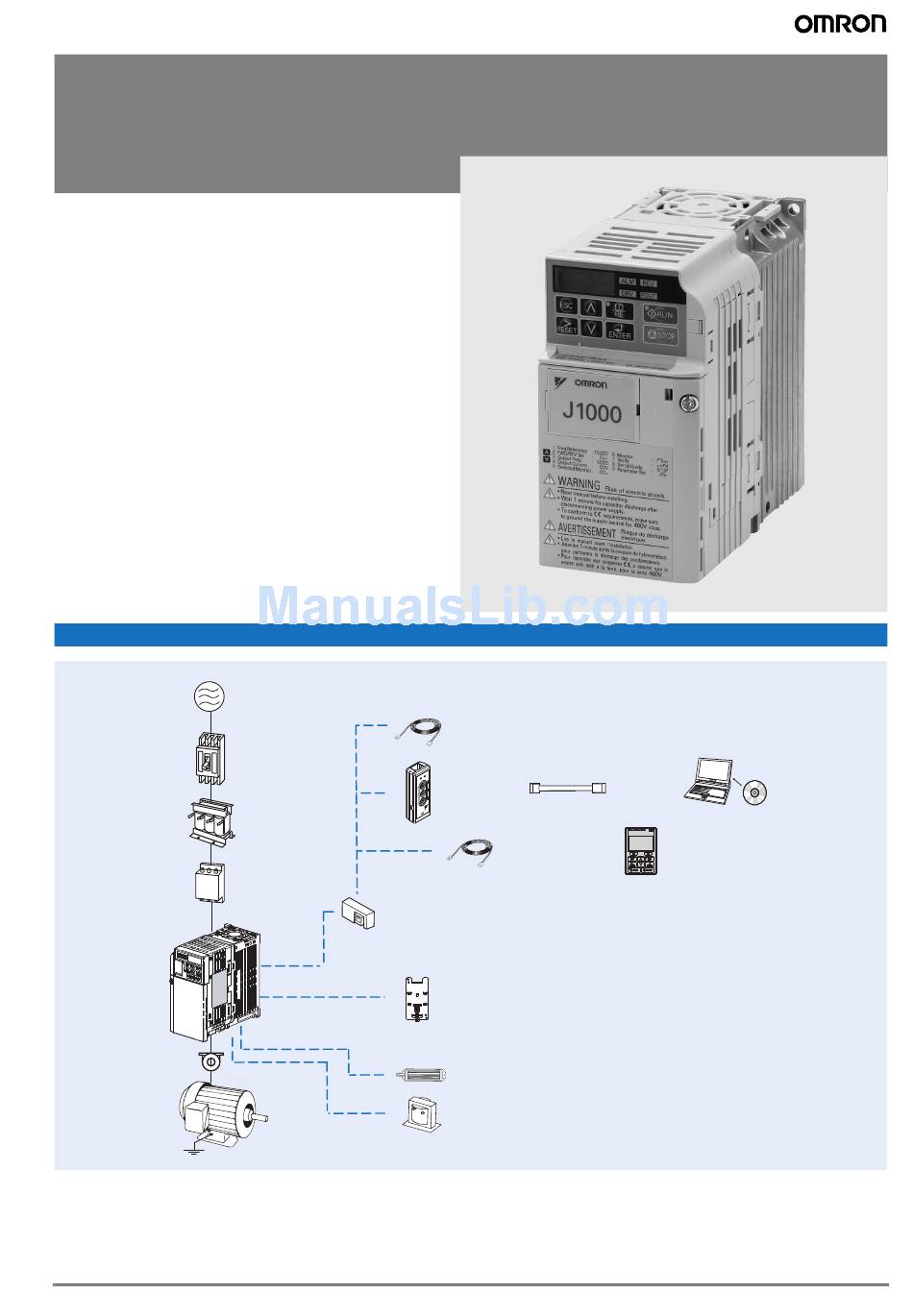

JZ
J1000

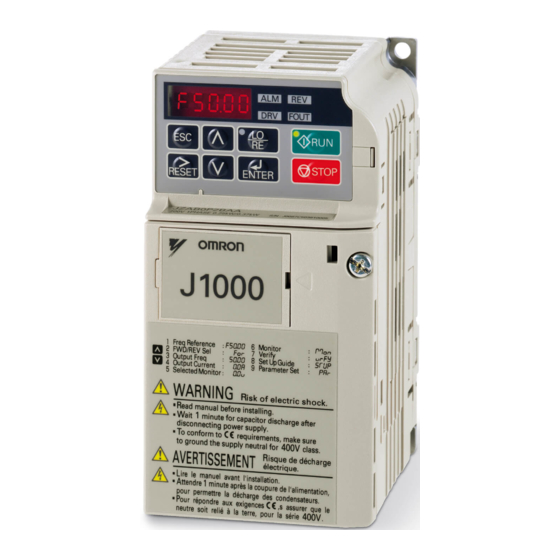

The basic inverter
• V/f controlled inverter
• Good torque performance (150% / 3 Hz)
• Double rating ND 120%/1min and HD 150%/1 min
• Overload detection function (150% during 60s)
• Motor thermal function
• Freely configurable V/f curve
• 5 programmable digital input
• 1 programmable digital output
• 1 programmable analog output
• Optional RS-232C/485 communication - Modbus,
• CE, UL, cUL and TUV, RoHS
Ratings
• 200 V Class single-phase 0.1 to 1.5 kW
• 200 V Class three-phase 0.1 to 4.0 kW
• 400 V Class three-phase 0.2 to 4.0 kW

System configuration

Power
Supply
MCCB
AC Reactor
Filter
J1000
Choke
Motor
Ground
J1000
RS232 Communications cable with PC
ni t
y U
C op
U SB
R
ER
C O
M
RJ-45 / USB
Adapter
C K
LO
A
AW
1
YA
SK
18
O P-
JV
Remote Operator
Extansion Cable
Communication Unit
Mounting Accesories
Braking Resistor
DC Reactor
CX-Drive
USB Cable
CX-One
LED Remote
Operator
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the J1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Omron J1000

  • Page 1: System Configuration

    The basic inverter • V/f controlled inverter • Good torque performance (150% / 3 Hz) • Double rating ND 120%/1min and HD 150%/1 min • Overload detection function (150% during 60s) • Motor thermal function • Freely configurable V/f curve •...
  • Page 2: Specifications

    Allowable voltage -15%..+10% fluctuation Allowable frequency fluctuation Based on a standard 4-pole motor for maximum applicable motor output: Heavy Duty (HD) mode with a 150% overload capacity Normal Duty (ND) mode with a 120% overlaod capacity 400 V class 40P2...
  • Page 3 Undervoltage (approx. 150 V or less for single-phase series) Following items are selectable: not provided (stop if power loss is 15 ms or longer), continuous operation if power loss is Momentary power loss approx. 0.5 s or shorter, continuous operation...
  • Page 4 Dimensions IP 20 type 0.1 to 4 kW Figure 1 Figure 2 2-M4 4-M4 Dimensions in mm Max. applicable Voltage class Inverter model JZA@ Figure motor output kW Weight 0.12 B0P1 67.5 0.25 B0P2 Single-phase 0.55 B0P4 38.5 109.5 200 V B0P7 137.5...
  • Page 5: Resistor Dimensions

    Rasmi footprint Filters Dimensions Weight Rasmi model A1000-FIV2010-RE 3x200 V A1000-FIV2020-RE A1000-FIV2030-RE A1000-FIV1010-RE 1x200 V A1000-FIV1020-RE A1000-FIV3005-RE 3x400 V A1000-FIV3010-RE A1000-FIV3020-RE Chokes Description Motor Dimensions Weight diameter Ø m A1000-FEV2102-RE < 2.2 A1000-FEV2515-RE < 15 Ø d Resistor Dimensions A1000-REJ0K15xxx A1000-REJ0K10xxx 11.5...
  • Page 6: Din Rail Mounting Bracket

    Four, M4 tap Side view (common to all the units) EZZ08122C Four, M4 tap Inverter JZA@ DIN rail mounting bracket 3-phase 200 VAC 20P1/ 20P2 / 20P4/ 20P7 EZZ08122A 21P5/ 22P2 EZZ08122B 24P0 EZZ08122C Single-phase 200 VAC B0P1/ B0P2/ B0P4 EZZ08122A...
  • Page 7: Installation

    Function (signal level) Main circuit power supply input Used to connect line power to the drive. Drives with single-phase 200 V input power use only terminals R/L1 and S/L2 R/L1, S/L2, T/L3 (T/L3 is not connected to anything) Inverter output...
  • Page 8: Control Circuit

    30 VDC, 1 A or less Relay Output common Analog monitor output Factory setting: "output frequency" 0 to +10 V output Resolution: 1/1000 0 to 10 V 2 mA or less Analog output Resolution: 8 bits Analog monitor common...
  • Page 9 Three-phase 400 V class Model JZA 40P2 40P4 40P7 41P5 42P2 43P0 44P0 Inverter capacity kVA Rated current (A) at HD Rated current (A) at ND 11.1 19.2 28.9 42.3 70.7 81.0 84.6 107.2 Inside unit 11.4 14.9 17.9 26.2 30.7...
  • Page 10: Ordering Information

    Ordering information Power Supply RS232 Communications cable with PC MCCB ni t C op U SB CX-Drive RJ-45 / USB USB Cable CX-One Adapter O P- AC Reactor Remote Operator LED Remote Extansion Cable Operator Filter Communication Unit J1000 Mounting Accesories...
  • Page 11 Allows the user to copy and verify parameter settings between drives. Can JVOP-181 USB converter / USB cable also be used as adapter to connect the drive to a PC USB port. SI-232/JC option is required A1000-CAVPC232-EE PC connection cable...
  • Page 12 100-036-418 40P4/40P7 ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. In the interest of product improvement, specifications are subject to change without notice. Cat. No. I81E-EN-01A...
