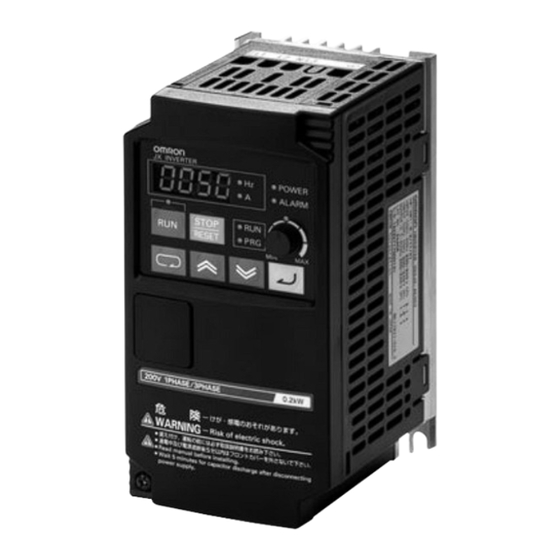

JX
Compact & Complete
• V/f controlled inverter
• Side by side mounting
• Built-in EMC filter
• Built-in RS-485 Modbus
• Overload detection function (150% during 60s)
• PID
• Micro-surge voltage suppression
• Automatic energy saving
• Emergency shut-off
• Second motor setting
• Auto carrier-frequency reduction
• PTC thermistor input
• Cooling fan switch control
• PC configuration tool: CX-Drive
• CE, UL, cUL, RoHS
Ratings
• 200 V Class single-phase 0.2 to 2.2 kW
• 200 V Class three-phase 0.2 to 7.5 kW
• 400 V Class three-phase 0.4 to 7.5 kW
System configuration
Power
Supply
MCCB
AC Reactor
*
Filter
JX
Choke
Motor
Ground
* Only needed for 3 phase 200V or to comply C1 on 3 phase 400V models
JX
RJ45 - USB Cable
Remote Operator
Extansion Cable
DC Reactor
Output Reactor
CX-Drive
CX-One
LCD 2 lines
Remote Operator
