T3400 RF Module
VHF AM
Users Guide
136584
NOVEMBER 06, 2013
Technisonic Industries
Limited
240 Traders Boulevard, Mississauga, Ontario L4Z 1W7
Tel: (905) 890-2113 Fax: (905) 890-5338
www.til.ca
Advertisement
Table of Contents
Related Manuals for Technisonic Industries Limited T3400
Summary of Contents for Technisonic Industries Limited T3400
- Page 1 T3400 RF Module VHF AM Users Guide DOCUMENT NO: 136584 REVISION: DATE OF ISSUE: NOVEMBER 06, 2013 Technisonic Industries Limited 240 Traders Boulevard, Mississauga, Ontario L4Z 1W7 Tel: (905) 890-2113 Fax: (905) 890-5338 www.til.ca This document contains designs and other information which are the property of Technisonic Industries Ltd. This document may not in whole or in part, be duplicated or disclosed or used for manufacture of the part disclosed herein, without the prior written permission of Technisonic Industries Ltd.

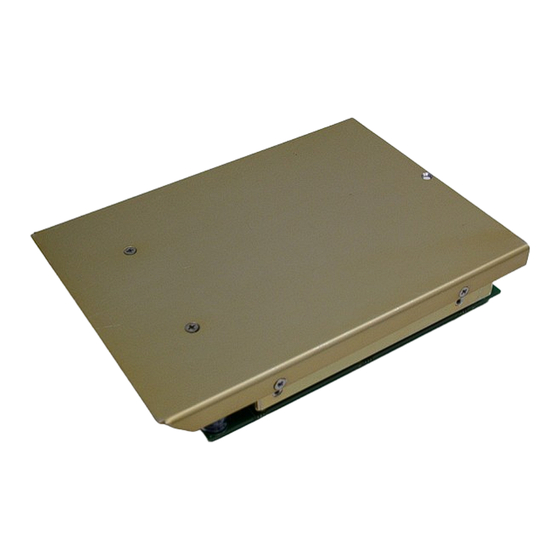

- Page 2 INTRODUCTION The T3400 RF module is a VHF AM transceiver assembly that operates in 117.975 - 137 MHz range. The transceiver module is designed to be installed and operated in the Technisonic Multiband Airborne Radio TDFM-9300/9200 platform. All external power and antenna connections are provided by the TDFM 9300 as well as controls are via the front panel and display from the TDFM 9300.
-
Page 3: Esd Caution
NOTES ESD CAUTION This unit contains static sensitive devices. Wear a grounded wrist strap and/or conductive gloves when handling printed circuit boards. FCC COMPLIANCE INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Technical Characteristics
28 VDC ± 5% Current: 300 mA minimum / 1.2A maximum Ω Audio Output Power: 500 mW into 600 FCC ID: IMA-T3400 INDUSTRY CANADA: 120A-T3400 RF Output Power: 5 Watts, 2.5 (Carrier) Frequency Range 117.975 – 137 MHz TX 117.975 – 137 MHz RX No. - Page 5 The T3400 module should be installed in the TDFM 9300 in accordance with TIL document 136569 “TDFM-9300 FINAL ASSEMBLY SSP". The T3400 is intended to be mounted in the TDFM 9300/9200 chassis and is not visible. Therefore, a second label must be applied to the outside of the TDFM 9300 that contains the following text: “TDFM 9300 Multiband Transceiver.
-
Page 6: Warning And Disclaimer
Changes or modifications not expressly approved by Technisonic Industries could void the user’s authority to operate the equipment. This manual is designed to provide information about the T3400 RF Module. Every effort has been made to make this manual as complete and accurate as possible.
