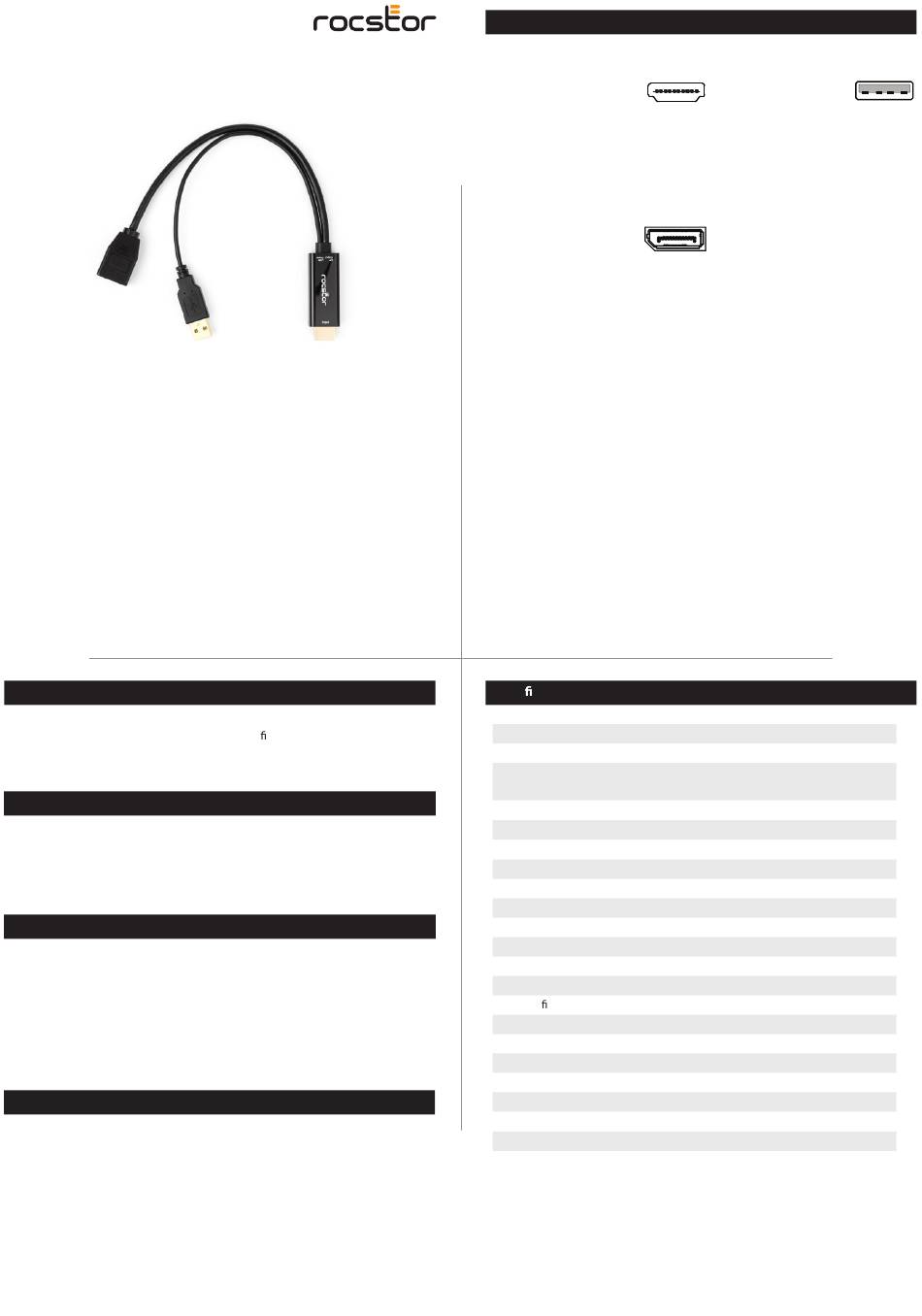

Rocstor Y10A234-B1 User Manual

HDMI® to DisplayPort™ Adapter -M/F
USB Powered - 4K 30Hz - Black
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction
This Premium Rocstor HDMI to DisplayPort Adapter allows you to transmit HDMI signal
into DP++ signal. This product supports DP1.2 speci cation with resolution up to 4096
x 2160@30Hz. Besides, it is equipped with USB-A port to supply power in case there
isn't enough power from HDMI source.
Package Contents
Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the Packaging:
• Main unit x1
• User Manual x1
Operation
1- Connect USB-A port to Power source (USB-A female port or USB Power
Adapter), if there is enough power from HDMI source, there is no need to
connect this port.
2- Connect HDMI port to HDMI source (eg: DVD, BD, PC...)
3- Connect DisplayPort port to DisplayPort monitor, or connect this port to "DP
to HDMI Adapter" or "DP to DVI" Adapter.
System Requirement
Operating systems
- Windows 7 / 8 / 10 / 11
- Android OS
- Chrome OS
- Linux OS
- Mac OS v10.5 or above
User Manual
Y10A234-B1
®
Features
Upstream:
HDMI Male
(Connect to host computer)
• Link rate up to 2.97 Gbps/data pair
• Color depth up to 48 bits
• 3D video timings
Downstream:
DisplayPort Female
• DP++
• Compliant with DP 1.2a and lower versions
• Link rate HBR2/HBR/RBR
• AUX CH 1 Mbps
• Supports eDP operation
• HDMI / DVI operation with level translator
• Max resolution up to 4KX2K@30Hz
• Supports Video Convert:
RGB/YCC (4:4:4) – 16-bit color
YCC (4:2:2) – 16-bit color
Color space conversion – YUV to RGB and
RGB to YUV
• Supports Video Resolution:
Video resolution up to 4K x 2K @ 30 Hz;
Video resolution up to 1920 x 1080 @ 120 Hz
• Supports Audio: 7.1 Ch up to 192 kHz sample rate
• HDCP 1.4 Compliant
• Low power consumption design: HDMI source can
supply enough power to this product under most
circumstances, the USB-A port is connected only
when there isn't enough power.
Speci cation
Input / Output Connector
Input
Output
Other port
Warranty
Limited Warranty
Resolution
DisplayPort
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Regulatory Approvals
Certi cations
Power
External Power Supply
Other power Supply
Product Characteristic
Size (LxHxW)
Weight
Accessory
User Manual
USB-A Male
• for power supply
HDMI Female x1
DisplayPort Femalex1
USB-A malex1(for power supply)
2 Year
Max 4096 x 2160@30Hz
0°C to + 45°C - (32°F to + 113°F)
10% to 90 % RH (no condensation)
-10°C to + 70°C - (14°F to + 158°F)
10% to 90 % RH (no condensation)
FCC, CE
USB-A
HDMI source
13"x0.79"x8.70" - 330x20x221 mm
1.80 oz - 51 gr
English Version
