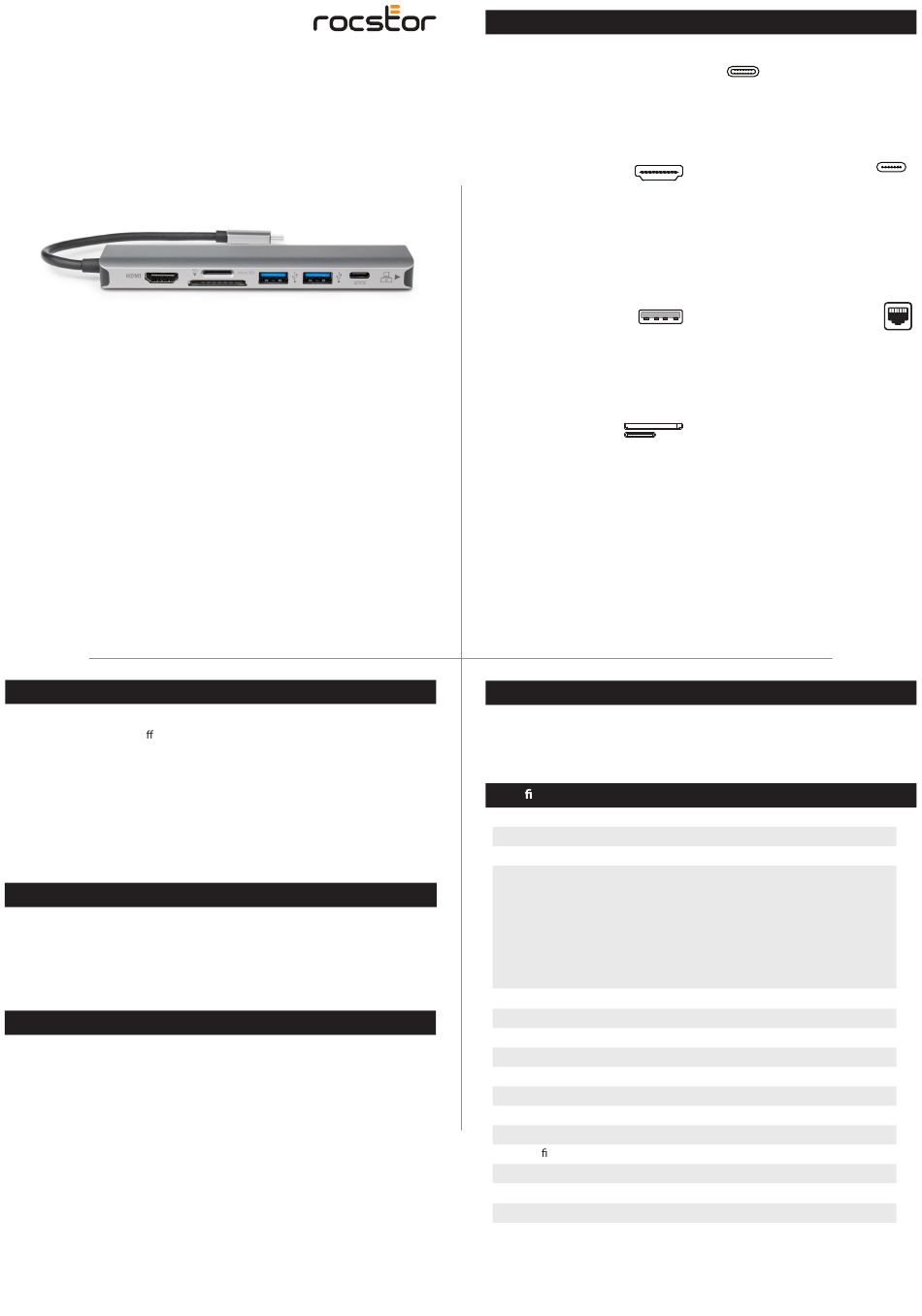

Rocstor Y10A236-A1 User Manual

USB Type-C® Multiport Adapter with SD Card Reader
4K HDMI® - Type-C 100w PD- GbE- 2 X USB 3.0
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.

Introduction

This Premium Rocstor USB-C Multiport Adapter with SD Card Reader - 4K HDMI Type C
100w PD- GbE- 2 X USB 3.0 o ers an integrated solution for power, data, video,SD
Reader and Ethernet. It allows you to connect Type-C host PC to HDMI displays for
video transmission, to USB-A devices for data transmission. It also helps the host PC to
get access to super speed Ethernet through RJ45 port. Besides, the SD/MMC and Micro
SD card slot allow to read the information of the external memory card in the host PC.
The USB-C female port supports to charge for the host computer and supply power for
this product simultaneously. It can work on all DP Alt mode supported Type-C host.

Package Contents

Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the Packaging:
• Main unit x1
• User Manual x1

System Requirement

Host computer with an available USB-C Port
- USB 3.0/3.1/3.2
Operating systems
- Windows 7 / 8 / 10 / 11
- Android OS
- Chrome OS
- Linux OS
- Mac OS v10.5 or above
User Manual
Y10A236-A1
®

Features

Upstream:
USB Type-C Male (Connect to host computer)
• Type-C Malex1(Connect to host) Support DP1.4 Alt mode
Note: To get max bandwidth, the host computer should support DP1.4 Alt mode.
Downstream:
HDMI
• Supports HDMI max 4k/60Hz
• Supports High Dynamic Range(HDR)
• Supports multiple color formats:RGB
8/10/12 bps;YCbCr4:4:4/YCbCr4:2:2/Y
CbCr4:2:0 8/10/12 bpc
• Supports HDCP 2.2 and HDCP1.4
• Supports HDCP1.4
USB-A X2
• The total output of the 2 USB-A is
10W(5V@2A), 1 port supports max 7.5W
(5V@1.5A)
• Max 5Gbps bandwidth for each USB-A
SD/Micro SD 3.0
• Supports Secure Digital v3.0 UHS-I (Ultra
High Speed) : SDR12 (12.5Mbyte/s)/
SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/
DDR50(50Mbyte/s)/SDR104(104Mbyte/s)
• Allow card slots to work simultaneously.
2

How to Use

Plug the USB-C male connector of the Hub into the USB-C port on your USB-C laptop.
To charge a USB device, connet the USB device to the USB 3.0 (Type-A).
Speci cation

Input / Output Connector

Input
Output

Warranty

Limited Warranty

Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity

Regulatory Approvals

Certi cations

Power Supply

USB-C PD Charging Port

Accessories

User Manual
Type-C (for PD Charging)
• Type-C Femalex1
• Supports PD Charging 100W (20V/5A)
• Supports Fast Role Swap of PD 3.0, the
connected device will not get
disconnected while plugging in and
out PD Adapter
RJ45 x1
• Supports 10/100/1000Mbps bandwidth
Type-C Male x1
HDMI Female x1
USB-C Female (for Charging) x1
USB 3.0 Female x2
RJ45 X1
SD card slot x1
Micro SD card slot x1
3 Year
0°C to + 45°C
10% to 90 % RH (no condensation)
-10°C to + 70°C
10% to 90 % RH (no condensation)
FCC, CE
100W(20V/5A)
English Version
