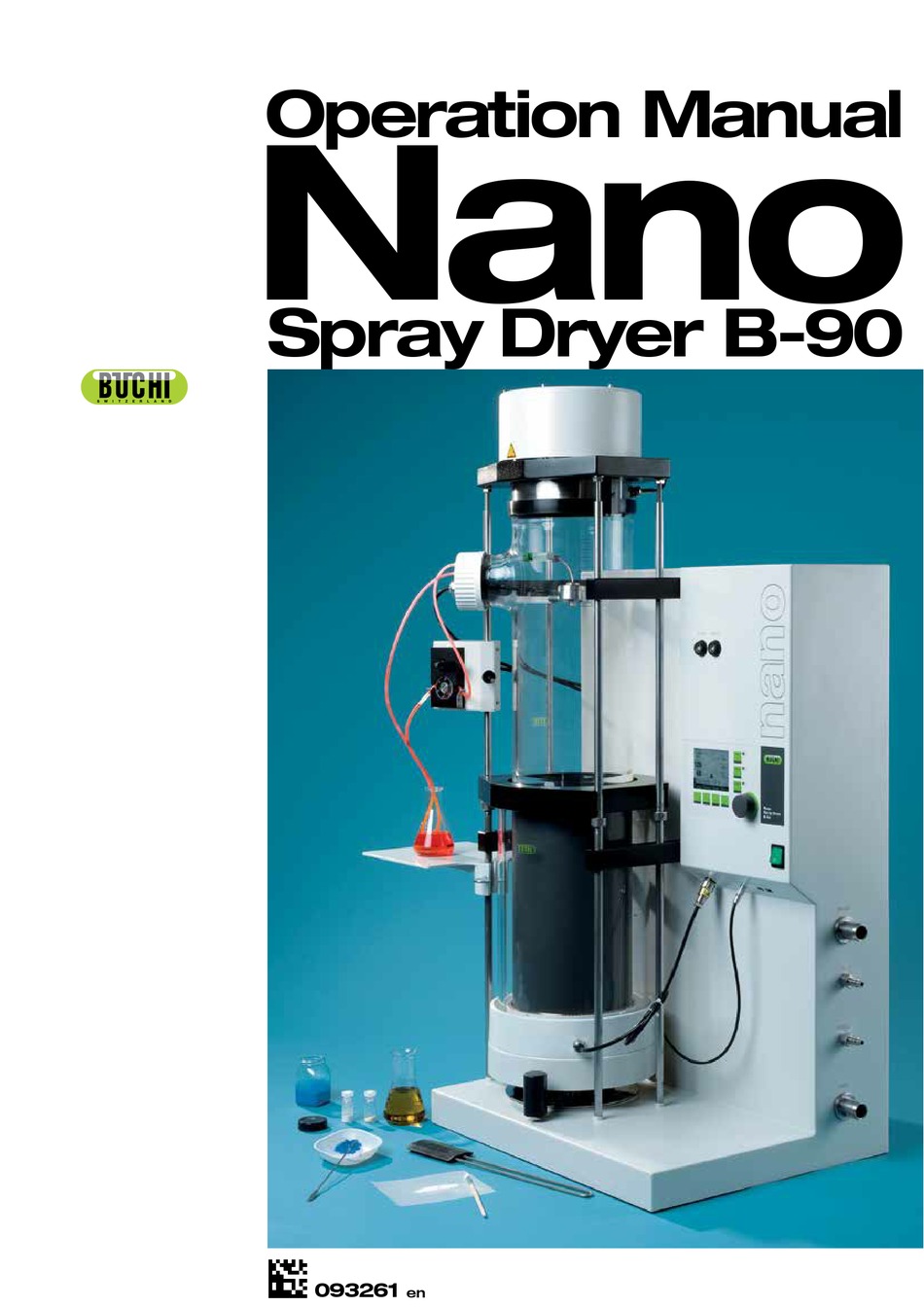

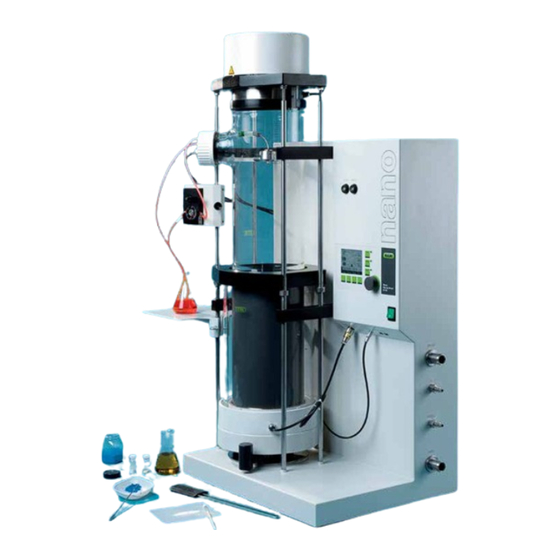

Operation Manual
Nano
Spray Dryer B�90
093261
en

Advertisement

Table of Contents
loading

Related Manuals for Buchi Nano B-90

Summary of Contents for Buchi Nano B-90

  • Page 1 Operation Manual Nano Spray Dryer B�90 093261...

  • Page 3: Table Of Contents

    No technical modifications may be made to the instrument without the prior written agreement of BUCHI. Unauthorized modifications may affect the system safety or result in accidents. This manual is copyright. Information from it may not be reproduced, distributed, or used for competi- tive purposes, nor made available to third parties.
  • Page 4 Table of contents Putting into operation ........34 Installation site.
  • Page 5 Table of contents Other operation modes ....... . 73 6.9.1 Inert Loop B-295 operation .

  • Page 6: About This Manual

    1 About this manual About this manual This manual describes the Nano Spray Dryer B-90 and provides all information required for its safe operation and to maintain it in good working order. It is addressed to laboratory personnel in particular. Abbreviations EPDM Ethylene Propylene Dimonomer...

  • Page 7: Safety

    2 Safety Safety This chapter highlights out the safety concept of the instrument and contains general rules of behavior and warnings from direct and indirect hazards concerning the use of the product. For the users safety, all safety instructions and safety messages in the individual chapters shall be strictly observed and followed.

  • Page 8: Improper Use

    2 Safety Improper use Applications not mentioned in section 2.2 are considered to be improper. Applications which do not comply with the technical data (see section 3 of this manual) are also considered to be improper. The operator bears the sole risk for any damages or hazards caused by improper use! The following uses are expressly forbidden: •...
  • Page 9 2 Safety Table of supplementary safety information symbols The below reference list incorporates all safety information symbols used in this manual and their meaning. Symbol Meaning General warning Electrical hazard Explosive gases, explosive environment Harmful to life-forms Hot item, hot surface Device damage Inhalation of substances Pressurized gas/air...

  • Page 10: Product Safety

    2 Safety Wear laboratory coat Wear protective goggles Wear protective gloves Heavy weight, lifting requires more than one person Additional user information Paragraphs starting with NOTE transport helpful information for working with the device / software or its supplementaries. NOTEs are not related to any kind of hazard or damage (see example below). NOTE Useful tips for the easy operation of the instrument / software.
  • Page 11 2 Safety Danger Death by suffocation or serious poisoning by inhalation of inert gases. • Do not inhale inert gases • Directly withdraw released gases and gaseous substances by sufficient ventilation • Only operate the instrument in ventilated environments • Before operation, check all parts, connections and sealings involved in the gasflow for proper sealing •...
  • Page 12 2 Safety Danger Death or serious poisoning by inhalation or incorporation of dried particles at recovery. • Wear safety goggles • Wear safety gloves • Wear a suitable protective mask • Wear a laboratory coat • Do not inhale dried particles •...
  • Page 13 2 Safety Caution Risk of minor poisoning by inhalation of ozone. • Directly withdraw released gases and gaseous substances by sufficient ventilation Caution Risk of minor or moderate burnings when handling hot parts. • Do not touch hot parts • Let the system cool down for some minutes after use Notice Risk of instrument short-circuits and damage by liquids.

  • Page 14: Warning Labels On Housing

    2 Safety 2.5.2 Warning labels on housing The below warning label can be found at the gas outlet connector on the right side of the Nano Spray Dryer B-90. Meaning Ozone formation in the electric field of the electrostatic particle collector when using oxygen containing gases as drying gas (like air).

  • Page 15: General Safety Rules

    Modifications to the instrument are only permitted after prior consultation with and with the written approval of the manufacturer. Modifications and upgrades shall only be carried out by an authorized BUCHI technical engineer. The manufacturer will decline any claim resulting from unauthorized modifi- cations.

  • Page 16: Technical Data

    Accessories are solvent resistant The scope of delivery can only be checked according to the individual delivery note and the listed order numbers. NOTE For additional information about the listed products, see www.buchi.com or contact your local dealer. 3.1.1 Standard instrument...

  • Page 17: Standard Accessories

    3 Technical data 3.1.2 Standard accessories Table 3-2: Standard accessories Product Order no. Spray head 051510 Spray head holder 051508 ✕ Set of 3 spray caps 4.0 µm 051747 Set of 3 spray caps 5.5 µm 051748 Set of 3 spray caps 7.0 µm 051749 HV–Electrode protected 11055174...
  • Page 18 3 Technical data Table 3-2: Standard accessories (cont.) Product Order no. ① Spray cylinder 051511 ② Glass cylinder extension 051549 Glass insulation cylinder (no picture) 051663 Heater complete 051504 Lifting device 051607 «Nano Spray Dryer Records» Software 051776 B-90 Operation Manual, Version B...

  • Page 19: Standard Accessories With The Nano Spray Dryer B-90 Advanced

    Upgrade set is for organic solvent operation in ‘closed loop’ with the Inert Loop B-295 or Dehu- midifier B-296. The upgrade set includes solvent resistant tubing, inert gas regulation valves, oxygen sensor with oxygen analyser. The installation requires support of a BUCHI service engi- neer.

  • Page 20: Optional Accessories

    3 Technical data 3.1.4 Optional accessories Table 3-4: Optional accessories Product Order no. Inert Loop B-295, 50 Hz, 200 V 044779 Inert Loop B-295, 50 Hz, 230 V 044701 Inert Loop B-295, 60 Hz, 200 V 046345 Inert Loop B-295, 60 Hz, 230 V 046344 Upgrade set B–295 for closed cycle 051783...
  • Page 21 3 Technical data Table 3-4: Optional accessories (cont.) Product Order no. Inlet filter 011235 Air maintenance unit 004366 Oil-free air compressor, 230V / 50Hz 027907 Oil-free air compressor, 230V / 60Hz 11055736 Trolley 041257 B-90 Operation Manual, Version B...

  • Page 22: Technical Data

    3 Technical data Table 3-4: Optional accessories (cont.) Product Order no. Stand plate 051775 Technical data Table 3-5: Technical data Nano Spray Dryer B-90 Power consumption max. 1500 W 100–240 VAC ± 10 % Connection voltage Input fuse 12 A Frequency 50 / 60 Hz Heating capacity...
  • Page 23 3 Technical data Table 3-5: Technical data Nano Spray Dryer B-90 (cont.) Dimensions (W × H × D) Short set-up 58×110×55 cm Tall set-up 58×150×55 cm Weight Short set-up 65 kg Tall set-up 70 kg Table 3-6: Technical data Inert Loop B-295 Power consumption max.

  • Page 24: Materials Used

    3 Technical data Materials used Table 3-9: Materials used Component Material designation Glass assembly 3.3 borosilicate glass Heater Aluminum and stainless steel Spray head Stainless steel Spray cap membrane Stainless steel Spray cap o-ring EPDM75 Feeding tubes Silicone and tygon Tube connector at feeding tube PEEK Particle collecting tube...

  • Page 25: Description Of Function

    4 Description of function Description of function This chapter explains the basic working principle of the Nano Spray Dryer B-90 Basic (‘open loop’ only) and the Nano Spray Dryer B-90 Advanced (equipped with O -sensor and inert gas regula- tion valves for ‘closed loop’ mode). It also shows how the instruments are structured and provides a general functional description of their assemblies.

  • Page 26: Spray Drying Process Overview

    4 Description of function Optional drying gas recycling in ‘closed loop’ mode: In ‘closed loop’ mode of the Nano Spray Dryer B-90 Advanced the “Drying gas outlet” i is connected via the Inert Loop B-295 or Dehumidifier B-296 and Aspirator to the “Drying gas inlet” a. 4.1.2 Spray drying process overview The drying process takes place inside the drying cylinder.

  • Page 27: Spray Generation

    4 Description of function Processing inside the drying cylinder The following draft offers a more detailed view about the basic spray drying process. The drying gas (a) passes the heater (b) and the vertically or angular aligned spray head (e). The injected micro doplets of the sample material are dried while beeing vortexed in the gas flow inside the spray cylinder (f).

  • Page 28: Drying Air Generation

    Aspirator in blowing mode If there is no compressed air available in the laboratory, the BUCHI Aspirator unit with inlet filter (order no. 051700) can be used to establish the required drying air flow rate. The Aspirator can be connected directly to the inlet of the Nano Spray Dryer B-90 without a pressure regulating valve.

  • Page 29: Sample Feed Circulation With Peristaltic Pump

    4 Description of function Nano Spray Dryer B-90 Basic Dehumidifier c (optional) B-296 Feed Control Aspirator COOL Product Condensate Exhaust gas Inlet filter Outlet filter a Inlet filter to filter out dust and particles b Aspirator as air supply source c Optional Dehumidifier B-296 NOTE The Aspirator is also used with a Nano Spray Dryer B-90 Advanced in ‘closed loop’...

  • Page 30: Inert Loop B-295

    Aspirator to the Nano Spray Dryer B-90 Advanced. Dehumidifier B-296 If mixtures of organic solvents and water are used in ‘closed loop’ configuration, BUCHI strongly recommends to install the additional Dehumidifier B-296. The Dehumidifier B-296 is condensing the water to prevent water from entering the Inert Loop B-295.

  • Page 31: Dehumidifier B-296

    4 Description of function Dehumidifier B-296 The Dehumidifier B-296 is an accessory which can dry filtered gas at constant and reproducible humidity conditions with a dew point of 3 to 5 °C. The humidity condensates while passing the refrig- erator of the Dehumidifier B-296 and is being collected in a closed condensate bottle. ‘open loop’...
  • Page 32 4 Description of function Use in ‘closed loop’ The Dehumidifier B-296 in ‘closed loop’ set-up allows spray drying of water-organic solvent mixtures, oxygen sensitive substances or flammable powders under safe conditions. Nano Spray Dryer B-90 Advanced Aspirator Feed Condensate Control Dongle Exhaust Dehumidifier...

  • Page 33: Connection At The Nano Spray Dryer B-90

    4 Description of function 4.10 Connection at the Nano Spray Dryer B-90 Front connections Socket label: Description: a HIGH VOLTAGE Socket for particle collector with plug thread for reliable plug locking Outlet temperature sensor socket c B-295 Inert Loop B-295 communi- cation socket;...

  • Page 34: Putting Into Operation

    5 Putting into operation Putting into operation This chapter describes how the instrument has to be installed. It also gives instructions for the initial startup. NOTE Inspect the instrument for damages during unpacking. If necessary, prepare a status report imme- diately to inform the postal company, railway company or transportation company.

  • Page 35: Installing The Nano Spray Dryer B-90

    5 Putting into operation Installing the Nano Spray Dryer B-90 Switch off the instrument and remove the power cord before any work described in section 5. 5.2.1 Tall set-up with long metal bars NOTE Parts (a – e) and the black holders (i), are factory pre-installed. a Screw the four lower metal bars into the housing basement with a flat spanner.

  • Page 36: Short Set-Up With Short Metal Bars

    5 Putting into operation 5.2.2 Short set-up with short metal bars NOTE Parts (a – e) and the black holders (g), are factory pre-installed. a Screw the four lower metal bars into the housing basement with a flat spanner. b Fix the four adjusting rings onto the previously installed metal bars. c Mount four short headless screws onto the lower metal bars.

  • Page 37: Sub-Assembly Installations

    5 Putting into operation Sub-assembly installations Switch off the instrument and remove the power cord before any installation work. 5.3.1 Lifting device a Position the lifting device, using the three bottom sided timing holes, onto the matching knobs at the instrument’s basement.

  • Page 38: Electrode Assembly Installation

    5 Putting into operation 5.3.2 Electrode assembly installation Caution Risk of minor or moderate injury by electric shock. • Switch off the instrument before connecting or disconnecting the high-voltage cable • Do not touch the high-voltage cable with wet hands •...
  • Page 39 5 Putting into operation e Use the protective grid holder to carefully insert the HV-electrode into its seat at the bottom plate of the particle collector. Clean and dry this part before installation. f To unlock the protective grid, open the spring lock at the handling knob first.

  • Page 40: Glass Cylinder Installation

    5 Putting into operation g Put the plastic distance sheet on top of the electrode cylinder. h Put the centerpiece holder on the plastic distance sheet. i Adjust the four screw rings on the metal bars to touch the underside of the distance sheet.

  • Page 41: Heater Module Installation

    5 Putting into operation Cylinder assembly short set-up a Mount a flat sealing ring on the bottom of the spray cylinder. b Position the second flat sealing ring on the spray cylinder. c Place the spray cylinder on the centerpiece holder. All sealings are part of the sealing set (order no.
  • Page 42 5 Putting into operation c Mount the inlet temperature sensor at the heater module. Keep the temperature sensor end about 70 mm out of the screw connection. Use a flat spanner to tighten the screw fitting. d Place the heater module on the metal screw bars. NOTE •...

  • Page 43: Spray Head Assembling And Installation

    5 Putting into operation Spray head assembling and installation The spray head is a major part of the whole spray drying process. To ensure proper function and highest yield, dry and clean conditions of all parts during assembling and installation are required. For detailed cleaning information see section 8.6.1.
  • Page 44 5 Putting into operation j Feed tubing k Spray cap NOTE • Only use original BUCHI parts for installation. • Small parts (e–j) are available in the set „Set of feed tubing connections complete“ with order no. 051768. Assembly steps Put the “Silicone seal”...
  • Page 45 5 Putting into operation Introduce the “Seal for electrical cable” e and tighten the cable bushing using a flat spanner. Introduce the “Feed tubing” j through the spray head. Screw the “Spray cap” k onto the spray head. Introduce the “Feed tubing” k into the “Fittings”...
  • Page 46 5 Putting into operation 10. Use the mounting tool a and the BUCHI torque wrench b for the installation of the spray cap. Installation steps: 11. Use the thumb screw and fixate the mounting tool at one of the lower metal bars of the Nano Spray Dryer B-90.

  • Page 47: Spray Head Installation

    5 Putting into operation 5.4.2 Spray head installation The spray head can be mounted at the spray head holder in either an angular or horizontal position. The most appropriate position depends on the sample product and its spray drying requirements. In all three angular positions the thermal load of the spray head is considerably decreased because the spray head is out of the central flow of the hot drying gas.

  • Page 48: Peristaltic Pump Height Adjustment And Fixation

    5 Putting into operation 5.5.1 Peristaltic pump height adjustment and fixation a Mount the peristaltic pump on a metal bar and fix it with the thumb screw. b To adjust the height, unfasten the thumb screw and move the pump to the optimal height. Fasten the thumb screw again to fixate the pumps position.

  • Page 49: Feeding Tube Installation

    5 Putting into operation 5.5.3 Feeding tube installation Steps before installation: • Switch off the Nano Spray Dryer B-90. • Place the sample vessel on the top cover of the instrument or on the stand plate. • Choose the silicone tubing for aqueous applications or alternatively the appropriate tygon type for other solvents (see also Table 5-1 for a list of most common solvents).
  • Page 50 5 Putting into operation Example photo with attached feeding tube and adapter piece (transparent adapter on the pump inlet at the right side). Table 5-1: Choosing the feeding tube material Solvent Silicone tube Tygon MH 2075 Tygon F 4040 A Methanol suitable suitable...

  • Page 51: Drying Gas Supply

    5 Putting into operation Drying gas supply The kind of drying gas supply (air or inert gases) depends on the kind of processed sample mate- rial. There are significant differences between ‘open loop’ and ‘closed loop’ configuration of supply and exhaust gases. Strictly follow the configuration descriptions in this section as well as the defined proper and improper use in section 2 for safe operation.

  • Page 52: Open Loop' Air Supply Configuration

    To ensure the optimal drying air performance in this opera- tion mode, the supplied air has to be dry and free of impurities. If this can not be guaranteed, BUCHI recommends the use of a Wilkerson air maintenance unit (see next picture).

  • Page 53: Closed Loop' Gas Supply Configuration

    5 Putting into operation 5.6.2 ‘closed loop’ gas supply configuration The Nano Spray Dryer B-90 Advanced has been designed to be used in ‘closed loop’. This mode is universal and can be used to spray dry aqueous as well as solvent mixtures with air or inert gas under safe conditions.

  • Page 54: Aspirator Installation Modes

    5 Putting into operation • Disconnect the power cord from the mains. • Gently pull off the back panel of the housing and put it aside. The outlet filter is now directly accessible. • Loosen the hose clamps to remove the filter element. •...

  • Page 55: Aspirator In 'Closed Loop' Configuration

    5 Putting into operation 5.7.2 Aspirator in ‘closed loop’ configuration This operation mode is only available in combination with a Nano Spray Dryer B-90 Advanced model. a Gas inlet (connection to outlet of Inert Loop B-295 or Dehumidifier B-296) b Gas outlet towards gas inlet connector of the Nano Spray Dryer B-90 in Polypress design c Output flow-through selector (frequency based regulation)
  • Page 56 5 Putting into operation Danger Death or serious poisoning by gases or particles at O – sensor or filter malfunction • Exchange defective O – sensor immediately • Exchange O – sensor regularly within the specified maintenance intervals • Exchange clogged filters immediately •...

  • Page 57: Main Device Installation

    5 Putting into operation 5.8.1 Main device installation During the process, a constant inert gas flow (N or CO ) is fed into the gas loop to refresh the used drying gas. This constant gas feeding requires an exhaust gas output to balance the pressure inside the gas circuit, thereforee the Inert Loop B-295 is equiped with a hose connection for the exhaust gas at its right side.

  • Page 58: Dehumidifier B-296 Installation

    5 Putting into operation Installation steps Disconnect the power cord from the mains and depressurize all system parts. Install the check valve at the exhaust gas tubing outlet and lead it to a fume hood or ventilation system. Connect all tubes (see pictures). Connect the communication cable to the Nano Spray Dryer B-90 Advanced.

  • Page 59: Dehumidifier B-296 In 'Open Loop' Configuration

    5 Putting into operation 5.9.1 Dehumidifier B-296 in ‘open loop’ configuration When aqueous sample materials are being processed in open-mode and with the Aspirator with inlet filter as an air supply source, the use of the Dehumidifier B-296 is highly recommended. a Input/Output gas connectors (Polypress style) b System status display c Power switch...

  • Page 60: Dehumidifier B-296 In 'Closed Loop' Configuration With Out Inert Loop B-295

    5 Putting into operation 5.9.2 Dehumidifier B-296 in ‘closed loop’ configuration with out Inert Loop B-295 When mixtures of organic solvents and water (with less than 50 % solvents) are being processed in ‘closed loop’ configuration, the use of the Dehumidifier B-296 in combination with a heat exchanger is highly recommended.
  • Page 61 5 Putting into operation a Outlet of the Nano Spray Dryer B-90 c Outlet of the Inert Loop B-295 b Outlet of the Dehumidifier B-296 Installation steps Disconnect the power cord from the mains and depressurize all system parts. Put the holder of the adsorption column e on the Inert Loop B-295 and fix it with the adhesive tape.

  • Page 62: Final Installation Check

    5 Putting into operation 5.10 Final installation check This check has to be carried out after every installation and prior to the first spray drying process. All connected supply media (e.g. mains voltage and gas pressure) must match the technical data of the installed system or system set-up.

  • Page 63: Operation

    6 Operation Operation This chapter gives examples of typical instrument applications and instructions on how to operate the instrument properly and safely. See also section 2.5 “Product safety” for general warnings. Starting up the instrument • Make sure the Nano Spray Dryer B-90 is properly connected to the mains supply. •...

  • Page 64: Menu Structure Overview

    6 Operation 3 — Pump rotation direction alternates every 3 seconds 4 — Pump rotation direction alternates every 6 seconds Spray selection Select a spray head output between 0 % and 100 % spray rate. This directly effects the throughput of the spray head.

  • Page 65: Display Elements And Menu Functions

    6 Operation Display elements and menu functions 6.4.1 Operating controls Multifunctional buttons The multifunctional buttons below the screen are programmable. Their actual use is displayed on the screen directly above the buttons. a Go back one step/Escape b Move cursor upwards c Move cursor downwards d Enter next menu level/OK (confirm selection) Rotary knob...

  • Page 66: View Parameters Menu

    6 Operation 6.4.2 View parameters menu To enter the “Menu” press the corresponding multifunctional button below the screen. Inside the menu, use the multifunctional buttons for navigation. The “View parameters” menu and its sub menus provide information about the actual system status. It is accessible at any time and can supply the user with useful information about ongoing processes.

  • Page 67: Gas Mode Selection Menu

    6 Operation 6.4.3 Gas mode selection menu To enter the “Menu” press the corresponding multifunctional button below the screen. Inside the menu, use the multifunctional buttons for navigation. Select “Gas mode” and enter the selection. Select the correct setting for the actual spray drying process and confirm the selection with “OK”.

  • Page 68: Configuration Menu

    6 Operation 6.4.4 Configuration menu To enter the “Menu” press the corresponding multifunctional button below the screen. Inside the menu, use the multifunctional buttons for navigation to “Configuration” and confirm the selection. Items in menu “Configuration”: Description / available parameters: Units •...

  • Page 69: Firmware Calibration Menu

    6 Operation 6.4.5 Firmware calibration menu To enter the “Menu” press the corresponding multifunctional button below the screen. Inside the menu, use the multifunctional buttons for navigation to “Calibration”. Stop the gas flow and confirm by pressing the “OK” button to recalibrate the internal flow sensor of the Nano Spray Dryer B-90. NOTE The calibration should be performed periodically to ensure best spray drying results.

  • Page 70: Starting A Spray Drying Process

    6 Operation Starting a spray drying process System preconditions All system items must be correctly installed according to the kind of set-up, see section 5 for more information. Carry out a final installation check (see section 5.9) before every spray drying process. See also section 2.5 “Product safety”...

  • Page 71: Optimizing Parameters

    < 1.6 Application information To give an overview of the parameter settings best suited for a specific process, special training papers can be downloaded directly from our webpage (www.buchi.com). For special applications please contact us. B-90 Operation Manual, Version B...

  • Page 72: End Of Spray Drying Process

    6 Operation End of spray drying process Caution Risk of minor or moderate burning when handling hot parts. • Do not touch hot parts • Let the system cool down for some minutes after use Finish a spray drying process Switch off the heater by pressing the “Heat”...

  • Page 73: Other Operation Modes

    • BUCHI particle scraper (order no. 11055338) • BUCHI weighing paper in A4 format (order no. 11055339) Particle recovery procedure Place a blank sheet of weighing paper on a free area inside a fume hood. Remove the collector cylinder from the bottom basement of the particle collector.
  • Page 74 6 Operation Danger Death or serious poisoning by gases or particles at O – sensor or filter malfunction • Exchange defective O – sensor immediately • Exchange O – sensor regularly within the specified maintenance intervals • Exchange clogged filters immediately •...

  • Page 75: Dehumidifier B-296 Operation

    6 Operation NOTE Inert gas pressure above the values (see Inert Loop B-295 operation, step 5) will activate the safety pressure relief valve, causing inert gas loss. Aqueous solutions or mixtures of organic solutions and water may freeze in the heat exchanger of the Inert Loop B-295.

  • Page 76: Using The Nano Spray Dryer Records Software On A Pc

    6 Operation 11. Press the “Spray” button again to confirm. The system is now ready for the spray drying process. 12. Change from the solvent solution to the product solution while the system is still spraying. NOTE Before switching from one organic solvent solution to another it is highly recommended to dry the working ‘closed loop’...
  • Page 77 6 Operation Initial view and program functions Menu bar entries: Accessible sub entries: File • New LabBook • Open LabBook • Close LabBook • Exit View • Show tree Tools • Selftest • Options Help • Contents • Import License •...
  • Page 78 6 Operation Tool bar functionality a b c d e f g h i j k l Tool bar items: Tool functionality: Start/Stop recording New LabBook Delete LabBook Open existing LabBook Close LabBook Import LabBook Export LabBook Open Experiment Show Report (Create a pdf-file with a choosen data set) Export to CSV (Character-Separated Values) Close Experiment Delete Experiment...
  • Page 79 6 Operation Program options The program can be configured in the “Options” menu. • Select the appropriate data recording rate and storage interval • Select the units of temperature, pressure and gas flow • Choose the language of the user interface (default is English) •...
  • Page 80 6 Operation Experiment metadata LabBooks can be equipped with additional metadata for each experiment. These metadata can hold comments, unique attributes for identification and information about the drying conditions and system settings. This information will show up in PDF reports. •...
  • Page 81 6 Operation Access recorded data Recorded spray drying data can be displayed in plot or table view. All main spray drying process parameters like inlet and outlet temperatures, pressure and gas flow are recorded and visualized in the “Plot View”. The plots can be zoomed-in via mouse action. Use the computer mouse to mark an area of interest on a plot.
  • Page 82 The self-test instructions and procedures are displayed on the screen of the Nano Spray Dryer B-90. At the end of the self-test, a PDF report is generated. It can be used as a support tool by BUCHI representatives for service and trouble shooting.

  • Page 83: Maintenance And Repairs

    7 Maintenance and repairs Maintenance and repairs This chapter gives instructions on maintenance work to be performed in order to keep the instru- ment in a good and safe working condition. All maintenance and repair work requiring the opening or removal of the instrument housing must be carried out by trained personnel and only with the tools provided for this purpose.

  • Page 84: Customer Service

    Such training and knowledge can only be provided by BUCHI. Addresses of official BUCHI customer service offices are given on the BUCHI website under: www.buchi.com.

  • Page 85: Oxygen Sensor

    7 Maintenance and repairs Caution Risk of minor or moderate cuts when handling damaged glass parts. • Handle glass parts with care • Visually inspect every glass part before mounting • Exchange damaged glass parts immediately • Do not touch cracks or bits of broken glass with bare hands Oxygen sensor The live time of the oxygen sensor in the Nano Spray Dryer B-90 Advanced or Inert Loop B-295 is approx.

  • Page 86: Outlet Filter

    7 Maintenance and repairs 7.6.2 Outlet filter A clogged outlet filter results in a pressure drop between inside the Nano Spray Dryer B-90. Notice Risk of instrument damage by internal overpressure. • External supply pressure must meet the system specifications •...

  • Page 87: Troubleshooting

    “Remedy”. Malfunctions or errors which are not listed in the table are to be corrected by a BUCHI trained tech- nical engineer who has access to the official service manuals. In this case, please refer to your local BUCHI customer service agent.
  • Page 88 HV-connector not plugged in or Switch off the device and try defective wiring error again. Check the HV-module, connection. If the error still occurs , contact the BUCHI customer service. Relative pressure sensor 1 Sensor not connected or defec- Contact BUCHI customer service...

  • Page 89: Malfunctions And Their Remedy

    Re-select a new inlet temperature room temperature Fuse has been activated Reset fuse manually Heater defective Contact the BUCHI customer service Faulty gas flow direction or no flow Check pipe system in the heating system B-90 Operation Manual, Version B...
  • Page 90 8 Troubleshooting Table 8-2: Malfunctions and their remedy (cont.) Spray head blocked Product is too concentrated Use a lower sample concentration Change to a bigger spray cap / mesh Clean the spray head and spray cap Product drips in spray cylinder No spray flow Turn on spray Insufficient spray flow...

  • Page 91: Shutdown, Storage, Transport And Disposal

    9 Shutdown, storage, transport and disposal Shutdown, storage, transport and disposal This chapter instructs how to shut down and to pack the instrument for storage or transport. Specifi- cations for storage and shipping conditions can also be found listed here. Storage and transport Switch off the instrument and remove the power cord.

  • Page 92: Disposal

    9 Shutdown, storage, transport and disposal Disposal For instrument disposal in an environmentally friendly manner, a list of materials is given in chapter 3. This helps to ensure that the components can be separated and recycled correctly. You have to follow valid regional and local laws concerning disposal. For help, please contact your local authorities! NOTE When returning the instrument to the manufacturer for repair work, please copy and complete the...
  • Page 93 9 Shutdown, storage, transport and disposal Health and Safety Clearance Declaration concerning safety, potential hazards and safe disposal of waste. For the safety and health of our staff, laws and regulations regarding the handling of dangerous goods, occupational health and safety regulations, safety at work laws and regulations regarding safe disposal of waste, e.g.

  • Page 94: Spare Parts

    This chapter lists spare parts, accessories and options including their ordering information. Only order spare parts and consumables from BUCHI to maintain the warranty status and to assure best performance and reliability of the system and affected components. Any modifications to the spare parts used are only allowed with the prior written permission of the manufacturer.

  • Page 95: Glass Parts And Mounting Items

    10 Spare parts 10.2 Glass parts and mounting items Table 10-2: Glass parts and mounting parts Description Order no. Spray cylinder 051511 Glass cylinder 051549 Sealing set complete 051778 Tool box B-90 051767 Centerpiece holder 051630 Support metal bar 051575 B-90 Operation Manual, Version B...

  • Page 96: Particle Collector, Heater And Lifting Device Items

    10 Spare parts 10.3 Particle collector, heater and lifting device items Table 10-3: Electrical particle collector, heater and lifting device Description Order no. Particle collecting tube 051662 Glass insulation tube 051663 Collector base complete 051669 Nano particle scraper 11055338 Particle collection paper (100 pages) 11055339 Heater complete 051504...

  • Page 97: Filters

    10 Spare parts 10.4 Filters Table 10-4: Outlet filter Description Order no. Outlet filter 051656 Table 10-5: Inlet filter Description Order no. Inlet filter complete 011235 Replacement filter with seal 011238 Tube Flexflyte D51mm (0.8 m) 011240 10.5 Tubing and accessories Table 10-6: Tubing Description Order no.

  • Page 98: Inert Loop B-295, Dehumidifier B-296 And Adsorption Column

    10 Spare parts Table 10-6: Tubing (cont.) Peristaltic pump complete 051735 Silicone feed tubing (per m) 004138 Tygon tubing MH 2075 transp. (per m) 046314 Tygon tubing F 4040 A yellow (per m) 046315 Tube Cutter 019830 PC software Nano Spray Dryer records 051776 USB Kabel 2.0 A-B (2.0 m) 11055310...
  • Page 99 10 Spare parts Table 10-7: Inert Loop B-295, Dehumidifier B-296 and Adsorption column (cont.) Description Order no. Upgrade set B-296 for closed cycle 051780 a Woulff bottle 041875 b Screw cap SVL 22 003577 c Closed screw cap SVL 22 005222 Gasket 22×17 PTFE 005155...

  • Page 100: Declarations And Requirements

    11 Declarations and requirements Declarations and requirements 11.1 FCC requirements (for USA and Canada) English: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to both Part 15 of the FCC Rules and the radio interference regulations of the Canadian Department of Communications.

  • Page 101: Declaration Of Conformity

    11 Declarations and requirements 11.2 Declaration of conformity B-90 Operation Manual, Version B...
  • Page 104 BÜCHI Labortechnik AG CH-9230 Flawil 1 / Switzerland T +41 71 394 63 63 F +41 71 394 65 65 www.buchi.com Quality in your hands...
