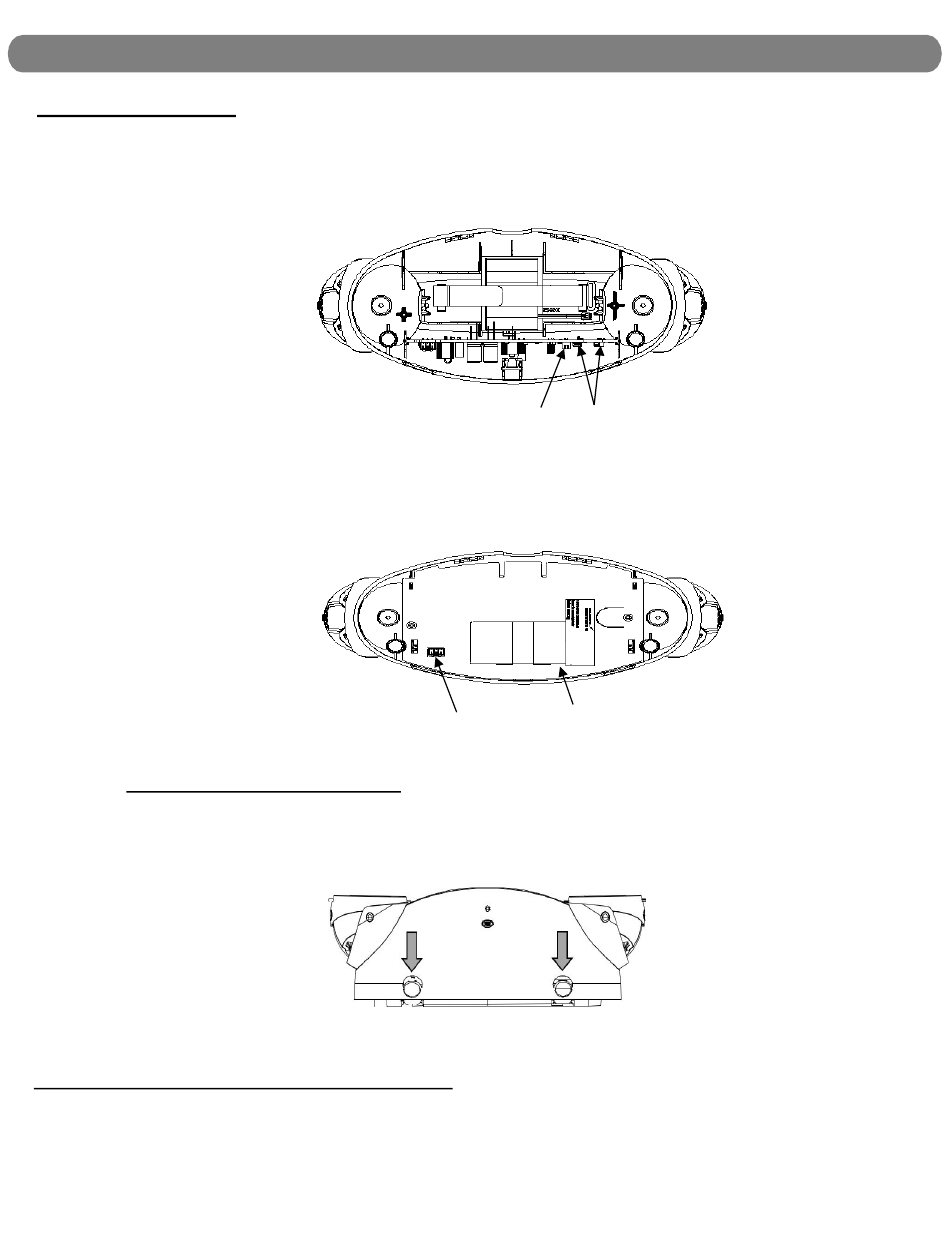

FINAL ASSEMBLY
4.
Connect battery to charger board.
5.
Install the plastic film to housing. Connect AC input plug to charger board.
6.
Housing attachment to mounting plate: Make certain all wires and connectors are routed to avoid interference with other
components. Align latch openings on underside of housing with latch buttons on mounting plate. Firmly push housing straight
onto mounting plate, making certain all four latches are fully engaged, and the housing is closely aligned to the mounting
surface.
Federal Communications Commission (FCC) Requirements:
This device complies with Part 15 of the FCC Rules.
This device may not cause harmful interference.
INSTALLATION and WIRING (CONTINUED)
Battery connector
Lamp connector
Plastic film
AC connector
page 4
