INSTALLATION and WIRING (CONTINUED)
Input from branch circuit. See label on
wire pair for voltage requirements.
refer to table for operating voltages
PIN 3
PIN 1
Input Voltage
120V-277V
120V-347V

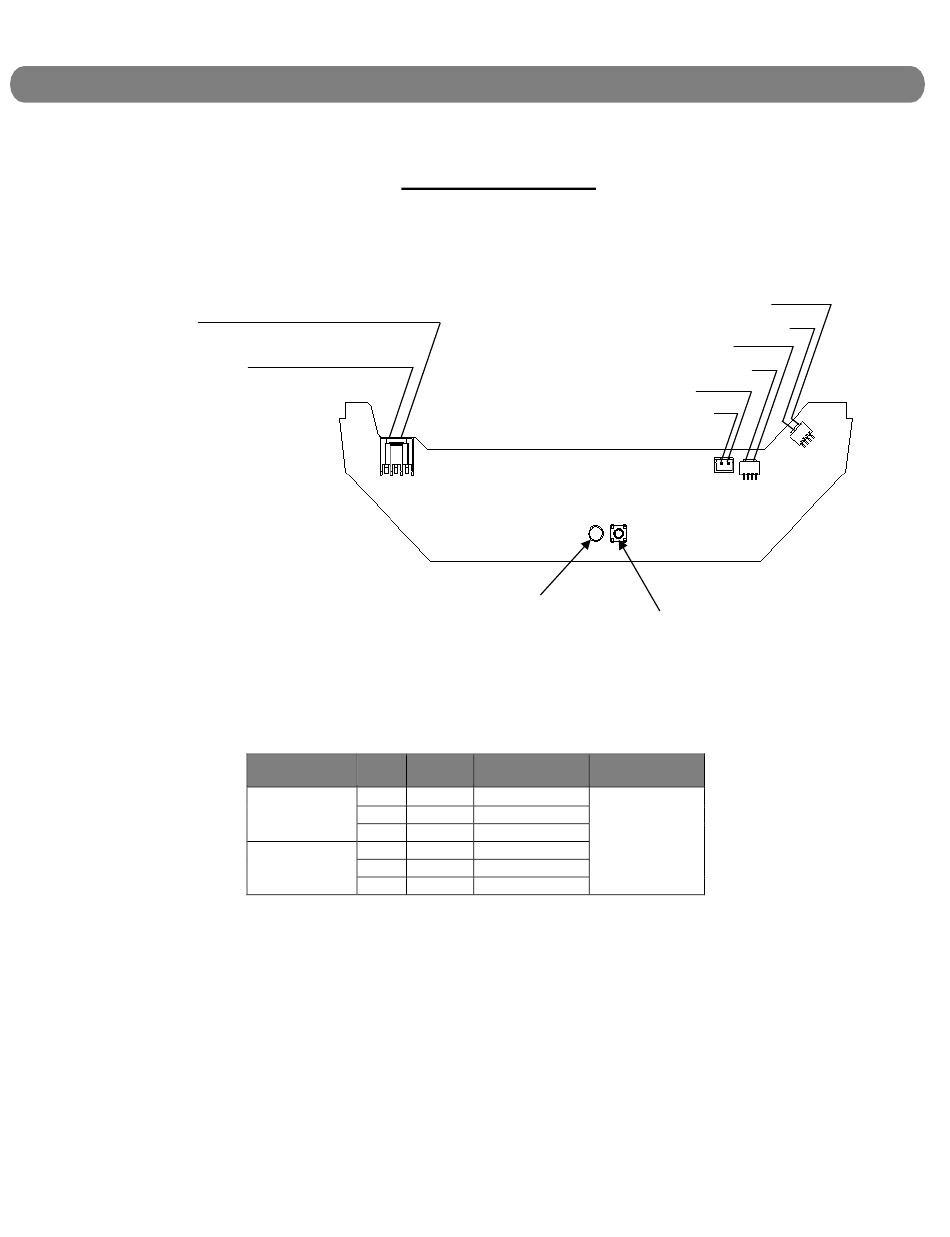

WIRING DIAGRAM

Note:
Status Indicator LED
Pin Wire
Wire Label
No. color
3 Black Hot 120V-277V
2
1 White Neutral
3 Black Hot 120V-347V
2
1 White Neutral
Lamp
Lamp
Battery
Test Switch
Battery Type
NiCd 5S1P _
5.04W
