Acuity Brands ELMRE FXO Installation And Wiring

ELMRE FXO

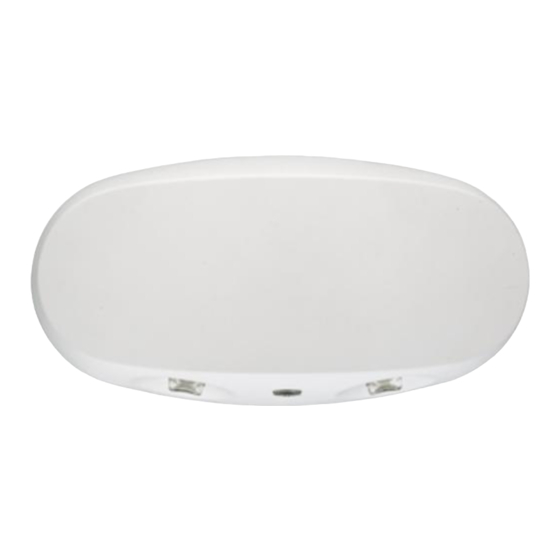

REMOTE FXO EMERGENCY LAMP ACCESSORY
IMPORTANT:
Provide each unit with a DC power supply from a 5 VDC through
emergency lighting.

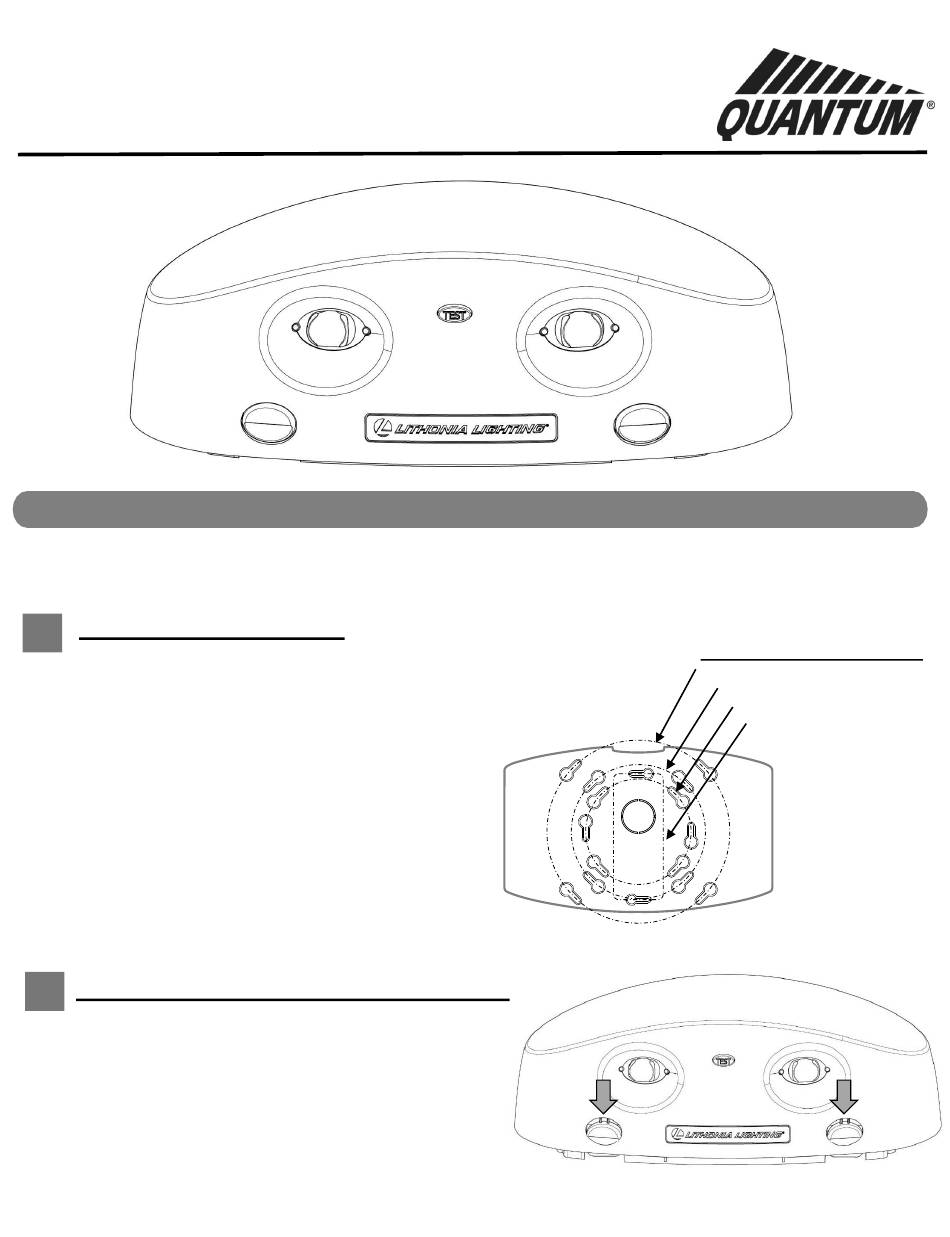

Junction box mounting:

1
-Some details shown below may vary-
1. Use code-approved connectors to connect input leads inside
J-box [See label on wire pair for positive and negative
polarity colors].
2. On the mounting plate, open the desired keyhole junction-
box knockouts.
3. Route input connector through center hole in mounting plate.
4. Taking care not to pinch wires or connectors dressed inside
junction box, secure mounting plate to junction box screws.
NOTE: to ensure proper engagement of the mounting plate
latches to the housing, DO NOT OVER-TIGHTEN THE
SCREWS.
5. Plug the input connector to the receptacle on the lamp driver
board.
6. Ensure that wires are routed to avoid interference with other
components, and push housing straight onto mounting plate,
making certain both latches are fully engaged.

Housing attachment to mounting plate:

2
Make certain all wires and connectors are routed to avoid
interference with other components. Align latch openings on
underside of housing with latch buttons
on mounting plate. Firmly push housing straight onto mounting
plate, making certain all four latches are fully engaged, and the
housing is closely aligned to the mounting surface.
INSTALLATION and WIRING
30 VDC un-switched circuit used for
Junction boxes accommodated:
4" Square
4" Octagon
3-1/2" Round or Octagon
Single Gang Box
Push housing straight onto mounting plate
