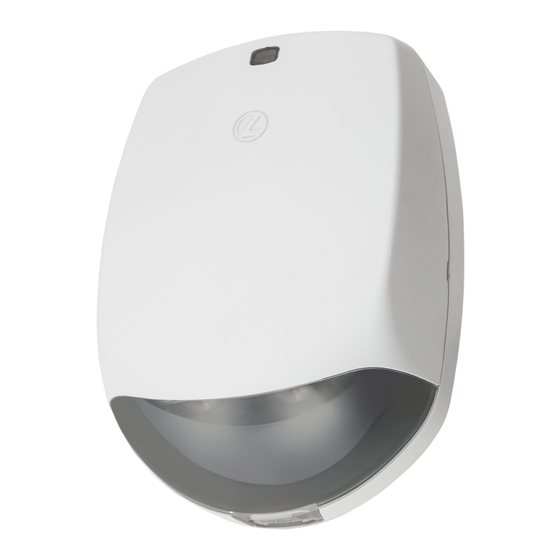

Acuity Brands Lithonia Lighting AFFINITY AFB Manual

Acuity Brands Lithonia Lighting AFFINITY AFB Manual

Emergency lighting unit
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

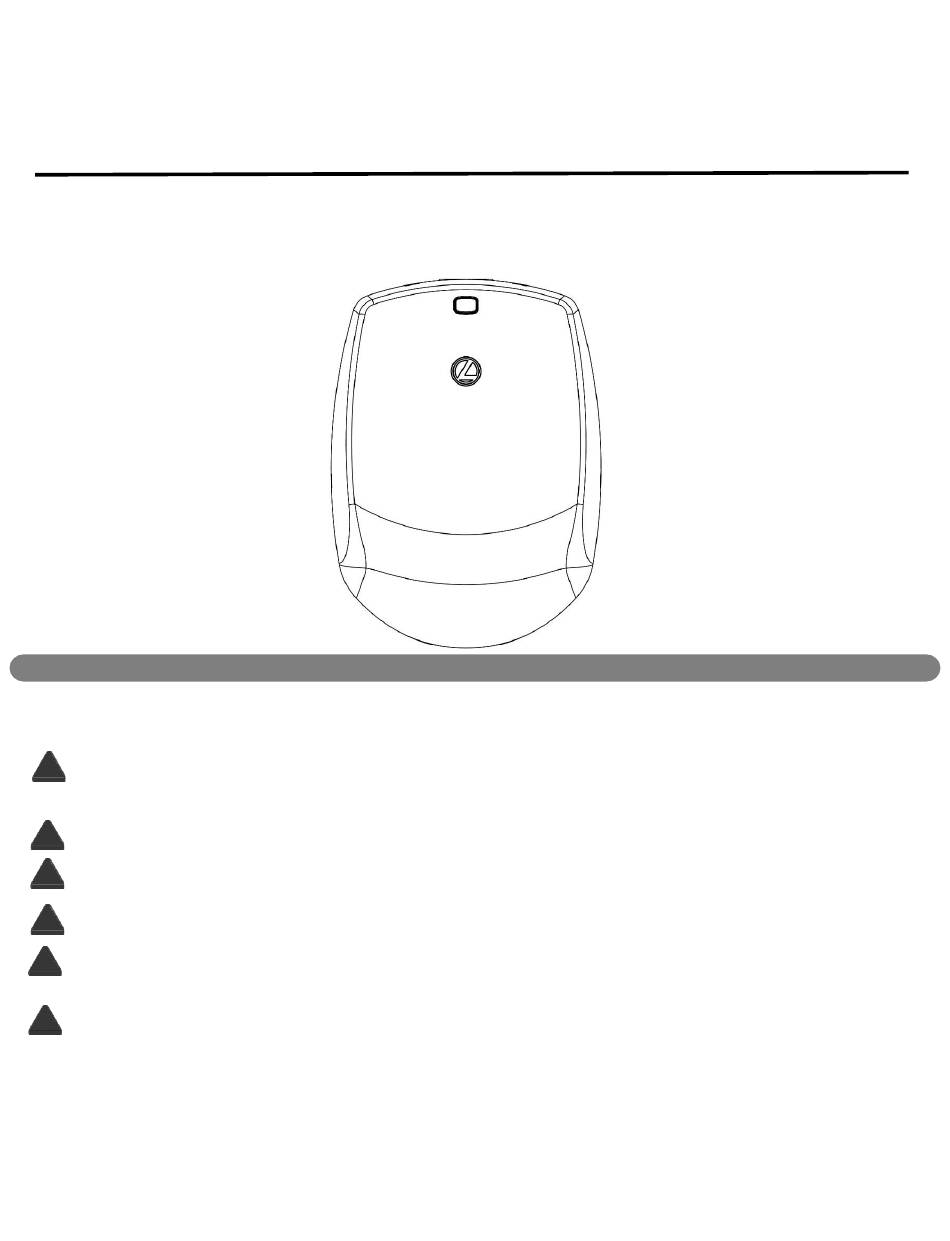

AFB
EMERGENCY LIGHTING UNIT
Installation and wiring.................................................................................................. Page 2-3
Testing and maintenance ............................................................................................. Page 4
Maintenance ..............................................................................................................Page 5-6
Wiring diagram............................................................................................................Page 6
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
!
WARNING:
FAILURE TO FOLLOW THESE INSTRUCTIONS AND WARNINGS MAY RESULT IN DEATH, SERIOUS INJURY OR
SIGNIFICANT PROPERTY DAMAGE
maintaining this equipment. These instructions do not attempt to cover all installation and maintenance situations. If you do not understand these
instructions or additional information is required, contact Lithonia Lighting or your local Lithonia Lighting distributor.
!
WARNING:
RISK OF ELECTRIC SHOCK – NEVER CONNECT TO, DISCONNECT FROM OR SERVICE WHILE EQUIPMENT IS
!
ENERGIZED
.
WARNING:
DO NOT USE ABRASIVE MATERIALS OR SOLVENTS. USE OF THESE SUBSTANCES MAY DAMAGE FIXTURE, WHICH
MAY RESULT IN PERSONAL INJURY .
!
WARNING:
RISK OF PERSONAL INJURY –
from carton, handling, installing and maintaining this product.
!
WARNING:
The battery used in this device may present a risk of fire or chemical burn if mistreated. Temperature range 32 ° F -122 ° F (0°C - 50°C)
with Non-CW unit and -22 ° F -122 ° F (-30°C - 50°C) for CW units. Do not disassemble or heat above 70° C (158° F) or incinerate. Battery should not be
used in an application where the temperature is lower than what is rated on the spec sheet. Replace battery only as directed on the battery label and
!
page 4 of these instructions. Use of unauthorized battery voids warranty and UL listing of this product and may present a risk of fire or explosion.
WARNING:
For switched line applications only the PEL unit(s) shall be connected. No other switched products shall be connected on the switched
leg.
•Disconnect A.C. power before servicing.
•All servicing should be performed by qualified personnel.
•Consult your local building code for approved wiring and installation.
•For use Outdoors. Failure to ensure conduit connections are properly protected against water ingress during installation may void
•Do not mount near gas or electric heater.
•Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized personnel.
•The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
•Do not use this equipment for other than intended use.
AND DELIVER TO OWNER AFTER INSTALLATION
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions
should always be followed, including the following:
- For your protection, read and follow these warnings and instructions carefully before installing or
This product may have sharp edges. Wear gloves to prevent cuts or abrasions when removing
SAVE THESE INSTRUCTIONS
AFFINITY
warranty.
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lithonia Lighting AFFINITY AFB and is the answer not in the manual?

Questions and answers

Summary of Contents for Acuity Brands Lithonia Lighting AFFINITY AFB

  • Page 1 ® AFFINITY EMERGENCY LIGHTING UNIT Installation and wiring.…………………………………………….…………………...……………...… Page 2-3 Testing and maintenance .……………..…………..………………………………………………… Page 4 Maintenance ………...……………………..…………………………………………………………...…Page 5-6 Wiring diagram….…...……………………..………………………………………………………..…….Page 6 IMPORTANT SAFEGUARDS When using electrical equipment, basic safety precautions should always be followed, including the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS AND WARNINGS MAY RESULT IN DEATH, SERIOUS INJURY OR SIGNIFICANT PROPERTY DAMAGE...
  • Page 2: Installation And Wiring

    INSTALLATION and WIRING Page 2 Provide each unit with a single-phase power supply from a 120 V through 347 V circuit used for normal lighting. The PEL option provides an additional switched input connection. If Switched Hot input is connected to a live wire, the lamps will always be illuminated, otherwise the Lamps will illuminate as a function of the photosensor.
  • Page 3: Final Assembly

    INSTALLATION and WIRING Page 3 SURFACE CONDUIT MOUNTING NOTE: to avoid interference with components in the housing, use the most compact wire connectors appropriate to the wire gauge. PREPARING THE UNIT FOR CONDUIT : BRANCH CIRCUIT WIRING : Remove the conduit plug from inside. The The wiring compartment is sized for (3) incoming 12 AWG unit is threaded to accept 1/2”...
  • Page 4: Testing And Maintenance

    TESTING and MAINTENANCE Page 4 IMPORTANT BATTERY INFORMATION: NOTE: Emergency lighting systems should be tested in Batteries are perishable items. For best results, it is recommended accordance with NFPA 101 or as often as local codes that the batteries receive an initial charge within the first six months require, to ascertain that all components are operational.
  • Page 5: Maintenance

    MAINTENANCE Page 5 BATTERY REPLACEMENT Reconnect the new battery to the Re-assemble unit. Disconnect battery from charger board. charger board. Remove the strap. LiFepo4 battery Replace the battery and secure the NiCad battery strap, BATTERY HANDLING WARNINGS: • Dispose of used batteries promptly. •...
  • Page 6: Wiring Diagram

    MAINTENANCE and WIRING DIAGRAM Page 6 TEST SWITCH/STATUS LED BOARD REPLACEMENT: After the unit is opened disconnect the connector from Test switch /Status LED board assembly, flex the snap at one side remove Test switch/Status LED board from plastic cover carefully. Replace new Test switch/Status LED board and push the board towards plastic cover carefully.
  • Page 7: Mises En Garde Importantes

    AFFINITY UNITÉ D’ÉCLAIRAGE D’URGENC Installation et câblage .………………………………………………………………………..…...Page 8 sur 9 Essais et entretien…….……………..…………..………………………………………………Page 10 Entretien …………………………..………...………………………………………………………Pages 11 et 12 Schéma de câblage….…...……………………..………………………………………………… Page 12 MISES EN GARDE IMPORTANTES Lorsque de l’équipement électrique est utilisé, les précautions de sécurité élémentaires suivantes devraient toujours être prises : VEUILLEZ LIRE ET RESPECTER TOUTES LES CONSIGNES DE SÉCURITÉ...
  • Page 8: Installation Et Câblage

    INSTALLATION et CÂBLAGE Page 8 Fournir à chaque unité une alimentation monophasée provenant d’un circuit de 120 V à 347 V, utilisé pour l’éclairage normal. L’option PEL fournit une connexion d’entrée avec commutateur supplémentaire. Si l’entrée avec commutateur chargé est connectée à un fil sous tension, les lampes seront toujours allumées, sinon les lampes s’allumeront en fonction du photodétecteur.
  • Page 9: Assemblage Final

    INSTALLATION et CÂBLAGE Page 9 BRANCHEMENT À UN CONDUIT DE SURFACE REMARQUE : Pour éviter les interférences avec les composants du boîtier, utilisez les connecteurs de fils les plus compacts appropriés à la jauge de fil. PRÉPARATION DE L’APPAREIL POUR LE CÂBLAGE DE DÉRIVATION : CONDUIT : Le compartiment de câblage est dimensionné...
  • Page 10 ESSAIS et ENTRETIEN Page 10 REMARQUE : Les systèmes d’éclairage d’urgence doivent INFORMATIONS IMPORTANTES CONCERNANT LA BATTERIE : être soumis à des essais conformément à la norme NFPA 101 Les batteries sont des produits périssables. Pour de meilleurs ou aussi souvent que les codes locaux l’exigent, afin de résultats, il est recommandé...
  • Page 11: Entretien

    ENTRETIEN Page 11 REMPLACEMENT DE LA PILE Rebranchez la nouvelle batterie à Réassemblez l’appareil. Débranchez la batterie de la carte du la carte du chargeur. chargeur. Retirez la sangle. Remplacez la batterie et fixez la sangle. Batterie LiFePO4 Batterie Ni-Cd RECOMMANDATIONS LORS DE LA MANIPULATION DE LA BATTERIE : •...
  • Page 12: Schéma De Câblage

    SCHÉMA D’ENTRETIEN et de CÂBLAGE Page 12 REMPLACEMENT DE LA CARTE LED DU COMMUTATEUR D'ESSAI / ÉTAT Une fois l'unité ouverte, déconnectez le connecteur de l'ensemble interrupteur de test / carte LED d'état, fléchissez le bouton- pression d'un côté, retirez soigneusement l'interrupteur de test / carte LED d'état du couvercle en plastique. Remplacez la nouvelle carte d'interrupteur de test / LED d'état et poussez la carte vers le couvercle en plastique avec précaution.
  • Page 13: Medidas De Seguridad Importantes

    ® AFFINITY UNIDAD DE ILUMINACIÓN DE EMERGENCIA Instalación y cableado…………………..…………..……………………………………… Páginas 14-15 Prueba y mantenimiento ………...……………………………………………………..…… Página 16 Mantenimiento ……………..………...…………………………………………….………..… Páginas 17-18 Diagrama de cableado..................... Página 18 MEDIDAS DE SEGURIDAD IMPORTANTES Cuando se utilizan aparatos eléctricos, deben tomarse precauciones básicas de seguridad, incluidas las siguientes: LEA Y SIGA TODAS LAS INSTRUCCIONES DE SEGURIDAD ADVERTENCIA: EL INCUMPLIMIENTO DE ESTAS INSTRUCCIONES Y ADVERTENCIAS PUEDE PROVOCAR LA MUERTE, LESIONES GRAVES O DAÑOS IMPORTANTES A LA PROPIEDAD.
  • Page 14: Instalación Y Cableado

    INSTALACIÓN y CABLEADO Página 14 Proporcione cada unidad con una fuente de poder monofásica de un circuito de 120 V hasta 347 V utilizado para la iluminación normal. La opción PEL proporciona una conexión de entrada conmutada adicional. Si la entrada de Conmutación en caliente está conectada a un cable con corriente, las lámparas siempre estarán iluminadas;...
  • Page 15: Montaje Final

    INSTALACIÓN y CABLEADO Página 15 MONTAJE DEL CONDUCTO DE SUPERFICIE NOTA: para evitar interferencia con los componentes de la carcasa, use los conectores más compactos apropiados para el calibre de los cables. PREPARE LA UNIDAD PARA EL CONDUCTO: CABLEADO DEL CIRCUITO DERIVADO: Retire el tapón del conducto desde el interior.
  • Page 16 PRUEBA y MANTENIMIENTO Página 16 INFORMACIÓN IMPORTANTE SOBRE LAS BATERÍAS: NOTA: los sistemas de iluminación de emergencia deben estar Las baterías son productos perecederos. Para obtener mejores probados de acuerdo con la norma NFPA 101, o con la regularidad que exijan los códigos locales para verificar que resultados, se recomienda que las baterías reciban una carga inicial todos los componentes estén operativos.
  • Page 17: Mantenimiento

    MANTENIMIENTO Página 17 REEMPLAZO DE LA BATERÍA Reconecte la batería nueva a la Vuelva a montar la unidad. Desconecte la batería de la placa del placa del cargador. cargador. Retire el soporte. Reemplace la batería y asegure la correa, Batería LiFepo4 Batería NiCad ADVERTENCIAS PARA EL MANEJO DE LA BATERÍA: •...
  • Page 18: Diagrama Del Cableado

    MANTENIMIENTO y DIAGRAMA DE CABLEADO Página 18 INTERRUPTOR DE PRUEBA / REEMPLAZO DEL TABLERO LED DE ESTADO : Después de abrir la unidad, desconecte el conector del interruptor de prueba / ensamblaje de la placa de LED de estado, flexione el cierre a un lado y retire el interruptor de prueba / placa de LED de estado de la cubierta de plástico con cuidado.
