Self-contained siren or siren/strobe

Advertisement

Quick Links

Self-Contained Siren
or Siren/Strobe

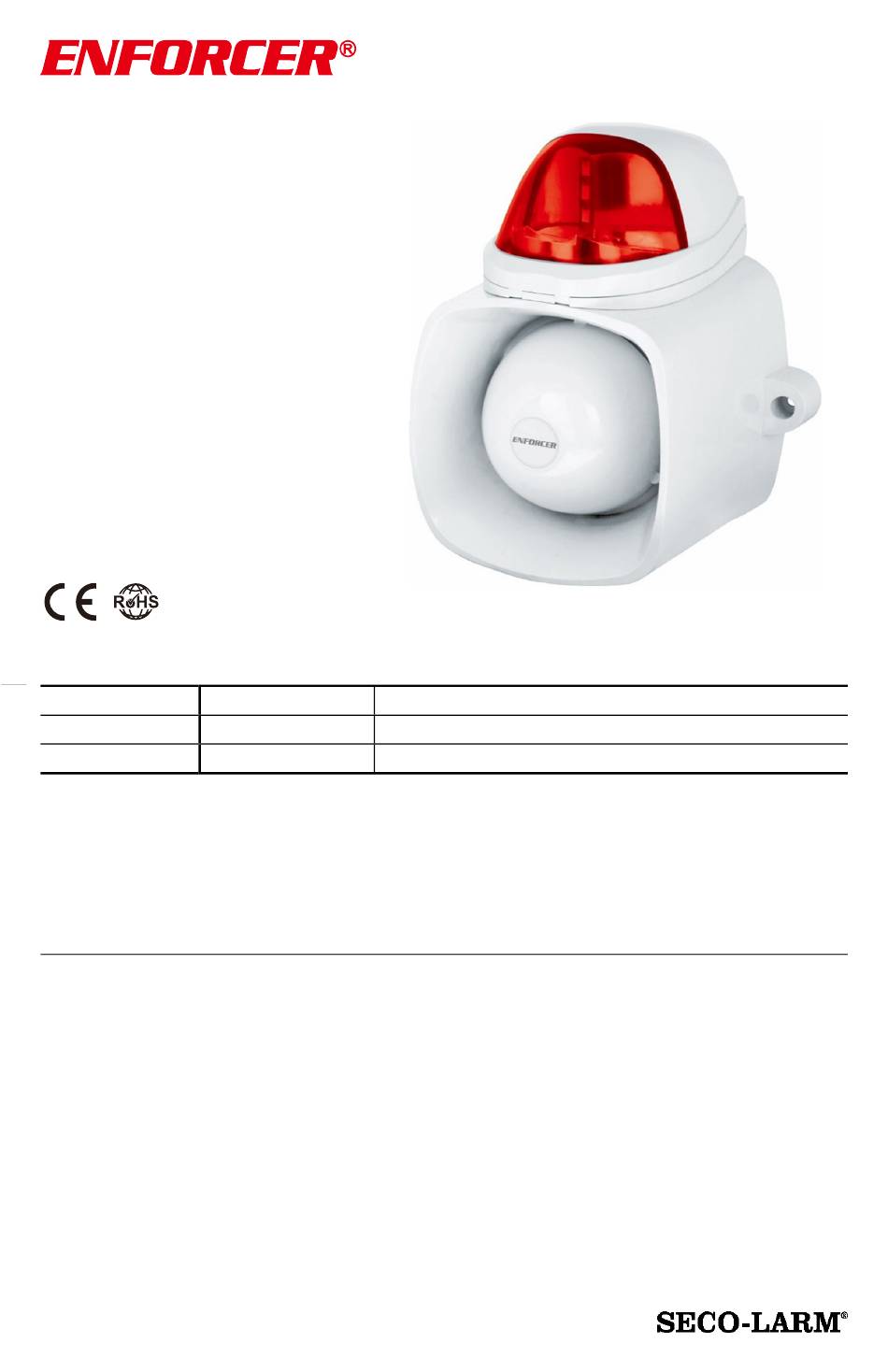

Installation Manual
Model
SH-816S-BQ
SH-816S-SQ/x*
*Replace "x" with the first letter of the lens color, amber, blue, clear, or red.
The ENFORCER Siren/Strobe is a multi-purpose device: siren, speaker, and (SH-816S-SQ only)
an LED strobe. It can serve as a regular siren, but also has an audio input that can be used to play
audio or broadcast messages. Audio input will override the siren for the duration of the broadcast.
The SH-816S-SQ strobe light is available with amber, blue, clear, or red lenses.
• 9~15 VDC and low current draw
• 120dB Warble-tone siren
• 25W Speaker for audio or broadcast system input (broadcast will interrupt the siren)
• Built-in tamper alarm output
• Weatherproof for outdoor/indoor use, IP65
• Mount directly to wall or to most common back boxes
In addition to the above, SH-816S-SQ adds:
• Bright LED strobe light
• Strobe can be triggered separately from siren
• Strobe available in amber, blue, clear, or red
Product
Siren
Siren with Strobe
Mount
Surface or back box (single-gang, double-gang, or C-type)
Surface or back box (single-gang, double-gang, or C-type)

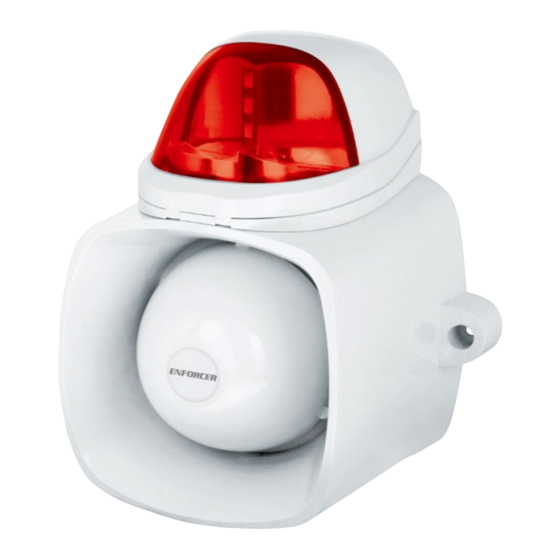

SH-816S-SQ/R shown

Advertisement

loading
Need help?

Need help?

Do you have a question about the SH-816S-SQ Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ENFORCER SH-816S-SQ Series

  • Page 1 *Replace "x" with the first letter of the lens color, amber, blue, clear, or red. The ENFORCER Siren/Strobe is a multi-purpose device: siren, speaker, and (SH-816S-SQ only) an LED strobe. It can serve as a regular siren, but also has an audio input that can be used to play audio or broadcast messages.
  • Page 2 Self-Contained Siren or Siren/Strobe ENFORCER Parts List 1x Siren/Strobe 4x Mounting screws 4x Plastic wall anchors 1x Back removal tool 1x Manual Specifications Model SH-816S-BQ SH-816S-SQ/x* Type Siren Siren with strobe Operating voltage 9~15 VDC Siren 680mA@12VDC Current Strobe 190mA@12VDC...
  • Page 3 Self-Contained Siren or Siren/Strobe ENFORCER Installation 1. Determine the desired location and Fig. 1 installation—surface or to a back box. 2. Remove the two screws from the two Tamper switch tabs that attach the mounting base to the main unit (See Fig. 1).
  • Page 4 Self-Contained Siren or Siren/Strobe ENFORCER Sample Applications Triggering both siren and strobe* together (also showing audio input) Strobe* Audio or Triggering Broadcast Device (–) System 12VDC STROBE (+) AUDIO (+) Power SIREN (+) AUDIO (–) Supply – TAMPER P.A. (+)
