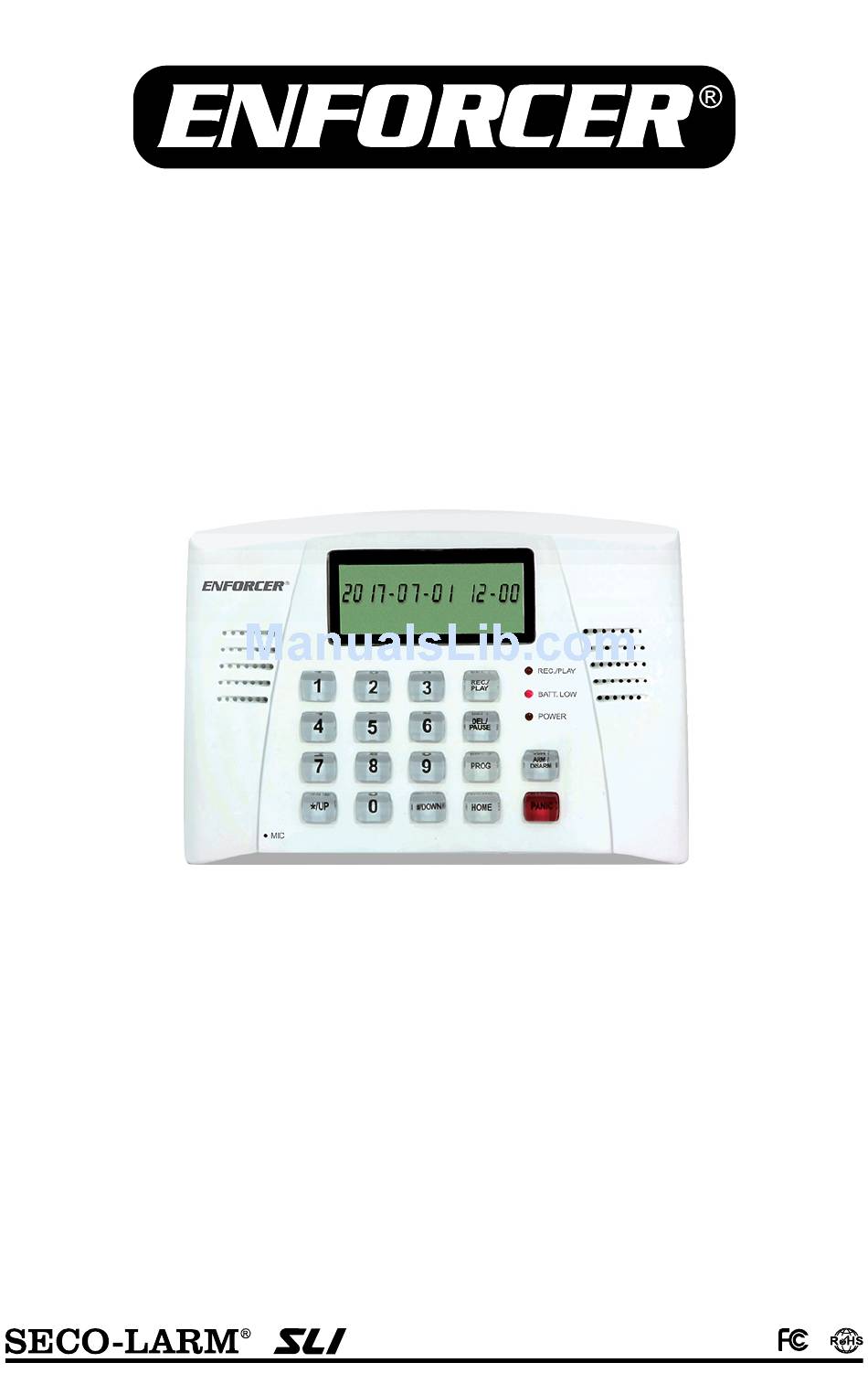

E-921CPQ

Voice Dialer

Manual
When triggered by an alarm system, the ENFORCER Voice Dialer can call up to 5 numbers and deliver
a user-recorded 20-second voice message, playing repeatedly for one minute. Each number can
contain up to 32 digits, including #, tones, and pauses. The LCD shows the number being dialed at each
stage of the dialing process. The receiver can then listen in or broadcast a message to the room
occupants or can disarm the system. The same functions are available by remote call in as well as
arming the system. The dialer includes a home mode (acting like a door chime when the owner is
present) and a panic button. The 105dB built-in siren alarm can be programmed on or off.
Note: For single-line analog telephone systems only.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-921CPQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ENFORCER E-921CPQ

Summary of Contents for ENFORCER E-921CPQ

  • Page 1: Voice Dialer

    Voice Dialer Manual When triggered by an alarm system, the ENFORCER Voice Dialer can call up to 5 numbers and deliver a user-recorded 20-second voice message, playing repeatedly for one minute. Each number can contain up to 32 digits, including #, tones, and pauses. The LCD shows the number being dialed at each stage of the dialing process.

  • Page 2: Table Of Contents

    ENFORCER Voice Dialer Table of Contents: Features ............2 Record and Play Back Emergency Parts List ............3 Message ............. 9 Specifications ..........3 Testing the Auto Dial Function ...... 10 Wiring Diagram ..........3 Resetting the Voice Dialer ......10 Overview ............

  • Page 3: Parts List

    ENFORCER Voice Dialer Parts List: Voice dialer unit Telephone cable Remote control instruction card Plastic wall anchors Wall mount screws DC Plug-to-terminal block Wall mounting template User manual Specifications: Operating voltage 9~12 VDC Standby Dialing 20mA Alarm On 150mA Current draw Max.

  • Page 4: Overview

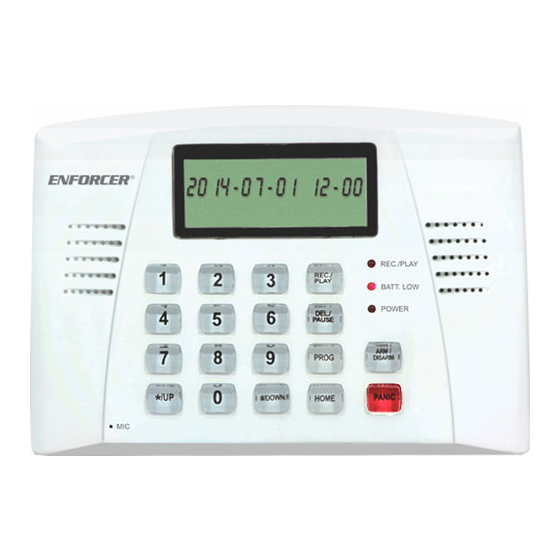

    ENFORCER Voice Dialer Overview: Front LCD Display Speaker REC/PLAY LED LOW BATT LED POWER LED Numeric Keypad Microphone Back (Covers Removed) LINE Jack TEL Jack Buzzer Terminal Block (with Trigger 3 Jumper) DC Power Jack Battery Receptacle Reset Button LCD Screen Layout:...
  • Page 5 ENFORCER Voice Dialer Installing the Voice Dialer, continued: 1. Select a location for the dialer near a standard electrical outlet (if user-supplied 12VDC adapter is to be used), a telephone wall jack, and the alarm control panel, but out of sight. The dialer should not be exposed to direct sunlight or rain, and must not be mounted near heat sources such as radiators, heating ducts, or stoves.

  • Page 6: Programming The Voice Dialer

    ENFORCER Voice Dialer Programming the Voice Dialer: The setup mode may only be accessed when the dialer is in standby mode. If no key is pressed within 15 seconds, the dialer will automatically exit the setup mode. Setting and Changing the PIN Number 1.

  • Page 7: Deleting A Stored Phone Number

    ENFORCER Voice Dialer Programming the Voice Dialer, continued: Example 2 – To store a number with area code 1-949-555-1234, and an office extension #200 (where the called number requires a 2-second pause before the extension): After scrolling to the desired number location, enter ‘19495551234,’ press the [DEL/PAUSE] button for 2 seconds until ‘F’...

  • Page 8: Setting The Auto Dial Function

    ENFORCER Voice Dialer Programming the Voice Dialer, continued: Setting the Auto Dial Function The user can choose whether or not the dialer will dial the emergency numbers when triggered. The factory default is “ON”. 1. Enter the PIN number and press the [PROG] button five times or until the phone icon () flashes on the LCD screen.

  • Page 9: Setting The Entry Delay Time

    ENFORCER Voice Dialer Programming the Voice Dialer, continued: Setting the Entry Delay Time This allows the user to set the length of time before the alarm will sound, to allow time to disable the alarm after normal entry. The factory default is 20 seconds, but can be user programmed for 0, 5, 10, 15, or 20 seconds.

  • Page 10: Testing The Auto Dial Function

    ENFORCER Voice Dialer Testing the Auto Dial Function: To test the auto dial function, while in standby mode, press and hold the [PROG] button for at least two seconds. When you hear a ‘beep’ tone, enter the memory location (1~5) of the number you wish to test.

  • Page 11: Panic Button Use

    ENFORCER Voice Dialer Operating the Voice Dialer, continued: Note: When the siren has been programmed to “SOUND OFF,” the siren will not sound and the dialing will commence silently after the delay time has passed. When the call is answered, the receiver will hear the user-recorded 20-second emergency message.
  • Page 12 ENFORCER Voice Dialer Operating the Voice Dialer, continued: Remote Control by Telephone – Remote Control by User Call-In (Call Back), continued: C. Press one of the following function codes to control the system remotely: Function Press key code Listen in...

  • Page 13: Home Mode Use

    ENFORCER Voice Dialer Operating the Voice Dialer, continued: Home Mode Use To turn off the alarm function and use the dialer as a door chime, set the dialer to “Home” mode. A chime will ring any time one of the sensors is triggered.

  • Page 14: Program Planner

    If trouble is experienced with this equipment product Model:E-921CPQ, for repair or warranty information, please contact SECO-LARM U.S.A., Inc. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

  • Page 15: Summary Programming/Operation Chart

    ENFORCER Voice Dialer Summary Programming/Operation Chart: 1. Setting/Changing PIN Number (see pg. 6) Current PIN [PROG] [ARM/DISARM] New PIN [ARM/DISARM] [PROG] x9 2. Setting Emergency Telephone Numbers (see pgs. 6~7) [PROG] x2 [ARM/DISARM] [#/DOWN] or [*/UP] Enter Phone # [ARM/DISARM] [PROG] x8 3.

  • Page 16: Troubleshooting

    ENFORCER Voice Dialer Troubleshooting:  Try re-entering the PIN number to ensure that you have entered it correctly.  While pressing and holding the [PROG] button, use a pen or Dialer will not arm/disarm paper clip to press the [RESET] button on the back of the dialer.
