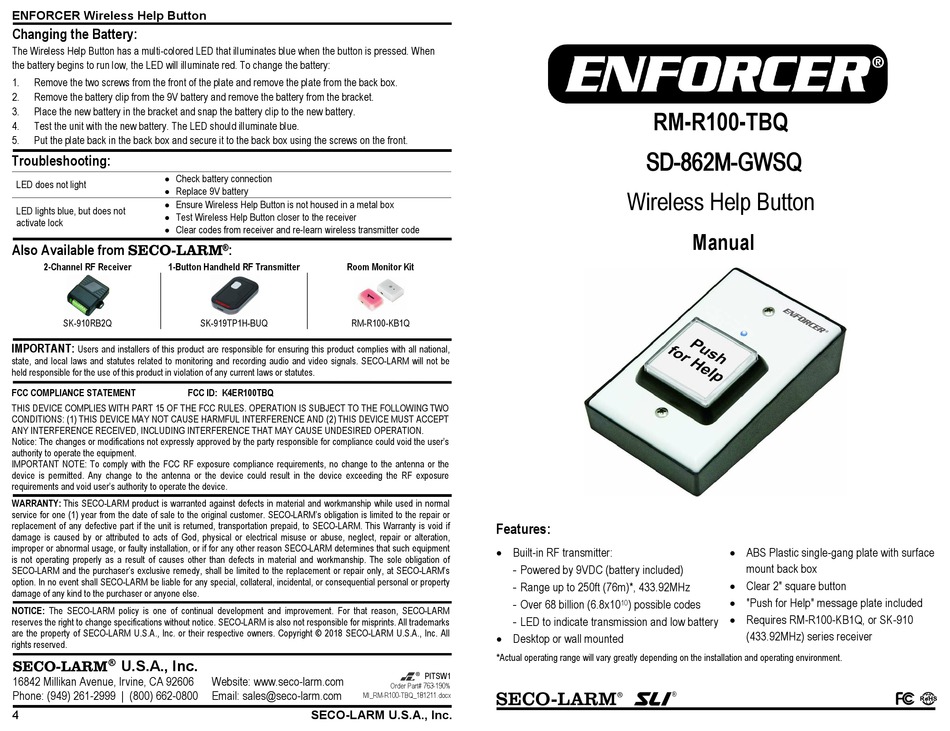

ENFORCER Wireless Help Button
Changing the Battery:
The Wireless Help Button has a multi-colored LED that illuminates blue when the button is pressed. When
the battery begins to run low, the LED will illuminate red. To change the battery:
1.
Remove the two screws from the front of the plate and remove the plate from the back box.
2.
Remove the battery clip from the 9V battery and remove the battery from the bracket.
3.
Place the new battery in the bracket and snap the battery clip to the new battery.
4.
Test the unit with the new battery. The LED should illuminate blue.
5.
Put the plate back in the back box and secure it to the back box using the screws on the front.
Troubleshooting:
Check battery connection
LED does not light
Replace 9V battery
Ensure Wireless Help Button is not housed in a metal box
LED lights blue, but does not
Test Wireless Help Button closer to the receiver
activate lock
Clear codes from receiver and re-learn wireless transmitter code
Also Available from
2-Channel RF Receiver
1-Button Handheld RF Transmitter
SK-910RB2Q
IMPORTANT:
Users and installers of this product are responsible for ensuring this product complies with all national,
state, and local laws and statutes related to monitoring and recording audio and video signals. SECO-LARM will not be
held responsible for the use of this product in violation of any current laws or statutes.
FCC COMPLIANCE STATEMENT
FCC ID: K4ER100TBQ
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT
ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
Notice: The changes or modifications not expressly approved by the part y responsible for compliance could void the user's
authority to operate the equipment.
IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the
device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure
requirements and void user's authority to operate the device.
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal
service for one (1) year from the date of sale to the original customer. SECO- LARM's obligation is limited to the repair or
replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if
damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration,
improper or abnormal usage, or faulty installation, or if for any other reason SECO- LARM determines that such equipment
is not operating properly as a result of causes other than defects in material and workmanship. The sole obligation of
SECO-LARM and the purchaser's exclusive remedy, shall be limited to the replacement or repair only, at SECO-LARM 's
option. In no event shall SECO- LARM be liable for any special, collateral, incidental, or consequential personal or property
damage of any kind to the purchaser or anyone else.
NOTICE: The SECO-LARM policy is one of continual development and improvement. For that reason, SECO-LARM
reserves the right to change specifications without notice. SECO-LARM is also not responsible for misprints. All trademarks
are the property of SECO-LARM U.S.A., Inc. or their respective owners. Copyright © 2018 SECO-LARM U. S.A., Inc. All
rights reserved.
®
U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA 92606
Phone: (949) 261-2999 | (800) 662-0800
4
:
®
Room Monitor Kit
SK-919TP1H-BUQ
RM-R100-KB1Q
Website: www.seco-larm.com
Email: sales@seco-larm.com
MI_RM-R100-TBQ_181211.docx
SECO-LARM U.S.A., Inc.
Features:
Built-in RF transmitter:
-
Powered by 9VDC (battery included)
-
Range up to 250ft (76m)*, 433.92MHz
-
Over 68 billion (6.8x10
-
LED to indicate transmission and low battery
Desktop or wall mounted
*Actual operating range will vary greatly depending on the installation and operating environment.
PITSW1
Order Part# 763-190%
RM-R100-TBQ
SD-862M-GWSQ
Wireless Help Button
Manual
ABS Plastic single-gang plate with surface
mount back box
Clear 2" square button
"Push for Help" message plate included
) possible codes
10
Requires RM-R100-KB1Q, or SK-910
(433.92MHz) series receiver
®
