Request-to-Exit Plate
with Pneumatic Timer
Installation Manual
5024193
Conforms to
UL294
Model
SD-7113-GSP
SD-7113-RSP
SD-7183-GSP
SD-7213-GSP
SD-7213-RSP
SD-7283-RSP
The ENFORCER SD-7xx3-xSP series Request-to-Exit Plates with Pneumatic Timer are ideal when
providing power to a timer is inconvenient, hazardous, or not conforming with local ordinances and
codes. Adjusting the time is easy via a timing screw and can be performed on the spot without tools.
• Conforms to NFPA 101 Fire Codes for non-electrical breaking of contact
• Functions entirely without electricity
• Excellent for installations where supplying additional timer power is inconvenient
• Reliable US-made pneumatic components
• Stainless steel single-gang faceplate
• English and Spanish printed on the faceplate (except SD-7183-GSP, SD-7283-RSP)
• Timer adjustable for 1~60 seconds
Faceplate
Slimline plate
Slimline plate
Slimline plate
Single-gang plate
Single-gang plate
Single-gang plate
Pneumatic
Timer
Message
Exit / Salida
Exit / Salida
Push to Exit
Exit / Salida
Exit / Salida
Push to Exit

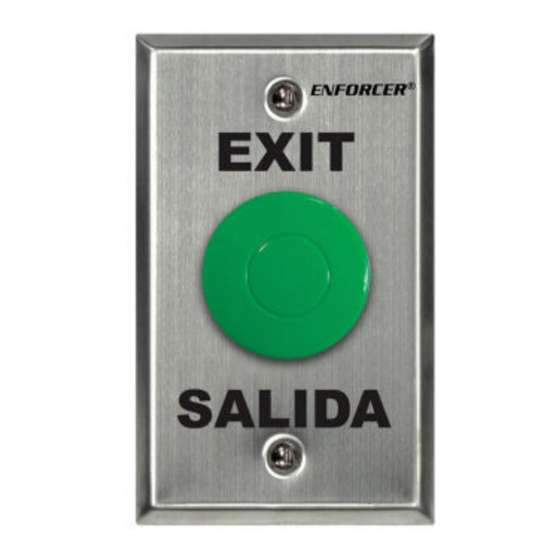

SD-7213-GSP shown
No
Power
Required
Pushbutton
Green mushroom
Red mushroom
Green mushroom
Green mushroom
Red mushroom
Large red mushroom
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ENFORCER SD-7113-GSP
Summary of Contents for ENFORCER SD-7113-GSP

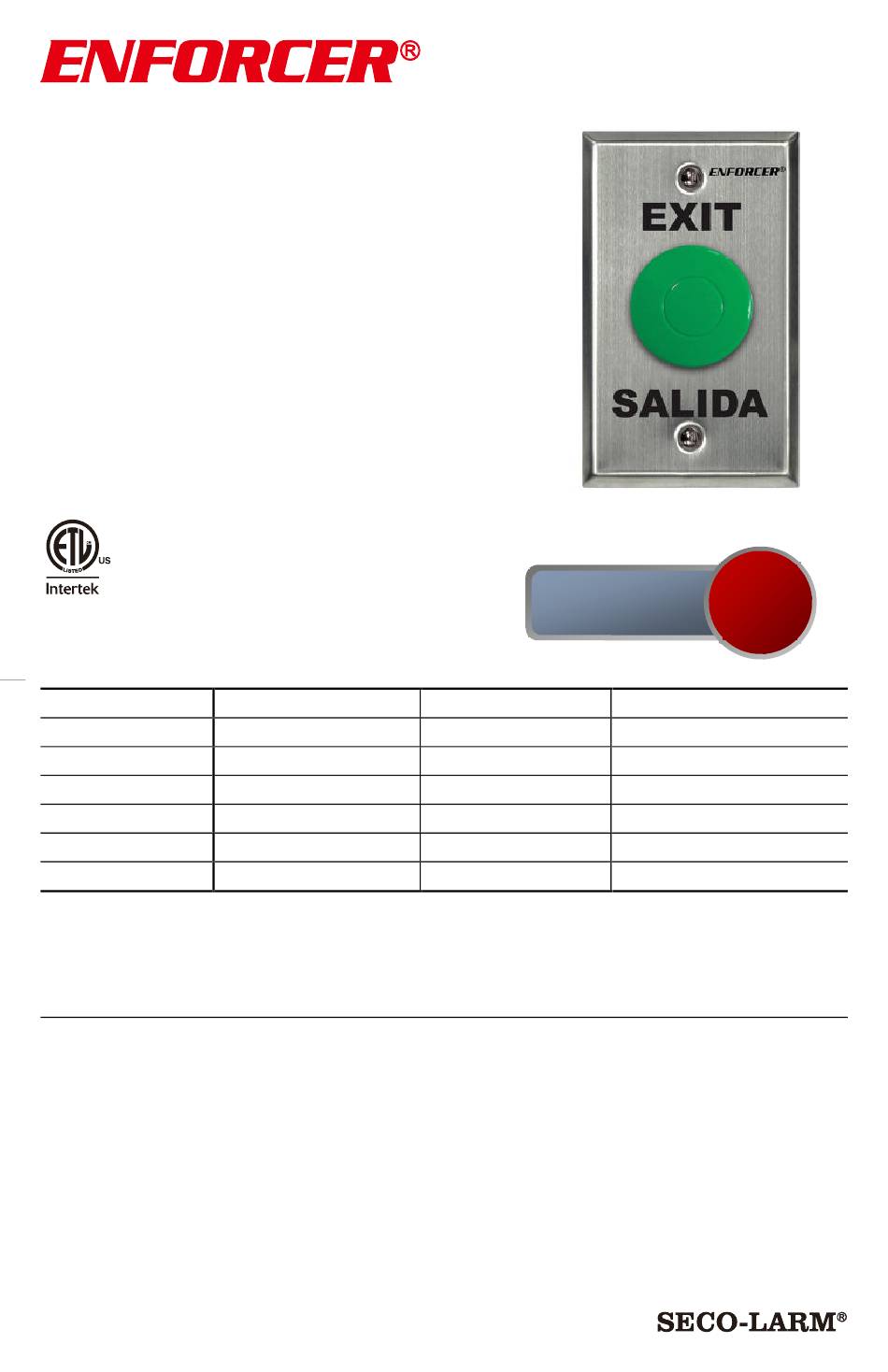

- Page 1 Push to Exit Large red mushroom The ENFORCER SD-7xx3-xSP series Request-to-Exit Plates with Pneumatic Timer are ideal when providing power to a timer is inconvenient, hazardous, or not conforming with local ordinances and codes. Adjusting the time is easy via a timing screw and can be performed on the spot without tools.
- Page 2 Request-to-Exit Plate with Pneumatic Timer Parts List 1x Request-to-exit plate 2x Faceplate screws 1x Manual Specifications Model SD-7113-GSP SD-7113-RSP SD-7183-GSP SD-7213-GSP SD-7213-RSP SD-7283-RSP Faceplate Slimline, brushed stainless steel Single-gang, brushed stainless steel Size Standard Large Mushroom cap button Color Green...
- Page 3 Sample Applications Installation with a Maglock and Access Control System (SD-7213-xSP Shown) Use ENFORCER Request-to-Exit Plates with Pneumatic Timer anywhere zero-spark switching is required. For N.C. (fail-safe) operation, connect the red wires.
- Page 4 Request-to-Exit Plate with Pneumatic Timer Sample Applications (Continued) Installation with a Maglock and an Access Control Keypad Access Control Request-To-Exit ENFORCER Digital Keypad Power Supply Plate Electromagnetic Lock (outside the (inside the protected area) protected area) EXIT (–) SALIDA Tamper O/P (N.C.)
