ENFORCER E-931CS22RRC Installation Manual

Retro-reflective photoelectric sensor entry alert system

Advertisement

Quick Links

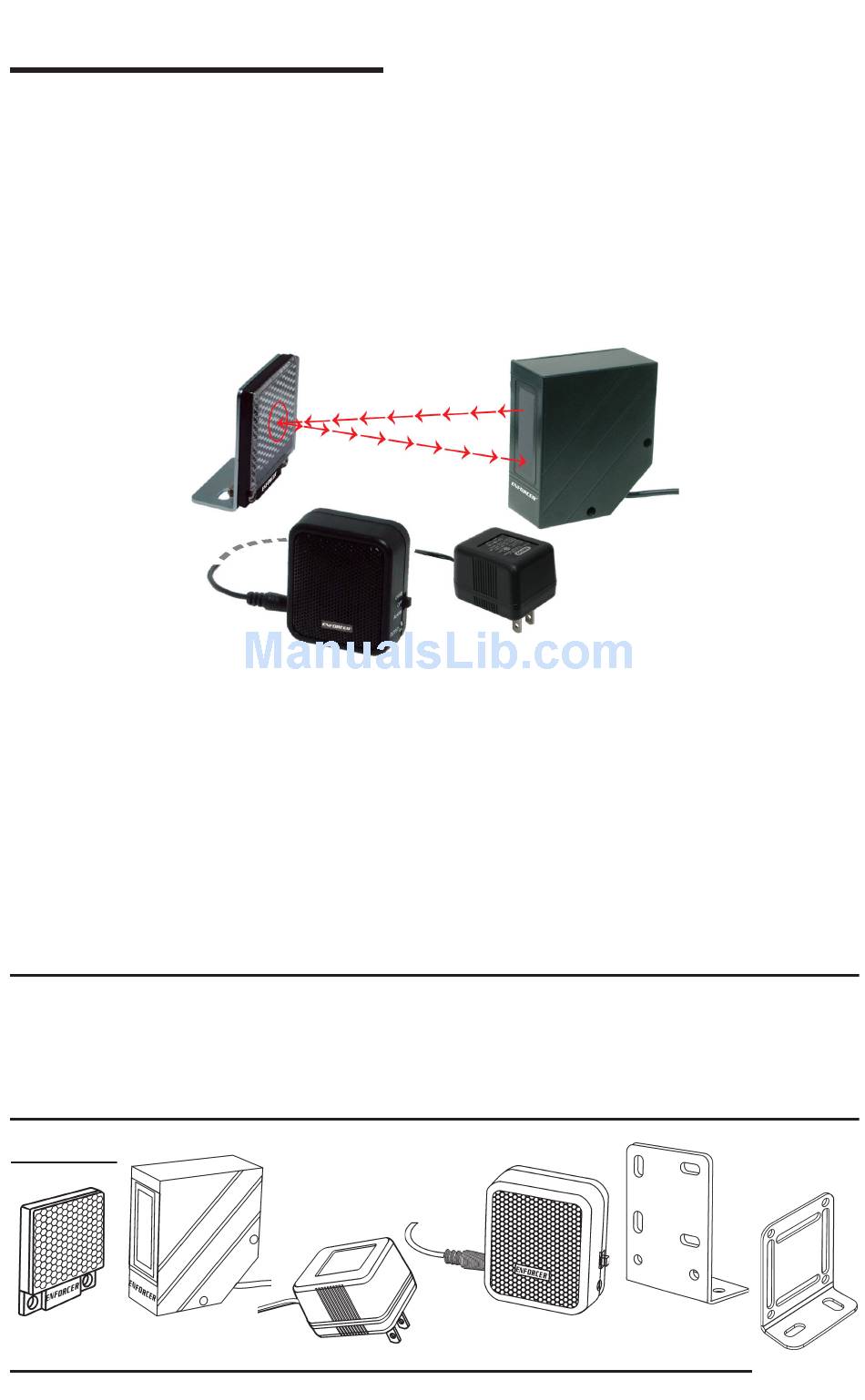

ENFORCER
Retro-Reflective Photoelectric
Sensor Entry Alert System
E-931CS22RRC
Range: 22ft. (7m)

Features:

• • • • • Retro-reflective photoelectric sensor.
• • • • • Range: Up to 22 feet (7m).
• • • • • Perfect for monitoring an entrance, or for counting
foot traffic with optional counter.
• • • • • Will make "ding-dong" sound or siren sound when
the beam is interrupted.
• • • • • Speaker volume can be adjusted or turned off.
• • • • • When in siren mode, sounding time is adjustable
from 3 to 30 seconds.
• • • • • 9VDC adapter included.
Caution:
• This sensor was not designed to prevent bodily injury or loss of life.
• Use of this sensor in certain security applications may be regulated by local laws or codes.
SECO-LARM is not responsible for compliance with such laws or codes.
Included:
®
E-931CS22RRC
E-931ACC-R
Transmitter/Receiver
Reflector
Sensor

INSTALLATION MANUAL

Adapter
®
• • • • • All components plug into each other.
No hard wiring required.
• • • • • Optional counter available (E-931ACC-C).
• • • • • Optional second speaker available (E-931ACC-S).
• • • • • Includes the following:
— Retro-reflective photoelectric sensor.
— Reflector.
— Speaker/electronic chime.
— 9VDC adapter.
E-931ACC-S
Speaker/Electronic Chime
E-931ACC-BLS4
E-931ACC-BLR1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-931CS22RRC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ENFORCER E-931CS22RRC

  • Page 1: Installation Manual

    ENFORCER ® Sensor Retro-Reflective Photoelectric Sensor Entry Alert System E-931CS22RRC Range: 22ft. (7m) INSTALLATION MANUAL Features: • • • • • Retro-reflective photoelectric sensor. • • • • • All components plug into each other. No hard wiring required. • • • • • Range: Up to 22 feet (7m).
  • Page 2: Specifications

    SECO-LARM. WARRANTY: ENFORCER Photobeam Sensors are warranted against defects in material and workmanship while used in normal service for a period of one (1) year from the date of sale to the original customer. Our obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation pre-paid, to SECO-LARM.
  • Page 3: Sample Installations

    Sample Installations: Store front door Garage Main door entrance door Other possible applications: Offices, stores, schools, warehouse, vehicle detection, etc. Wiring: (one speaker, no counter) Speaker Adaptor Sensor Up to 22' (7m) DC 9V Reflector Input Wiring: (one speaker, with optional counter) Counter (optional) Speaker Adaptor...
  • Page 4: Mounting The Reflector

    1. Choose between "Chime" or "Alarm" sound or "OFF". Red LED 2. If "Alarm" was chosen: A. Set speaker to Alarm B. Adjust the alarm sounding time from 3 to 30 seconds. ENFORCER ® C. Set speaker Volume.
