ENFORCER Auto Dialer

Troubleshooting:

Auto dialer will not arm/disarm
Auto dialer will not dial out
Unit doesn't respond to a call-back
Difficulty in activating 'room monitor'
by telephone remote control
While the system can provide valuable protection to home and property when properly installed, it
NOTE:
cannot guarantee complete protection against intrusion. SECO-LARM is not responsible for any losses or
damage which may occur during the use of this product.
Users and installers of this product are responsible for ensuring this product complies with all
IMPORTANT:
national, state, and local laws and statutes related to monitoring and recording audio and video signals.
SECO-LARM will not be held responsible for the use of this product in violation of any current laws or
statutes.
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while
used in normal service for one (1) year from the date of sale to the original customer. SECO-LARM's
obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation
prepaid, to SECO-LARM. This Warranty is void if damage is caused by or attributed to acts of God, physical
or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation,
or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result
of causes other than defects in material and workmanship. The sole obligation of SECO-LARM and the
purchaser's exclusive remedy shall be limited to the replacement or repair only, at SECO-LARM's option. In
no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or
property damage of any kind to the purchaser or anyone else.
NOTICE: The information and specifications printed in this manual are current at the time of publication.
However, the SECO-LARM policy is one of continual development and improvement. For this reason,
SECO-LARM reserves the right to change specifications without notice. SECO-LARM is also not responsible
for misprints or typographical errors.
Copyright © 2014 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or
copied, in whole or in part, without the written permission of SECO-LARM.
®
U.S.A., Inc.
SECO-LARM
16842 Millikan Avenue, Irvine, CA 92606
Phone: (949) 261-2999 | (800) 662-0800
16
• Make sure that you have entered the correct PIN
Number. Try re-entering it.
• While pressing and holding the [PROG] button, use a
pen or paper clip to press the [RESET] button on the
back of the dialer. This sets the PIN number to the
default (000).Then try to arm/disarm again.
• Make sure that the telephone line is working.
• Make sure that you have programmed at least one
telephone number into the unit and that the full
number has been stored.
• Make sure that the system is in Auto Dial mode.
• Check to see if another unit (fax or answering
machine) could be answering the call and remove the
other unit.
• Adjust the call-in ring detect setting so that the auto
dialer will answer.
• Try pressing the code key again.
• Move to a quieter location as ambient noise may
affect the auto dialer's ability to detect the tone signal.
Website: www.seco-larm.com
Email: sales@seco-larm.com
SECO-LARM U.S.A., Inc.

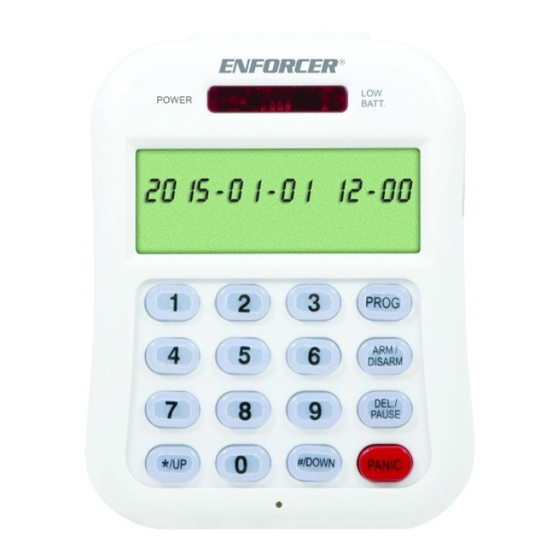

When triggered by an alarm system, the ENFORCER Auto Dialer can call up to 5 numbers. Each
number can contain up to 32 digits, including #, tones, and pauses. The LCD shows the number being
dialed at each stage of the dialing process. The receiver can then listen in to sounds in the room and
disarm the system. The same functions are available by remote call in as well as arming the system.
The dialer includes a home mode (acting like a door chime when the owner is present) and a panic
button. The 105dB built-in siren alarm can be programmed on or off. It also allows for the option of a
backup battery (not included) to continue offering protection during a power loss and uses flash memory
to protect against system data loss in case of extended power failure.
®
PIHLK1
MiE-921APQ_141029.docx
Auto Dialer
Manual
Models Available
Certification
E-921APQ
E-921GPQ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-921APQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ENFORCER E-921APQ

  • Page 1: Troubleshooting

    SECO-LARM’s option. In When triggered by an alarm system, the ENFORCER Auto Dialer can call up to 5 numbers. Each no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or number can contain up to 32 digits, including #, tones, and pauses.
  • Page 2 ENFORCER Auto Dialer ENFORCER Auto Dialer Summary Programming/Operation Chart: Table of Contents: Features ............2 Setting the Date and Time ......9 1. Setting/Changing PIN Number (see pg. 6) Parts List ............3 Testing the Auto Dial Function ......9 Current PIN [PROG] [ARM/DISARM] New PIN [ARM/DISARM] [PROG] x9 Specifications ..........
  • Page 3: Parts List

    ENFORCER Auto Dialer ENFORCER Auto Dialer Parts List: Program Planner: Auto dialer unit Telephone cable Use these charts during setup to record phone numbers and sensor locations for future reference. Remote control instruction card Dual outlet telephone jack adapter It is recommended that you use a pencil during setup and redo it in ink afterwards. The user...
  • Page 4 ENFORCER Auto Dialer ENFORCER Auto Dialer Overview: Operating the Auto Dialer, continued: Front DC Power LED Low-Battery (LOW BATT.) Indicator When the charge level of the 9VDC backup battery (not included) is low, the “LOW BATT.” LED Low Battery LED will flash once every 1.5 seconds.
  • Page 5 ENFORCER Auto Dialer ENFORCER Auto Dialer Operating the Auto Dialer, continued: Installing the Auto Dialer: Note: You can program the telephone numbers and voice messages prior to connecting the Remote Control by Telephone – Function Explanations, continued: power as long as the 9V battery is installed. The standby battery should provide about 20 hours of END CALL - Pressing [3 #] will end the call.
  • Page 6 ENFORCER Auto Dialer ENFORCER Auto Dialer Programming the Auto Dialer: Operating the Auto Dialer, continued: The setup mode may only be accessed when the dialer is in standby mode. If no key is pressed Remote Control by Telephone within 15 seconds, the dialer will automatically exit the setup mode.
  • Page 7 ENFORCER Auto Dialer ENFORCER Auto Dialer Operating the Auto Dialer: Programming the Auto Dialer, continued: Example 2 – To store a number with area code 1-949-555-1234, and an office extension #200 Arming and Disarming the System: (where the PBX requires a 2-second pause before the extension): After scrolling to the desired 1.
  • Page 8 ENFORCER Auto Dialer ENFORCER Auto Dialer Programming the Auto Dialer, continued: Programming the Auto Dialer, continued: Setting the Auto Dial Function Setting the Entry Delay Time The user can choose whether or not the dialer will dial the emergency numbers when triggered.
