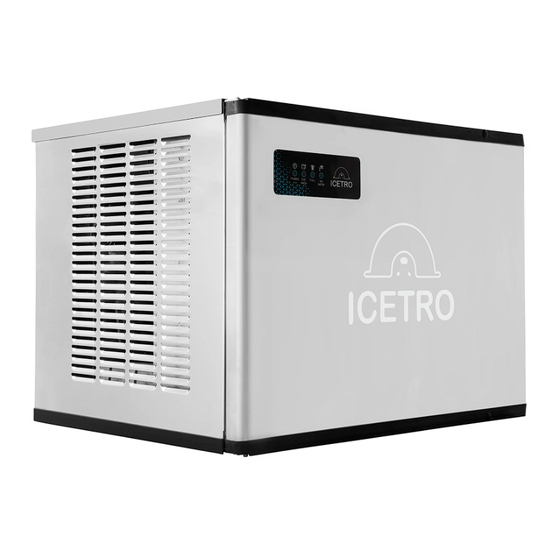

ICE MAKER USER MANUAL
MODEL : IM-0350-Series
※ This machine cannot be used in any other country
※ This product is designed for indoor installation.
※ The external appearance, design, color, and/or components
※ For maximum hygiene, be sure to clean and sterilize the product
IM-0460-Series
IM-0550-Series
IM-0680-Series
IM-0750-Series
IM-1100-Series
IM-1700 Series
IM-2000 Series
where the electric voltage for its power supply is not available.
Please be sure to install it indoors.
of this machine may be changed without prior notice for the sake
of the Company's product manufacture.
on a daily basis.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IM-0350 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for icetro IM-0350 Series

Summary of Contents for icetro IM-0350 Series

  • Page 1 ICE MAKER USER MANUAL MODEL : IM-0350-Series IM-0460-Series IM-0550-Series IM-0680-Series IM-0750-Series IM-1100-Series IM-1700 Series IM-2000 Series ※ This machine cannot be used in any other country where the electric voltage for its power supply is not available. ※ This product is designed for indoor installation. Please be sure to install it indoors.

  • Page 2: Table Of Contents

    INDEX 1. Preparations for safety 2. Specifications 8~21 3. Part names 22~26 4. How to install 27~40 - Suitable installation condition and place 27~28 - Installation Conditions - Line set instellation 30~31 - How to install the storage bin - How to Remove Panel - Installing the ice maker and connecting storage bin 34~35 - How to Connect Water Supply and Drain...

  • Page 3: Preparations For Safety

    1. Preparations for safety Warning Failure to follow these instructions may result in severe personal injury or death. Failure to follow these instructions may result in parts replacement expense and / Caution or service repair expense. SHOULD BE DONE PROHIBITION DO NOT DO NOT DISCONNECT...
  • Page 4 Warning Do not place or store heavy items or the top of the product. ◆ Damage by excessive weight can cause the unit to overheat and/or fire. Do not install the machine under humidity area or near the area where water could spatter. ◆...
  • Page 5 Warning Do not disassemble Do not modify the parts of icemaker, and repair without an authorized person ◆ It may cause the fire or extraordinary operation, and would result in the serious problem. Prohibition Do not bend the power cord severely, or allow it to be pressed by a heavy matter, which can cause damage to the cord.
  • Page 6 Warning Disconnect power plug For long term usage interruption or product shut-down, close the water supply valve, remove the ice from the product and unplug the power cord. Disconnect power plug Unplug the power cord first when cleaning or servicing. ◆...
  • Page 7 Caution Caution Remove any moisture oil, anything that may cause slipping on the ground near the product. ◆ Slipping and hitting the ice maker or sticking one's hand or foot into the bottom will cause injury. Hand over As you turn over the icemaker to the other user, please turn over the operation manual together.

  • Page 8: Specifications

    2. Specifications ITEM UNIT SPECIFICATIONS Model IM-0350-AC-22 IM-0350-AH-22 Shape of Ice DICE HALF DICE 22 x 22 x 22 9.5 x 29 x 22 Size inch 0.86 x 0.86 x 0.86 0.37 x 1.14 x 0.86 Number(EA) kg/day 180 ± 10% ※...
  • Page 9 ITEM UNIT SPECIFICATIONS Model IM-0460-AC-22 IM-0460-AH-22 Shape of Ice DICE HALF DICE 22 x 22 x 22 9.5 x 29 x 22 Size inch 0.86 x 0.86 x 0.86 0.37 x 1.14 x 0.86 Number(EA) kg/day 210 ± 10% ※ Maximum Manufacturing Capacitor lb/day 463 ±...
  • Page 10 ITEM UNIT SPECIFICATIONS Model IM-0550-AC-22 IM-0550-AH-22 Shape of Ice DICE HALF DICE 22 x 22 x 22 9.5 x 29 x 22 Size inch 0.86 x 0.86 x 0.86 0.37 x 1.14 x 0.86 Number(EA) kg/day 240 ± 10% ※ Maximum Manufacturing Capacitor lb/day 530 ±...
  • Page 11 ITEM UNIT SPECIFICATIONS Model IM-0350-AC IM-0350-AH Shape of Ice DICE HALF DICE 22 x 22 x 22 9.5 x 29 x 22 Size inch 0.86 x 0.86 x 0.86 0.37 x 1.14 x 0.86 Number(EA) kg/day 177 ± 10% ※ Maximum Manufacturing Capacitor lb/day 390 ±...
  • Page 12 ITEM UNIT SPECIFICATIONS Model IM-0460-AC IM-0460-AH IM-0460-WC IM-0460-WH Shape of Ice DICE HALF DICE DICE HALF DICE 22 x 22 x 22 9.5 x 29 x 22 22 x 22 x 22 9.5 x 29 x 22 Size inch 0.86 x 0.86 x 0.86 0.37 x 1.14 x 0.86 0.86 x 0.86 x 0.86 0.37 x 1.14 x 0.86 Number(EA) kg/day 213 ±...
  • Page 13 ITEM UNIT SPECIFICATIONS Model IM-0550-AC IM-0550-AH IM-0550-WC IM-0550-WH Shape of Ice DICE HALF DICE DICE HALF DICE 22 x 22 x 22 9.5 x 29 x 22 22 x 22 x 22 9.5 x 29 x 22 Size inch 0.86 x 0.86 x 0.86 0.37 x 1.14 x 0.86 0.86 x 0.86 x 0.86 0.37 x 1.14 x 0.86 Number(EA) kg/day 257 ±...
  • Page 14 ITEM UNIT SPECIFICATIONS Model IM-0680-AC IM-0680-AH Shape of Ice DICE HALF DICE 22 x 22 x 22 9.5 x 29 x 22 Size inch 0.86 x 0.86 x 0.86 0.37 x 1.14 x 0.86 Number(EA) kg/day 360 ± 10% ※ Maximum Manufacturing Capacitor lb/day 793 ±...
  • Page 15 ITEM UNIT SPECIFICATIONS Model IM-0750-AC IM-0750-AH Shape of Ice DICE HALF DICE 22 x 22 x 22 9.5 x 29 x 22 Size inch 0.86 x 0.86 x 0.86 0.37 x 1.14 x 0.86 Number(EA) kg/day 360 ± 10% ※ Maximum Manufacturing Capacitor lb/day 793 ±...
  • Page 16 ITEM UNIT SPECIFICATIONS Model IM-1100-AC IM-1100-AH IM-1100-WC IM-1100-WH Shape of Ice DICE HALF DICE DICE HALF DICE 22 x 22 x 22 9.5 x 29 x 22 22 x 22 x 22 9.5 x 29 x 22 Size inch 0.86 x 0.86 x 0.86 0.37 x 1.14 x 0.86 0.86 x 0.86 x 0.86 0.37 x 1.14 x 0.86 Number(EA) kg/day 541 ±...
  • Page 17 IM-1100-RC/IM-1100-RH IRC-1100 2160 2180 2190    X D X  -  14~71 ※ The maximum production calculated is based on ambient temperature and water temperature of 10℃(50℉). There may be deviations depending on the installation conditions, which may get severe during high temperature periods such as summer.
  • Page 18 ITEM UNIT SPECIFICATIONS Model IM-1700-AC IM-1700-AH IM-1700-WC IM-1700-WH Shape of Ice DICE HALF DICE DICE HALF DICE 22 x 22 x 22 9.5 x 29 x 22 22 x 22 x 22 9.5 x 29 x 22 Size inch 0.86 x 0.86 x 0.86 0.37 x 1.14 x 0.86 0.86 x 0.86 x 0.86 0.37 x 1.14 x 0.86 Number(EA) 1,054 1,54...
  • Page 19 ITEM UNIT SPECIFICATIONS Model IM-1700-RC IM-1700-RH IRC-1700 Shape of Ice DICE HALF DICE 22 x 22 x 22 9.5 x 29 x 22 Size inch 0.86 x 0.86 x 0.86 0.37 x 1.14 x 0.86 Number(EA) 1,054 kg/day 801 ± 10% ※...
  • Page 20 ITEM UNIT SPECIFICATIONS Model IM-2000-AC IM-2000-AH IM-2000-WC IM-2000-WH Shape of Ice DICE HALF DICE DICE HALF DICE 22 x 22 x 22 9.5 x 29 x 22 22 x 22 x 22 9.5 x 29 x 22 Size inch 0.86 x 0.86 x 0.86 0.37 x 1.14 x 0.86 0.86 x 0.86 x 0.86 0.37 x 1.14 x 0.86 Number(EA) 1,054 1,54...
  • Page 21 ITEM UNIT SPECIFICATIONS Model IM-2000-RC IM-2000-RH IRC-2000 Shape of Ice DICE HALF DICE 22 x 22 x 22 9.5 x 29 x 22 Size inch 0.86 x 0.86 x 0.86 0.37 x 1.14 x 0.86 Number(EA) 1,054 kg/day 879 ± 10% ※...

  • Page 22: Part Names

    3. Part names - Air cooled(22",30") FRONT REAR TOP PANEL POWER CORD FILTER SCREW (TOP) STATUS INDICATOR FRONT PANEL DRAIN OUTLET WATER INLET FIX SCREW(BOTTOM) LEFT SIDE RIGHT SIDE 24.8" (630 mm) LEFT PANEL RIGHT PANEL 24.6" (624 mm) MODEL Wt (mm) Wb (mm) H (mm)
  • Page 23 3. Part names - Water cooled(22",30") FRONT REAR WATER INLET(COOLING) TOP PANEL SCREW POWER CORD WATER OUTLET (TOP) (COOLING) STATUS INDICATOR FRONT PANEL REMAIN WATER DRAIN LINE DRAIN OUTLET WATER INLET FIX SCREW(BOTTOM) (Prevention of frost) HAND VALVE LEFT SIDE RIGHT SIDE 24.8"...
  • Page 24 3. Part names - Air cooled(48") • IM-1700-A~, IM-2000-A~ FRONT REAR SCREW JUCTION BOX (TOP) (POWER) TOP PANEL  48.2"(1,223mm)   36"(913mm)   11.8"(299)  EMBEDDED PULL STATUS INDICATOR CONDENSER  47.9"(1,217mm)  FILTER FIX SCREW FRONT PANEL(L) DRAIN OUTLET FRONT PANEL(R) WATER INLET (BOTTOM) LEFT SIDE RIGHT SIDE  24.9"(633mm) ...
  • Page 25 3. Part names - Water cooled(48") • IM-1700-W~, IM-2000-W~ FRONT REAR SCREW TOP PANEL (TOP) JUCTION BOX  48.2"(1,223mm)  (POWER)  36"(913mm)   11.8"(299)  EMBEDDED PULL STATUS INDICATOR WATER INLET  47.9"(1,217mm)  WATER OUTLET (COOLING) FRONT PANEL(L) (COOLING) FRONT PANEL(R) FIX SCREW DRAIN OUTLET (BOTTOM) WATER INLET LEFT SIDE...
  • Page 26 3. Part names - Remote(48") • IM-1700-R~, IM-2000-R~ FRONT REAR SCREW TOP PANEL (TOP) JUCTION BOX  48.2"(1,223mm)  (POWER)  36"(913mm)   11.8"(299)  EMBEDDED PULL STATUS INDICATOR  47.9"(1,217mm)  DISCHARGE SUCTION CONNECTOR CONNECTOR FRONT PANEL(L) FIX SCREW FRONT PANEL(R) DRAIN OUTLET (BOTTOM) WATER INLET LEFT SIDE RIGHT SIDE  24.9"(633mm) ...

  • Page 27: How To Install

    4. How to install Suitable installation condition and place ⊙ Places without heat sources The product has to be installed at places without a heat ◆ source such as stove or gas range or any place that is out of the range of the ambient temperature (10 ~ 38℃, 50~100℉).
  • Page 28 Suitable installation condition and place ⊙ Be sure to install the product in clean places. ◆ Ice will be used for food or human consumption. Thus, the installation site must be clean and hygienic. Clean and hygienic places! ⊙ The product must be installed indoors. ◆...

  • Page 29: Installation Conditions

    Installation conditions 1) Remote condenser needs at least 410mm(16.1") clearance from floor. -Discharge air to top. Need space for air inflow 2) Max. tubing line length (H+R+D)must be less than 45m(148ft) R: Tubing to top ≤ 10.7m(35ft) H: Between head to condenser ≤ 30m(98ft) D: From top to condenser ≤...
  • Page 30 Line set installation 1) Configuration [Tubing line connection parts.] ⓐ Discharge connector (1/2" tube) ⓑ Suction(Inlet) connector (3/8" tube) ⓒ Fan Motor electric wire connection Discharge valve (Discharge Pipe 1/2″) Line set Ball Valve Suction valve Ice Maker Head (Suction Pipe 3/8″) Wire connection Powered by ice maker head...

  • Page 31: Line Set Instellation

    Line set installation 2) Route the factory line set to the ice maker head from the remote condenser Ice maker head : R-404A precharged (amount of refrigerant : 5,200g / 15m(50ft) Factory Line Remote condenser : R-404A precharged ⓐ Remove the protective covers from the male fitting and female coupling. ⓑ...

  • Page 32: How To Install The Storage Bin

    How to install the storage bin 1. Unpack the ice storage bin and make sure that it will not be moved after installation. 2. Connect the drain hose at the bottom outlet part and fully tighten the joints at the connecting part in order to minimize leaks. Tighten the joints at the connecting part, face the outlet of the hose upward, and pour some water into the bin to check for leaks.

  • Page 33: How To Remove Panel

    How to Remove Panel 1. Front Panel: Loosen the top and bottom screws on the front panel and open the front panel. 2. Top Panel: Lift up the front side of the top panel slightly and push toward the rear side to remove. 3.

  • Page 34: Installing The Ice Maker And Connecting Storage Bin

    Installing the ice maker and connecting storage bin 1. Use the lifting device to put the ice maker on top of the bin. Otherwise, at least 2 to 3 persons must work together to put the ice maker on the bin. ◆...
  • Page 35 Place the ice maker on top of the bin and ensure it is fixed. The manufacturer will not be held responsible for the accidents resulting from the ice maker that was not fixed and fell off in use. Ice Maker Fixing Bracket Windbreak Storage Bin...

  • Page 36: How To Connect Water Supply And Drain

    How to Connect Water Supply and Drain [ Water Supply and Drain Hoses Connection ] Appropriate Water Division Water Pressure Hose Used Temperature Cooling Water Supply ⅜" FPT(NPT) 50 ~ 90 ℉(10 ~ 32 ℃) 14 ~ 71 psi(0.1~0.5MPa) (Water-Cooled) Cooling Water Drain ¾"...
  • Page 37 [ Coolant Flow Control Valve: Checking and Adjusting Pressure ] ※ If the pressure of the coolant flow control valve is inappropriate, it may use more water or may not produce ice. ※ Please check the user manual to adjust it to appropriate pressure. 1.

  • Page 38: About Grounding

    About Grounding ※ Be sure to ground the product to prevent electric shock. ⊙ Grounding method - When there is a grounding terminal In case of plugging the icemaker into an outlet equipped with a grounding terminal, extra grounding is unnecessary. ⊙...

  • Page 39: Electrical Connection

    Electrical Connection - Junction Box Type • Electrical connection must be hard-wired and must meet national, state, and local electrical code requirements. Failure to meet these code requirements could result in death, electric shock, serious injury, fire, or damage. • The icemaker requires an independent power supply of proper capacity.

  • Page 40: After Installation

    After Installation ⊙ Protection of the water supply hose Do not put any heavy object on the water supply hose. Do not step on it either. ⊙ The appropriate water pressure, water temperature, or ambient temperature is... This ice maker must be used under conditions of 14~71 psi, 14 ~ 71 psi water supply of 10~32 ℃(50~90 ℉), and ambient 50 ~ 90 ℉...

  • Page 41: Operation Guide 41~43

    5. Operation Guide ICE MAKING 1. Place the power switch on the panel parts to 'up (ICE)' to run the machine. ◆ When the product begins to run, the water WASH will be supplied to water vessel, and the condenser and water pump will begin to run.

  • Page 42: Off

    1. Place the power switch on the panel parts in the 'Middle (OFF)' to stop the machine. WASH ◆ When you place the power switch from 'ICE' → 'OFF', the machine will stop after ice making / harvest completes. ◆ When you place the power switch from 'WASH' → 'OFF', the machine will stop after the washing cycle ends Adjusting Ice Thickness 1.
  • Page 43 3. Water amount control supplying to the water through Ice thickness probe clearance adjustment Factory IM-1100-RC IM-1100-RH setting 5.0 mm 4.5 ~ 5,5 mm IM-1700-RC IM-1700-RH 5.5 mm 5,5 mm IM-2000-RC IM-2000-RH 5.5 mm 5,5 mm ⓐ Open the front door by loosing top and bottom bolts ⓑ...

  • Page 44: Operating Status Display 44~46

    6. Operating Status Display Item Display Front Indicator Lamp Action Power Input Stop (normal status) Ice Making Normal operation (run) Wash Flickers for 1sec Normal operation (run) Full Bin Stop (normal status) Re-operates if the problem Water Supply Er 15 is resolved after checking it Trouble automatically on every hour.

  • Page 45: Display Of Flexible Numeric Display (Fnd) Module

    [ Display of Flexible Numeric Display (FND) Module ] ※ Attention: FND module is an optional feature. This is applied to only the models to which FND module is mounted. "Increase" Button "Decrease" Button "Mode" Button ● Operating Order 1. In standby mode, FND is off. 2.

  • Page 46: Display And How To Use

    [ Display and How to Use ] Item Display Description 1. Adjust initial drain time. Initial Drain Time 2. Range: oFF ~ 30 sec. (by 1 seconds) Drain Time after 1. Adjust drain time after harvest. Harvest 2. Range: oFF ~ 30 sec. (by 1 seconds) Drain Time after Ice 1.

  • Page 47: Removal From Service/Winterization 47~48

    7. Removal from Service/Winterization Air-Cooled ICE MACHINES General Special precautions must be taken if the ice machine is to be removed from service for an extended period of timeor exposed to ambient temperatures of 32°F (0°C) or below. Caution If water is allowed to remain in the ice machine in freezing temperatures, severe damage to some components could result.

  • Page 48: Water-Cooled Ice Machines

    Water-cooled ICE MACHINES 1. Perform steps 1-6 under “Self-Contained Air-Cooled Ice Machines.” 2. Disconnect the incoming water and drain line from the water-cooled condenser. 3. Remove the cover from the control box and push in the contactor so that the compressor starts. The increasing refrigerant pressure will open the water regulating valve.

  • Page 49: Maintenance, Repair, And Disinfection 49~53

    8. Maintenance, Repair, and Disinfection Disassembling Parts for Washing and Disinfection 1. Disassembly of Water Curtain ① Hold the bottom side of the water curtain with both hands, slightly pull to the front, and push upward to remove. ① 2. Disassembly of Ice Thickness Sensor ①...

  • Page 50: Cleaning And Disinfection 50~52

    Cleaning and Disinfection General ● The end user has the responsibility to take good care of and repair this ice maker according to the descriptions of this manual. The insurance does not cover the maintenance procedure. Basic sanitation and the maintenance and repair of ice maker will enhance reliability and performance and also reduce water consumption and power consumption.
  • Page 51 Step 1: After the ice falls off the evaporator, turn off the switch in the final stage of ice harvest cycle. Or place the switch to OFF to stop automatically after making and harvest ice. ※ Caution: Do not remove ice from evaporator by force. It could damage evaporator. Step 2: Remove all ice inside the bin.
  • Page 52 Step 10: When cleaning and rinsing ends, the lime substance will be removed. If it was not rinsed completely and bubbles are forming inside the water vessel and so on, perform Step 9 again. Step 11: Washing completes in Step 10. Step 11 is disinfection. You must disinfect the ice maker at least once a month.

  • Page 53: Cautions For Cleaning The External Panel(Stainless Steel)

    Cautions for cleaning the external panel(stainless steel) ※ Regular wash for stainless can prevent rust. ※ How to remove rust How to clean rusted parts 1. Rust spots in early stage - Rust spots in early stage mean that the stainless steel itself is not severely affected, thus mild detergent or any commercially available cleaning agent will restore original state.

  • Page 54: Type Of Product Error

    9. Type of Product Error Display Type of Cause What to Do Release Action Front Indicator Error Error Lamp Code Automatically Full Bin The bin is filled with ice. Use of ice release when the Stop bin is emptied. Reconnect power Water Water for making ice is not Check water...

  • Page 55: Before Contacting Service Center

    10. Before Contacting Service Center If the machine is not operating as it is expected to, please check the following. If the machine does not operate properly afterwards, please contact the retailer you purchased the product from or the service center. When you contact the retailer or service center, please inform them the following thoroughly.
  • Page 56 Online Internet Service http://www.icetro.com 3 2 4 0 4 2 2 - 0 7...
