Monitoring - Omron CX-PROGRAMMER - INTRODUCTION GUIDE Introduction Manual

Online
Online
to Transfer
to Transfer
Change the PLC
Change the PLC
(simulator) to
(simulator) to
Monitor Mode.
Monitor Mode.
Click
Click [Yes].

Monitoring

Monitoring

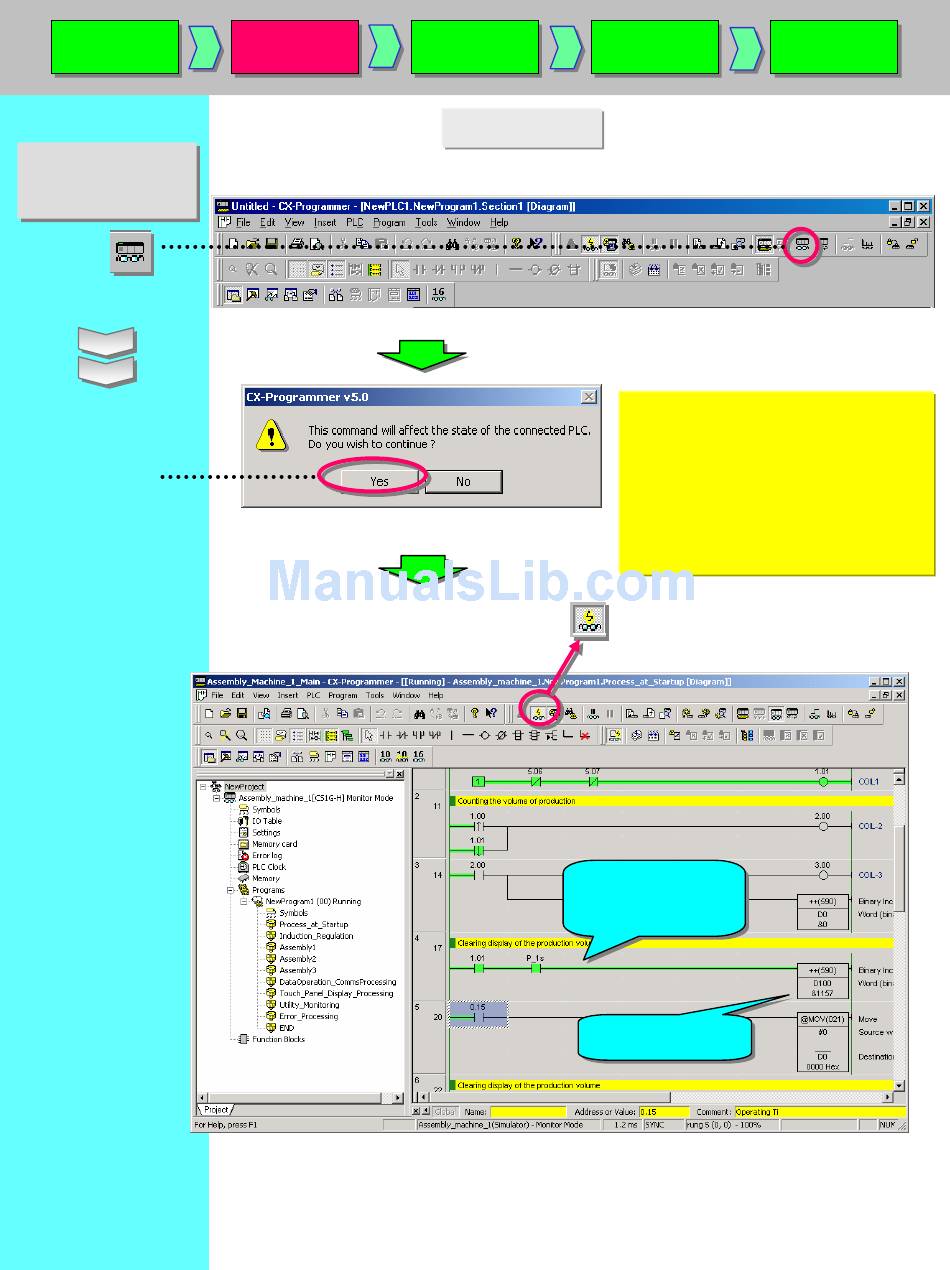

The on/off statuses of contacts and coils are monitored.
Force On
Force On
Force Off
Force Off
3. Monitoring
toggles on/off of PLC monitoring.
The rungs being
The rungs being
monitored are shown
monitored are shown
in a specified color.
in a specified color.
The present value of
The present value of
I/O memory is shown.
I/O memory is shown.
Program
Program
Check
Check
If your program has a large volume of
data, the scroll speed of the screen
may become slow when monitoring.
In that case, click the below icon to
cancel monitoring once, scroll the
screen to the address you want to
monitor, and then change to
monitoring mode again.
