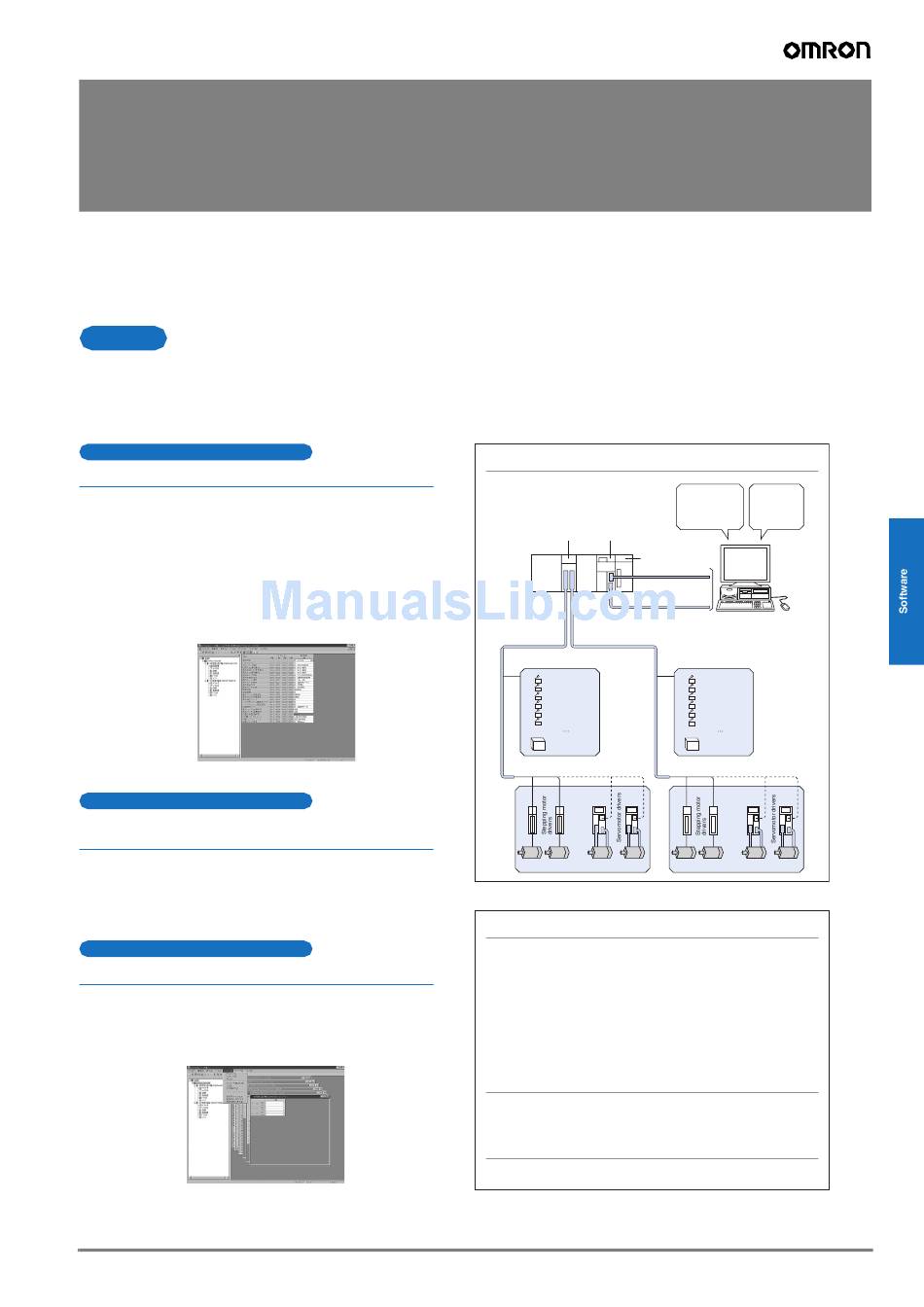

Omron CX-POSITIO Specifications

WS02-NCTC1-E
CX-Position
Set, transfer, store, and print position control unit data and monitor operation online
Increase productivity in all position control tasks, from design and startup to system
maintenance.
Key Features
The CX-Position software simplifies every aspect of position control, from creating/editing the data used in Position
Control Units (NC Units) to communicating online and monitoring operation. The software is equipped with
functions that can improve productivity, such as automatically generating project data and reusing existing data.
Creating and managing data
Data can be created for various applications
The CX-Position enables data for multiple NC Units on up to 1,000 PLCs to
be handled as 1 project. Data is displayed in tree format and the data for an
NC Unit can be moved or copied (overwritten) between PLCs in the project
tree. This feature allows data to be edited and re-used in other PLCs or NC
Units.
●The CX-Position can read information from NC Units connected online
and automatically generate project data.
●Data created for a C200HW-NC@@@ using the SYSMAC-NCT can be
imported and used as data for the CS1W-NC@@@ or CJS1W-NC@@@.
NC Monitor
Display the NC units' present positions, error codes, sequence
numbers, and I/O status.
The sequence numbers and present positions can be dis-played for up to 4
Units. In addition, the contents of the operating memory area and operating
data area can be monitored and the error log can be displayed.
Communications
Communicate with NC units through the network.
It is possible to communicate with NC Units through the Fins-Gateway.
Depending on the FinsGateway driver version, HostLink or Ethernet. can
be used to perform online operations (monitoring operation or
transferring/verifying parameters,sequences, etc.) with the NC Unit.
CX-Position
System Configuration with CS1W-NC413/433
NC Unit CPU Unit
(CS1W-NC413/433) (CS1 Series)
Power Supply Unit
Peripheral bus/Host Link
External inputs
CCW limit input
CW limit input
Origin input
Origin proximity input
Emergency stop input
Interrupt input
Interface power
supply (24 V)
or
Stepping motors Servo motors
Specifications
Compatible CS Series:CS1W-NC113/NC133/NC213/NC413/NC433
Position Control CJ Series: CJ1W-NC113/NC133/NC213/NC413/NC433
Units:
Basic Functions Create, edit, and print the Position Control Unit's parameter
data,sequence data, speed data, acceleration/deceleration
data, dwell times, and zone data. Monitor the Position Control
Unit's operating status.
CX-Position project files (*.nci)
Created files
Contents: Parameter data, sequence data, speed data,
acceleration/deceleration data, dwell times, and zone data
Operating Environment
Pentium 100 MHz or faster CPU
CPU:
Windows 95, 98, NT4.0, W2000 or XP
OS:
Compatible PLCs:
CS Series and CJ Series
CX-Position
CX-Programmer
Creation and
Creation and transfer
transfer of data,
of ladder programs,
NC Unit
monitoring, file
monitoring, file
management, etc.
management, etc.
External inputs
CCW limit input
CW limit input
Origin input
Origin proximity input
Emergency stop input
Interrupt input
Interface power
supply (24 V)
or
Stepping motors Servo motors
