Main Window - Omron CX-PROGRAMMER - INTRODUCTION GUIDE Introduction Manual

Title Bar
Menus
Toolbars
Project Tree
Section
Status Bar
Project Workspace
Name
Title Bar
Menus
Toolbars
Section
Project Workspace
Project Tree
Ladder Window
Output Window
Status Bar
Information Window
Symbol Bar

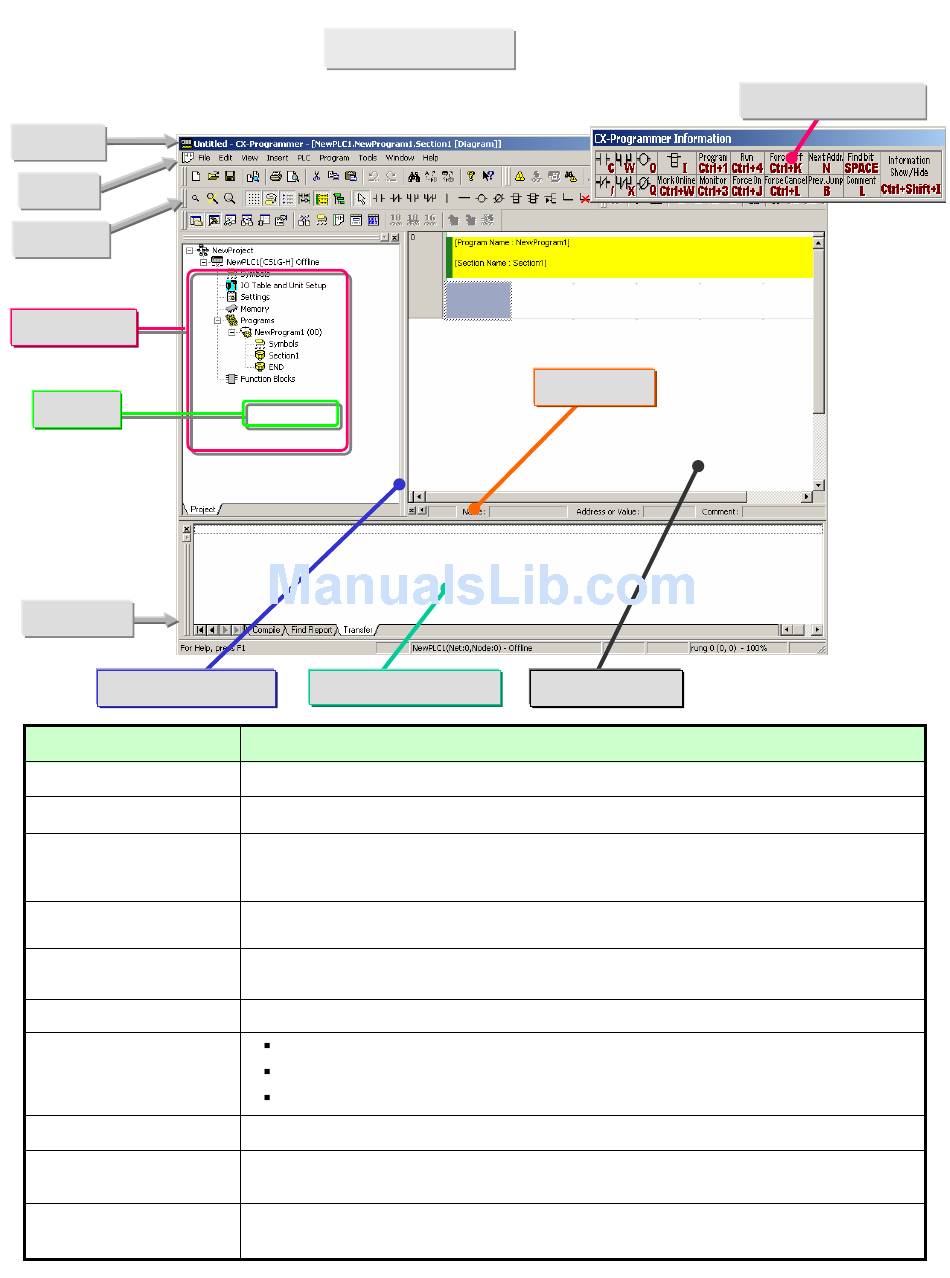

4. Main Window

Each function of the main window is explained here.
Output Window
Shows the file name of saved data created in CX-Programmer.
Enable you to select menu items.
Enable you to select functions by clicking icons. Select [View] -> [Toolbars], and
you can select toolbars to be displayed. Dragging toolbars enables you to change
the display positions by the group.
Enables you to divide one program into a given number of blocks. Each can be
created and displayed.
Controls programs and data. Enables you to copy data by the element by
executing Drag and Drop between different projects or within a project.
A screen for creating and editing a ladder program.
Shows error information in compiling (error check).
Shows the results of searching for contacts/coils in the list form.
Shows error details when errors occurred while loading a project file.
Shows information such as a PLC name, online/offline, location of an active cell.
Displays a small window to show the basic shortcut keys used in CX-Programmer.
Select [View] -> [Information Window] to show or hide the Information window.
Displays the name, address or value, and comment of the symbol presently
selected by the cursor.
Symbol Bar
Ladder Window
Contents/Function
Information Window
