Omron CX-ONE - INTRODUCTION GUIDE 1 Introduction Manual page 24

Starting CX-
Design
Programmer
See Library
See Library
Select [Library] from the
[Tools] menu
Place Smart Active
Place Smart Active
Parts on the screen.
Parts on the screen.
1. Select SmartActiveParts_E
-Motion - NCF -
OutCIO_InCIO folder
2. Select _NCF001_xx
_Adjust Operation
(Check the Title)
Setup Smart Active
Setup Smart Active
Parts
Parts
1. Double-click
2. Set 4 to the Destination
Unit No.
3. Click [OK]
Smart Active Parts
Smart Active Parts
Setting is complete
Setting is complete
Setup is completed at 100%
Save the Project.
Save the Project.
Setting
Creating Unit
CPU Bus
Configuration
Units/SIOU

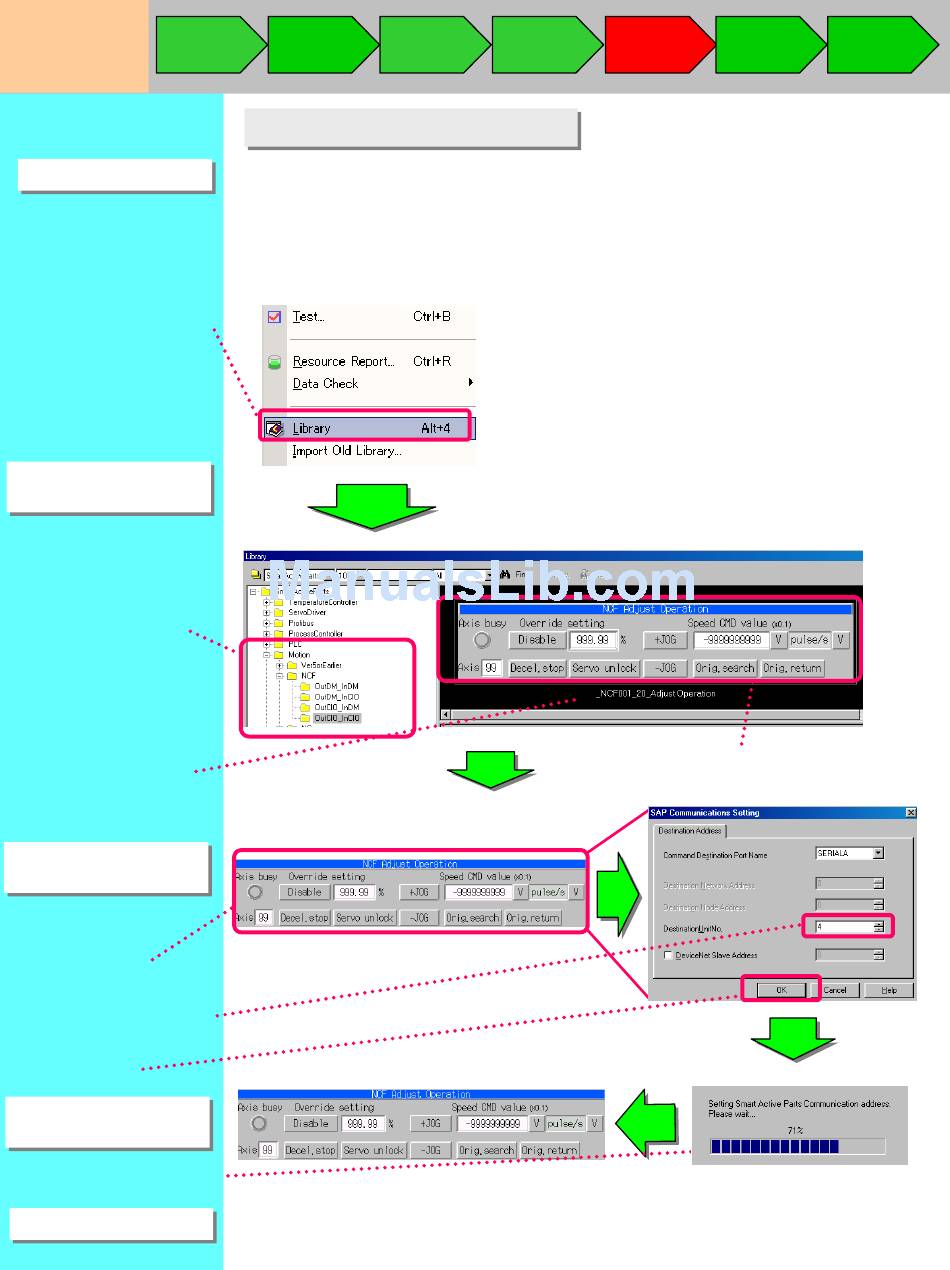

How to use Smart Active Parts
How to use Smart Active Parts
This section describes how to use Smart Active Parts. In this example, NCF Smart Active Parts
"Adjust Operation" is used.
From [Start] menu, select [Programs] > [OMRON] > [CX-One] > [CX-Designer] > [CX-Designer
Ver.1.0] to start CX-Designer. (Or select [All Programs] > [OMRON] > [CX-One] > [CX-Designer]
> [CX-Designer Ver.1.0].) Select [NS8-TV0[]-V1] and [System Version 6.0] or later.
4. The selected Smart Active Parts are
displayed on the screen.
Refer to Page 2-13 "Saving Project" for details.
Checking I/O
Programming
Assignment
3. Drag & drop it on the screen.
4. Communication address is
automatically calculated according
to the corresponding Unit.
Saving
Offline Debug
a Project
