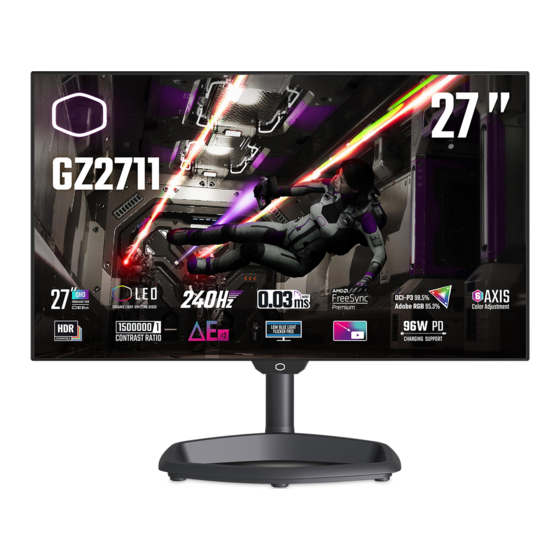

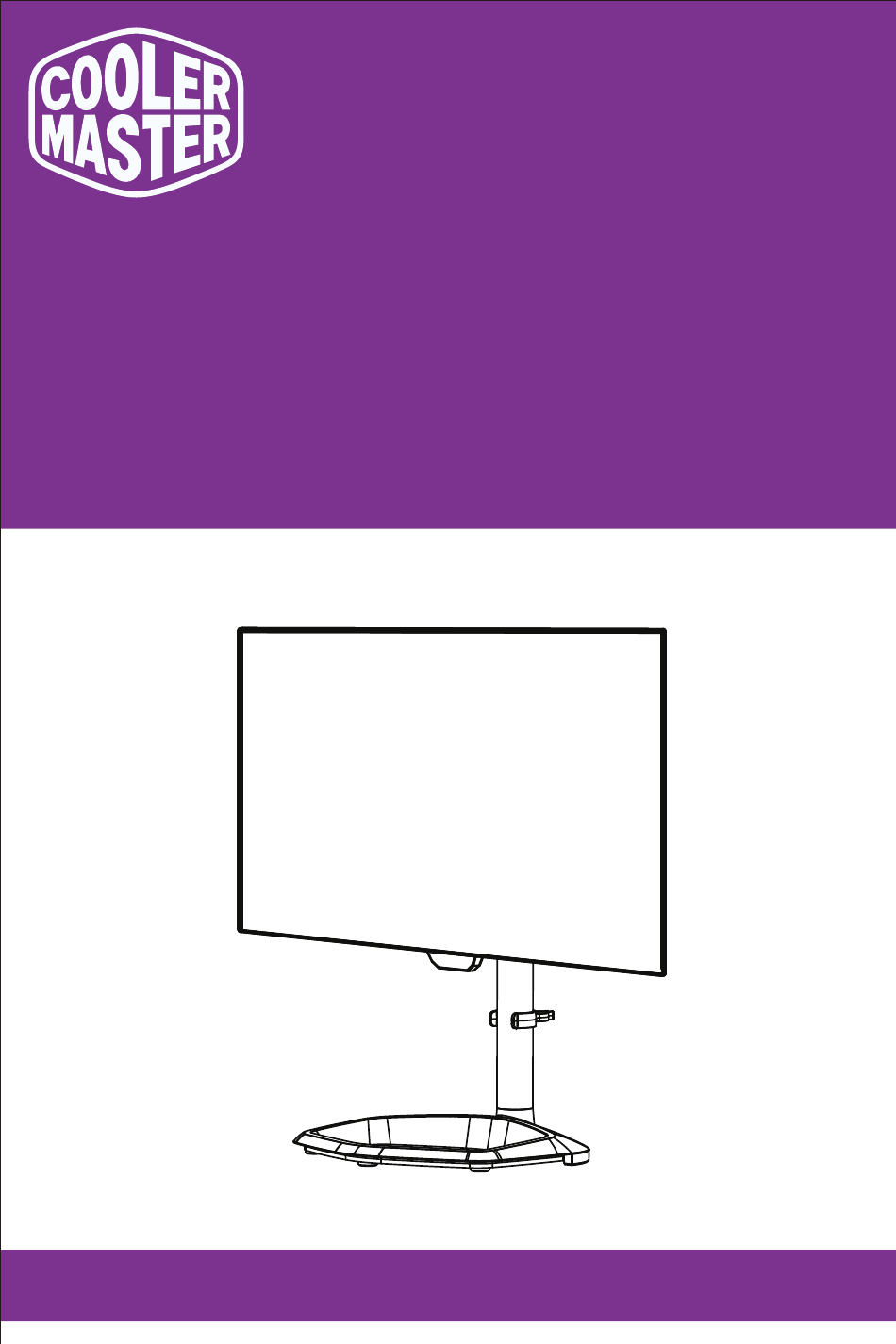

- Page 1 GZ2711 Cooler Master 27" Gaming Monitor User Manual 【English】...
-
Page 2: Table Of Contents
Table of Contents Important Safety Instructions ................... Package Contents ....................Connect the monitor to the base ................Adjusting the monitor ....................Wall Mount Installation Instructions ................. External Control Buttons..................OSD Function Introductions..................Main Menu ....................... Specifications ......................Supported HDMI &... - Page 3 If assistance is needed, contact the distributor or a professional radio/TV technician. CE Compliance Statement Cooler Master Technology Inc. hereby declares that the monitor conforms to the following key standards and other related provisions: EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, RoHS Directive 2011/65/EU and Directive 2009/125/EC establishing a framework for the setting of eco-design requirements for energy-related products.
-
Page 4: Important Safety Instructions
• Monitor -to -PC signal cable is frayed or damaged. • Liquid spills onto the OLED monitor or the monitor is exposed to rain. • The OLED monitor or case is damaged. Cooler Master OLED Monitor User Manual-1... -
Page 5: Package Contents
Type C cable x 1 Base screw x 1 Cable clip x 1 (Used for cable fixed in the (Used for installation of the back of the support stand) support base and support stand) Cooler Master OLED Monitor User Manual-2... -
Page 6: Connect The Monitor To The Base
Connect the monitor to the base open clasp hands Cooler Master OLED Monitor User Manual-3... - Page 7 HDMIx2 DPx2 Type C Cooler Master OLED Monitor User Manual-4...
-
Page 8: Adjusting The Monitor
·When adjusting the monitor viewing angles, avoid touching the screen and hold the stand in order to prevent it from falling over. Swivel:-15°~+15° (Left/Right) Swivel:-15°~+15° Pivot:0°~±90° ±110mm Height Adjustment:0~110 mm Tilt:-5°~+15° Note:It is normal that the monitor slightly shakes while you adjust the viewing angle. Cooler Master OLED Monitor User Manual-5... -
Page 9: Wall Mount Installation Instructions
Wall Mount Installation Instructions open clasp hands 75mm x 75mm M4x14mm*4pcs Cooler Master OLED Monitor User Manual-6... -
Page 10: External Control Buttons
Down: Moves the highlight down. Left/Decrease: Moves the highlight to the left or decreases the displayed value when editing an entry. Right/increase: Moves the highlight to the right or increases the displayed value when editing an entry. Cooler Master OLED Monitor User Manual-7... - Page 11 HDMIx2 DPx2 Type C Cooler Master OLED Monitor User Manual-8...
-
Page 12: Osd Function Introductions
COLOR MODE REC709 NATIVE AUTO RGB MODE COLOR SPACE AUTO YUV MODE AUTO FULL RANGE COLOR RANGE AUTO LIMITED RANGE BLUE LIGHT FILTER (-/+) 0-100 AMD FreeSync Premium GAMING SETUP CROSSHAIR GAME ASSIST FPS COUNTER Cooler Master OLED Monitor User Manual-9... - Page 13 Czech 日本語 한국의 繁體中文 简体中文 RESOLUTION NOTICE PIP / PBP RESOLUTION:2560X1440 H. FREQUENCY:XXKHZ V. FREQUENCY:XXHZ INFORMATION PIXEL CLOCK:XXMHZ MODEL NUMBER:GZ2711 SERIAL NUMBER:XX OSD TIMEOUT (-/+) 5-60 OSD BACKGROUND OSD PIVOT SETUP MENU POWER INDICATOR GREEN BLUE PURPLE 1 AMBIENT LIGHT...
-
Page 14: Main Menu
Main Menu INPUT SELECT INPUT AUDIO VIEW PICTURE COLOR GAMING SETUP SELECT ADJUST MODE SETTING ADJUST SETUP MENU HDMI1 HDMI2 DISPLAYPORT1 DISPLAYPORT2 TYPE C Note：Enter the input menu to switch the input signal. Cooler Master OLED Monitor User Manual-11... - Page 15 AUDIO ADJUST INPUT AUDIO VIEW PICTURE COLOR GAMING SETUP SELECT ADJUST MODE SETTING ADJUST SETUP MENU VOLUME MUTE Cooler Master OLED Monitor User Manual-12...
- Page 16 VIEW MODE INPUT AUDIO VIEW PICTURE COLOR GAMING SETUP SELECT ADJUST MODE SETTING ADJUST SETUP MENU STANDARD FPS GAME RTS GAME MOBA GAME MOVIE Cooler Master OLED Monitor User Manual-13...
- Page 17 PICTURE SETTING INPUT AUDIO VIEW PICTURE COLOR GAMING SETUP SELECT ADJUST MODE SETTING ADJUST SETUP MENU BRIGHTNESS CONTRAST ASPECT RATIO SHARPNESS BLACK STABILIZATION OVERSCAN Note：Picture all kinds of choice model Cooler Master OLED Monitor User Manual-14...
- Page 18 COLOR ADJUSTMENT INPUT AUDIO VIEW PICTURE COLOR GAMING SETUP SELECT ADJUST MODE SETTING ADJUST SETUP MENU GAMMA COLOR TEMPERATURE 6-AXIS COLOR COLOR MODE COLOR SPACE COLOR RANGE Cooler Master OLED Monitor User Manual-15...
- Page 19 GAMING SETUP INPUT AUDIO VIEW PICTURE COLOR GAMING SETUP SELECT ADJUST MODE SETTING ADJUST SETUP MENU AMD FreeSync Premium GAME ASSIST Cooler Master OLED Monitor User Manual-16...
- Page 20 SETUP MENU INPUT AUDIO VIEW PICTURE COLOR GAMING SETUP SELECT ADJUST MODE SETTING ADJUST SETUP MENU LANGUAGE SELECT RESOLUTION NOTICE PIP / PBP INFORMATION OSD TIMEOUT OSD BACKGROUND Cooler Master OLED Monitor User Manual-17...
-
Page 21: Specifications
Pivot：0~±90° Tilt：-5°~15° Compliance If you have any question regarding use of the monitor, please visit: https://www.coolermaster.com/warranty *Specifications are subject to change without notice. **Measure a screen brightness of 160 nits without audio/USB/Card reader connection. Cooler Master OLED Monitor User Manual-18... -
Page 22: Supported Hdmi & Dp Resoulution
(KHz) (Hz) (MHz) 59.810 WXGA+ 1440x900@60Hz 83.500 49.702 59.887 106.500 55.935 148.500 148.697 285.500 119.982 120Hz 2560x1440@60Hz 93.359 59.951 241.500 2560x1440@120Hz 194.433 119.880 497.750 2560x1440@144Hz 228.906 143.856 586.000 2560x1440@165Hz 244.4 664.67 2560x1440@240Hz 356.7 966.8 Cooler Master OLED Monitor User Manual-19... -
Page 23: Declaration Of Restricted Substances
Declaration of Restricted Substances : OLED Monitor : GZ2711 Internal and external cases (External case, case, support…) Main Board Other Circuit Boards OLED Display Panel Speakers Base Power Supply (Switching adapter) Accessories (Power cable, HDMI signal cable…) Other fixed components... -
Page 24: Product Outline Dimensions
Product Outline Dimensions Tilt:-5°~+15° 15° 15° Swivel:-15°~+15° (Left/Right) Cooler Master OLED Monitor User Manual-21...
