Summary of Contents for Cooler Master GA271

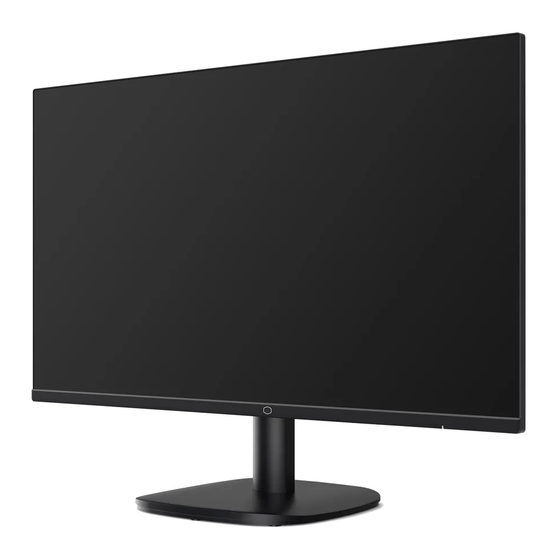

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Cooler Master GA271 o cerca il tuo prodotto tra le migliori offerte di Monitor GA271 Cooler Master 27" Gaming Monitor User Manual...
-
Page 2: Table Of Contents
Table of Contents ................1 Requirements and Safety Notice ................3 Important Safety Instructions Package Contents ....................4 ................5 Installing the Monitor Arm/Base Adjusting the Monitor ................... 7 Wall Mount Installation Instructions ............... 8 External Control Buttons ..................9 Main Menu ...................... -
Page 3: Requirements And Safety Notice
If assistance is needed, contact the distributor or a professional radio/TV technician. CE Compliance Statement Cooler Master Technology Inc. hereby declares that the monitor conforms to the following key standards and other related provisions: EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, RoHS Directive 2011/65/EU and Directive 2009/125/EC establishing a framework for the setting of eco-design requirements for energy-related products. - Page 4 限用物質含有情況標示聲明書 限用物質及其化學符號 Restricted substances and its chemical symbols 六價鉻 多溴聯苯 多溴二苯醚 單元 Ｕnit Lead Mercury Cadmium 鉛 汞 鎘 Hexavalent Polybrominated Polybrominated chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (PBB) (PBDE) ○ ○ ○ ○ ○ ○ 支架/外殼 － ○ ○...
-
Page 5: Important Safety Instructions
Important Safety Instructions Please read the following instruc ons carefully. 1. To clean the LCD monitor screen: Turn off the LCD monitor and unplug the power cord. Spray a non-solvent cleaning solu on onto a rag and clean the screen gently. 2. -
Page 6: Package Contents
Package Contents Monitor Support stand Support base Power adapter Power cord （Optional） HDMI cable（Optional） DP cable (Optional）... -
Page 7: Installing The Monitor Arm/Base
Installing the Monitor Arm/Base... -
Page 9: Adjusting The Monitor
Adjusting the Monitor For the best results, it is recommended to look directly at the front of the monitor and make any adjusts as necessary. Ensure that the monitor is mounted upright on the stand base. When adjusting the monitor viewing angles, avoid touching the screen and hold the stand in order to prevent it from falling over. -
Page 10: Wall Mount Installation Instructions
Wall Mount Installation Instructions 100mm VESA : 100 x 100 mm Screws : M4 x 10 mm... -
Page 11: External Control Buttons
External Control Buttons ① Menu/Navi/OK button Short press to turn on the monitor and Long press to turn off. When the OSD menu is activated,pull up/down/left/right the button to adjust the settings you need.When finished, you can pull the Button Back to return to the previous level or use the Button Exit to close the OSD menu. -
Page 12: Main Menu
Main Menu Picture Picture Picture Mode Standard Color Brightness Audio Contrast Gaming Black Stabilization Blue Light Filter System Advanced DCR Information Exit enter Move Enter the Picture menu to configure image setting. Picture Mode: Enter the Picture Setting menu to adjust different picture modes. a. -
Page 13: Color
Color Picture Gamma Color Space Standard Color Color Temperature Native Audio R Gain Gaming G Gain B Gain System Information Exit enter Move Enter the Color menu to adjust the ideal color mode. Gamma: Adjust gamma curve between 1.8, 2.2 and 2.4. Color Space: Convert the clolor space between sRGB, Rec.709, HDR, EBU,SMPTE-C and Standard. -
Page 14: Osd
Enter the Audio menu to adjust functions including Mute and Volume functions etc. Volume: Adjust the volume value between 0 and 100. Mute: Enable or disable the mute function. *Adjust volume value level properly to avoid damaging hearing. Gaming Picture Over Drive Normal Color... -
Page 15: Gaming
Picture Language English Color OSD Timeout Audio OSD Background Gaming System Information Exit enter Move Language: English, Russian, German,French, Spanish, Italian, Finnish,Traditional Chinese, Simplified Chinese Japanese, Korean are available options. OSD Timeout: Adjust the OSD Timeout setting value between 10 and 120. OSD Background: Turn the OSD Background setting value between Off, 20%, 40%, 60% and 80%. -
Page 16: Information
Information Picture Main Source HDMI Color Resolution 2560x1440 Audio H/V Frequency H:89KHz V:60Hz Gaming Mode Normal Series Number System Memory Recall Information Exit enter Move Information: View the basic information of the model including Main Source, Resolution, H/V Frequency, Mode and Series Number setting. Memory Recall: Restore the Settings back to default values. -
Page 17: Specifications
Specifications Size 27” Pixel pitch 0.2331(H) x 0.2331(V)mm Brightness 250nits(Typ.) LCD panel Contrast 4000:1(Typ.) Viewing angle 178°(Horizontal)178°(Vertical) Response time 1ms MPRT ( motion clearness on ) Display colors 16.7 million colors Max. display frequency 2560*1440 @ 100 Hz(DP) (Resolution H*V/Fv) 2560*1440 @ 100 Hz(HDMI) Power On 18W (Typ.)**... -
Page 18: Supported Timing
Supported Timing PC Timing Horizonta Vertical Pixel Port Mode Resolution Frequenc Clock Frequenc y (Hz) (MHz) y (KHz) HDMI IN DP IN 640x480@60Hz 31.469 59.940 25.175 640x480@72Hz 37.861 72.809 31.500 640x480@75Hz 37.500 75.000 31.500 640x480@66.66Hz 35.000 66.667 30.240 VESA 720x400@70Hz 31.469 70.087 28.322... -
Page 19: Video Timing
Video Timing Pixel Video Aspect Field Rate Horizontal Vertical Formats Clock H-Total V-Total ID code Ratio (Hz) (kHz) (Hz) (MHz) 59.94 31.469 59.94 25.175 640x480p 31.5 25.2 59.94 31.469 59.94 720x480p 16:9 31.5 27.027 59.94 44.955 59.94 74.176 1650 1280x720p 16:9 74.25 1650... -
Page 20: Product Outline Dimensions
Product Outline Dimensions SCREWS:M4X10 613.43 43.42 224.98 224.98...
