Summary of Contents for Cooler Master GM34-CW

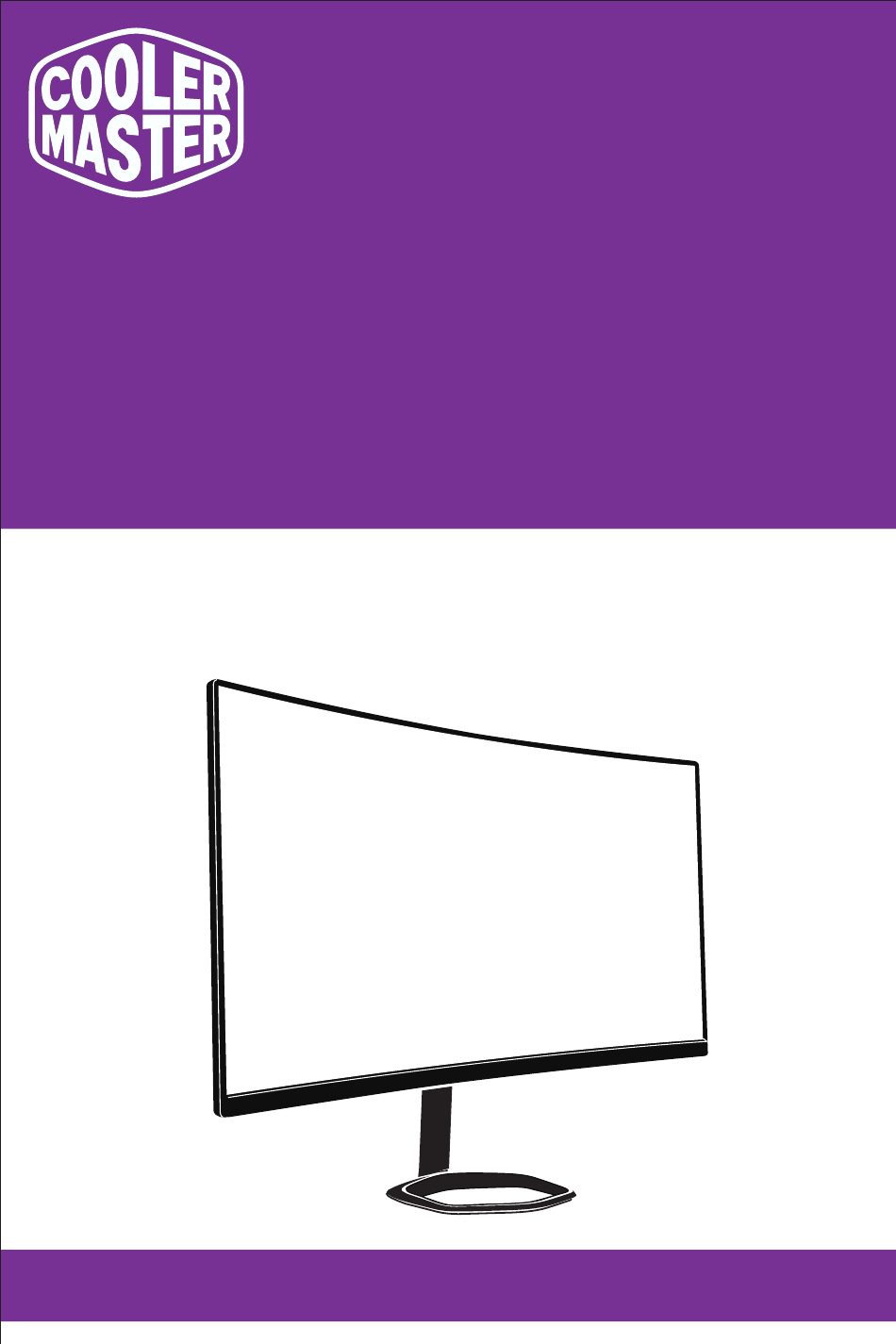

- Page 1 GM34-CW Cooler Master 34" Curved Gaming Monitor User Manual...
-
Page 2: Table Of Contents
Table of Contents Important Safety Instructions ................... 1 Connecting the Monitor to the Base ................ 2 Wall Mount Installation Instructions .................4 External Control Buttons ..................5 OSD Function Introductions ..................7 Main Menu ......................9 Color Setting ......................10 Picture Quality Setting ..................... Display ........................ -
Page 3: Important Safety Instructions
• Monitor -to -PC signal cable is frayed or damaged. • Liquid spills onto the LCD monitor or the monitor is exposed to rain. • The LCD monitor or case is damaged. Cooler Master LCD Monitor User Manual-1... -
Page 4: Connecting The Monitor To The Base
Connect the monitor to the base Cooler Master LCD Monitor User Manual-2... - Page 5 DP1.4 AC IN www.coolermaster.com Cooler Master LCD Monitor User Manual-3...
-
Page 6: Wall Mount Installation Instructions
Wall Mount Installation Instructions Cooler Master LCD Monitor User Manual-4... -
Page 7: External Control Buttons
This function enables the graphic source supporting FreeSync to adjust the screen refresh rate of the monitor in a dynamic manner based on the energy-saving typical content frame rates. It is almost able to totally prevent screen tearing and stuttering display. Cooler Master LCD Monitor User Manual-5... - Page 8 Back DP: 144Hz, Adaptive Sync supported under 3440X1440 HDMI: 100Hz, Adaptive Sync supported under 3440X1440 Cooler Master LCD Monitor User Manual-6...
-
Page 9: Osd Function Introductions
Response Time Override Fast Normal Picture Quality Setting High Super Resolution Middle Dynamic Luminous Control Fastest MPRT Fast Normal Wide Screen Aspect Ratio Wide Screen Display Auto Normal Normal LED Mode (Rear) Flicker Crosshair Transparency 0-100 Cooler Master LCD Monitor User Manual-7... - Page 10 PIP Position TopRight BottomRight BottomLeft Swap 中文 English 한국의 РУССКИЙ Language English Español 日本語 Francais 繁體中文 OSDH-Position 0~100 OSDV-Position 0~100 OSD Transparency 0~100 OSD Time Out 5~100 Normal OSD Rotation Normal FreeSync Other Reset Cooler Master LCD Monitor User Manual-8...
-
Page 11: Main Menu
Enter the Brightness/Contrast menu to adjust the brightness, contrast and dynamic contrast functions. 1.Brightness: Adjust the brightness between 0 and 100. 2.Contrast: Adjust the contrast between 0 and 100. 3.Dynamic Contrast: Enable or Disable the dynamic contrast function. Cooler Master LCD Monitor User Manual-9... -
Page 12: Color Setting
4.Low Blue Light: Adjust the low blue light setting value between 0 and 100. 5.Hue: Adjust the hue for the three colors red, green and blue. 6.Saturation: Adjust the saturation for the three colors red, green and blue. Cooler Master LCD Monitor User Manual-10... -
Page 13: Picture Quality Setting
Enter the Display menu to adjust functions including Aspect Ratio and LED Mode (Rear) etc. 1.Aspect Ratio: This can be set to Wide Screen, 4:3, 1:1 and Auto. 2.LED Mode (Rear): This can be set as Normal, Off or Flicker. Cooler Master LCD Monitor User Manual-11... - Page 14 3.PIP Size: Allows adjusting of PIP display size as Small, Medium or Large. 4.PIP Position: Allows adjusting of PIP display position as TopRight, TopLeft, ButtomRight or BottomLeft. 5.Swap: Turns the screen swap function On or Off. Cooler Master LCD Monitor User Manual-12...
-
Page 15: Osd
5.OSD Time Out: Set the display time of the OSD between 0 and 100. 6.OSD Rotation: Enables the rotate OSD function; it can be adjusted to Normal, 90 degrees, 180 degrees and 270 degrees etc. Cooler Master LCD Monitor User Manual-13... -
Page 16: Other
If FreeSync (Adaptive Sync) is turned On under the 144Hz refresh frequency, it may result in flickering issues or other opposite effects under certain scenario modes. 3.Reset: Selecting this allows restoring all setting values back to the default factory status. Cooler Master LCD Monitor User Manual-14... -
Page 17: Specifications
HDMI, HDMI high defini�on mul�media interface and the HDMI logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the U.S. and other countries. If you have any usage problems, please visit: h�ps://www.coolermaster.com/warranty Cooler Master LCD Monitor User Manual-15... -
Page 18: Declaration Of Restricted Substances
Internal and external cases (External case, case, support…) Main Board Other Circuit Boards LCD Display Panel Speakers Base Power Supply (Switching adapter) Accessories (Power cable, HDMI signal cable…) Other fixed components (Screws, clamps, latches) Cooler Master LCD Monitor User Manual-16...
