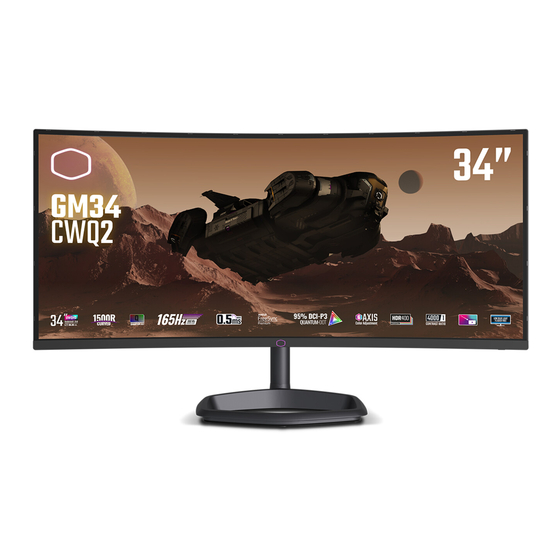

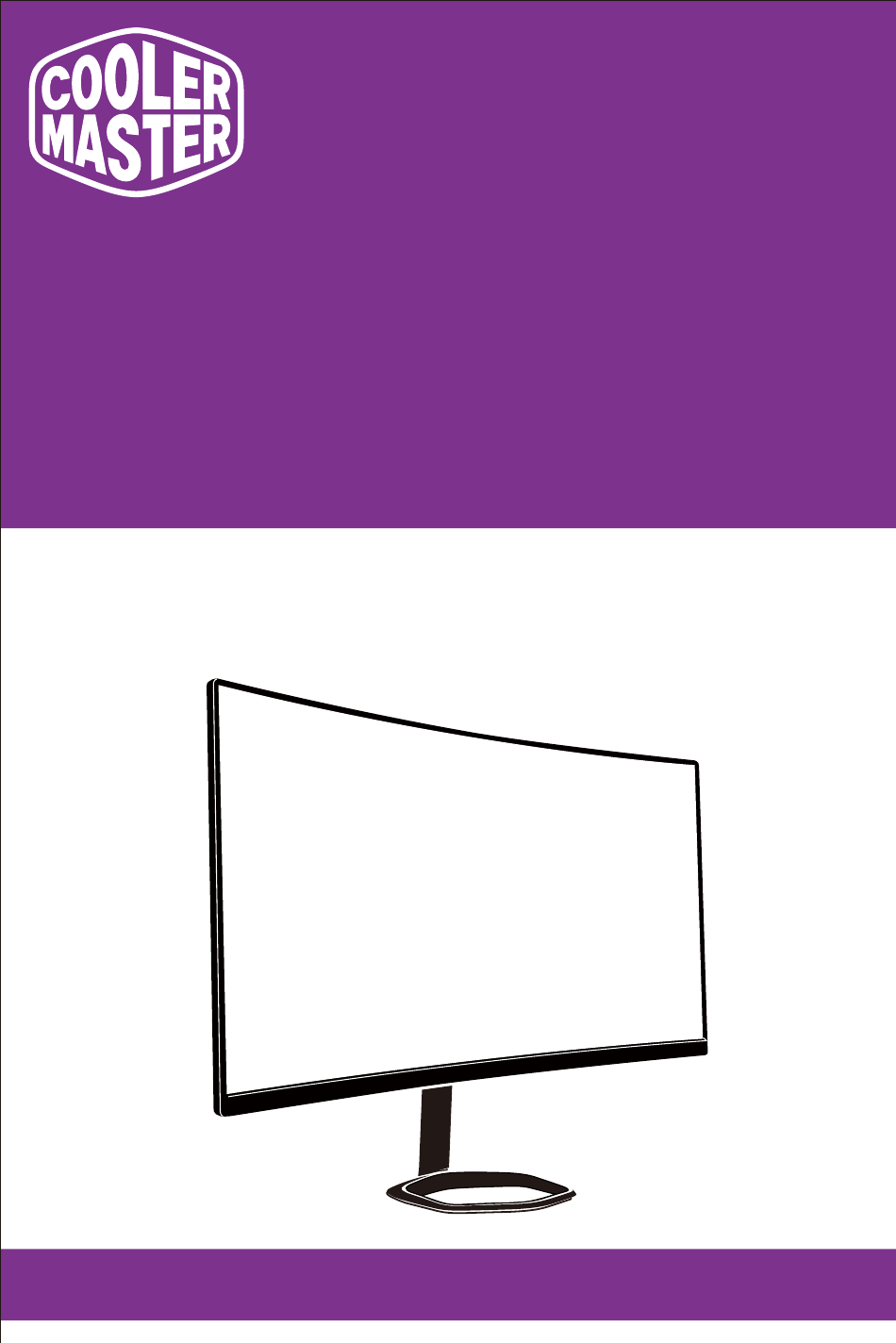

- Page 1 GM34-CWQ2 GM34-CWQ2 ARGB Cooler Master 34" Gaming Monitor User Manual...
-
Page 2: Table Of Contents
Table of Contents ................1 Requirements and Safety Notice ................3 Important Safety Instructions Package Contents ....................4 ................5 Installing the Monitor Arm/Base Adjusting the Monitor ................... 7 Wall Mount Installation Instructions ............... 8 External Control Buttons ..................9 Main Menu ...................... -
Page 3: Requirements And Safety Notice
If assistance is needed, contact the distributor or a professional radio/TV technician. CE Compliance Statement Cooler Master Technology Inc. hereby declares that the monitor conforms to the following key standards and other related provisions: EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, RoHS Directive 2011/65/EU and Directive 2009/125/EC establishing a framework for the setting of eco-design requirements for energy-related products. - Page 4 限用物質含有情況標示聲明書 限用物質及其化學符號 Restricted substances and its chemical symbols 六價鉻 多溴聯苯 多溴二苯醚 單元 Ｕnit Lead Mercury Cadmium 鉛 汞 鎘 Hexavalent Polybrominated Polybrominated chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (PBB) (PBDE) ○ ○ ○ ○ ○ ○ 支架/外殼 － ○ ○...
-
Page 5: Important Safety Instructions
Important Safety Instructions Please read the following instruc ons carefully. 1. To clean the LCD monitor screen: Turn off the LCD monitor and unplug the power cord. Spray a non-solvent cleaning solu on onto a rag and clean the screen gently. 2. -
Page 6: Package Contents
Package Contents Monitor Support stand Support base Power cord （Optional） HDMI cable（Optional） DP cable (Optional） Micro USB to USB Cable clip Base screws Type A cable (Optional） (Used for cable fixed in the (Used for installation of the back of the support stand) support base and support stand) (Used to light up ARGB stand) USB Type A to B cable... -
Page 7: Installing The Monitor Arm/Base
Installing the Monitor Arm/Base... - Page 8 20V/3.25A(Max) Micro USB (Optional) NOTE:The USB port on the base is only available for Model GM34-CWQ2 ARGB. MASTERPLUS+ Using the MasterPlus+ app, you can fully customize the ARGB lighting built into the Halo stand. *Please visit https://masterplus.coolermaster.com/ for more details.
-
Page 9: Adjusting The Monitor
Adjusting the Monitor For the best results, it is recommended to look directly at the front of the monitor and make any adjusts as necessary. Ensure that the monitor is mounted upright on the stand base. When adjusting the monitor viewing angles, avoid touching the screen and hold the stand in order to prevent it from falling over. -
Page 10: Wall Mount Installation Instructions
Wall Mount Installation Instructions 100mm VESA : 100 x 100 mm Screws : M4 x 10 mm... -
Page 11: External Control Buttons
External Control Buttons ① Menu/Navi/OK button Short press to turn on the monitor and Long press to turn off. When the OSD menu is activated,pull up/down/left/right the button to adjust the settings you need.When finished, you can pull the Button Back to return to the previous level or use the Button Exit to close the OSD menu. -
Page 12: Main Menu
Main Menu Input 3440x1440 Sync On HDR Off OD On Input HDMI 1 Picture HDMI 2 Color Adjustment Gaming Type-C Advanced Settings System MOVE BACK ENTER Enter the input menu to switch the input signal. HDMI : 100Hz (MAX) and Adaptive-Sync supported under 3440X1440 DP : 180Hz (MAX) and Adaptive-Sync supported under 3440X1440 Type C: 180Hz (MAX) under 3440X1440 Picture... - Page 13 3440x1440 Sync Off HDR On OD Off Input HDR Picture Mode User Picture Brightness Game Color Adjustment Contrast Movie Gaming Black Stabilization Advanced Settings Aspect Ratio System Sharpness MOVE BACK ENTER Enter the Picture menu to configure image setting. Picture Mode（SDR）: Enter the SDR Picture Mode menu to configure image setting. a.
-
Page 14: Color Adjustment
Color Adjustment 3440x1440 Sync On HDR Off OD On Input Color Temperature Native Picture Gamma Color Adjustment 6-axis Color Gaming Color Domain Auto Advanced Settings Color Space Auto System Blue Light Filter MOVE BACK ENTER Enter the Color Adjustment menu to adjust the ideal color mode. Color Temperature: Adjust between Bluish, Cool, Native, Warm and User Color settings which can adjust Red, Green and Blue value from 0 to 100. -
Page 15: Advanced Settings
Go to the Gaming menu to adjust the desired Gaming mode. Adaptive-Sync/FreeSync Premium: Turn the Adaptive-Sync/FreeSync Premium function On or Off. *Enabling Adaptive-Sync/FreeSync Premium may cause side effects like flicker due to the fluctuation of the output frequency from graphics cards. Over Drive: Off, Normal, Advanced, UltraFast, Dynamic, User modes are available options for speeding up the response time. -
Page 16: System
System 3440x1440 Sync On HDR Off OD On Input Language English Picture Setup Menu Color Adjustment Audio Gaming Information Advanced Settings Power Indicator System Sleep Reset MOVE BACK ENTER Language: English, French, German, Spanish, Italian, Finnish, Russian, Japanese, Korean, Traditional Chinese, Simplified Chinese are available options. Setup Menu: a. -
Page 17: Specifications
Specifications Size 34” Pixel pitch 0.232(H) x 0.232(V)mm Brightness 400nits(Typ.) LCD panel Contrast 4000:1(Typ.) Viewing angle 178°(Horizontal)178°(Vertical) Response time 0.5ms MPRT ( motion clearness on )** Display colors 16.7 million colors Max. display frequency 3440*1440 @ 180 Hz(DP & Type C) (Resolution H*V/Fv) 3440*1440 @ 100 Hz(HDMI) Power On... -
Page 18: Supported Timing
Supported Timing PC Timing Horizontal Vertical Pixel Port Mode Resolution Frequency Frequency Clock (KHz) (Hz) (MHz) HDMI IN DP IN Type-C 640x480@60Hz 31.469 59.940 25.175 640x480@72Hz 37.861 72.809 31.500 640x480@75Hz 37.500 75.000 31.500 640x480@66.66Hz 35.000 66.667 30.240 VESA 31.469 70.087 28.322 720x400@70Hz 800x600@56Hz... -
Page 19: Video Timing
Video Timing Video Aspect Field Rate Horizontal Vertical Pixel Clock Formats H-Total V-Total ID code Ratio (Hz) (kHz) (Hz) (MHz) 59.94 31.469 59.94 25.175 640x480p 31.500 60.00 25.200 59.94 31.469 59.94 27.000 720x480p 16:9 31.500 60.00 27.027 59.94 44.955 59.94 74.176 1650 1280x720p...
