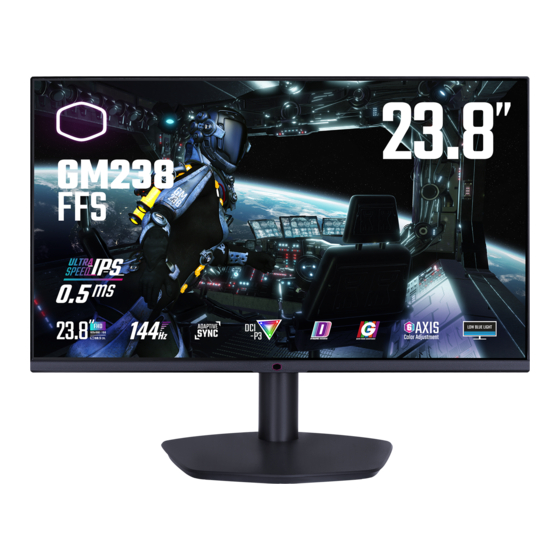

Cooler Master 23.8" Gaming Monitor
User Manual
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
GM238-FFS
o cerca il tuo prodotto tra le
migliori offerte di Monitor
1
Cooler Master

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GM238-FFS and is the answer not in the manual?

Questions and answers

Summary of Contents for Cooler Master GM238-FFS

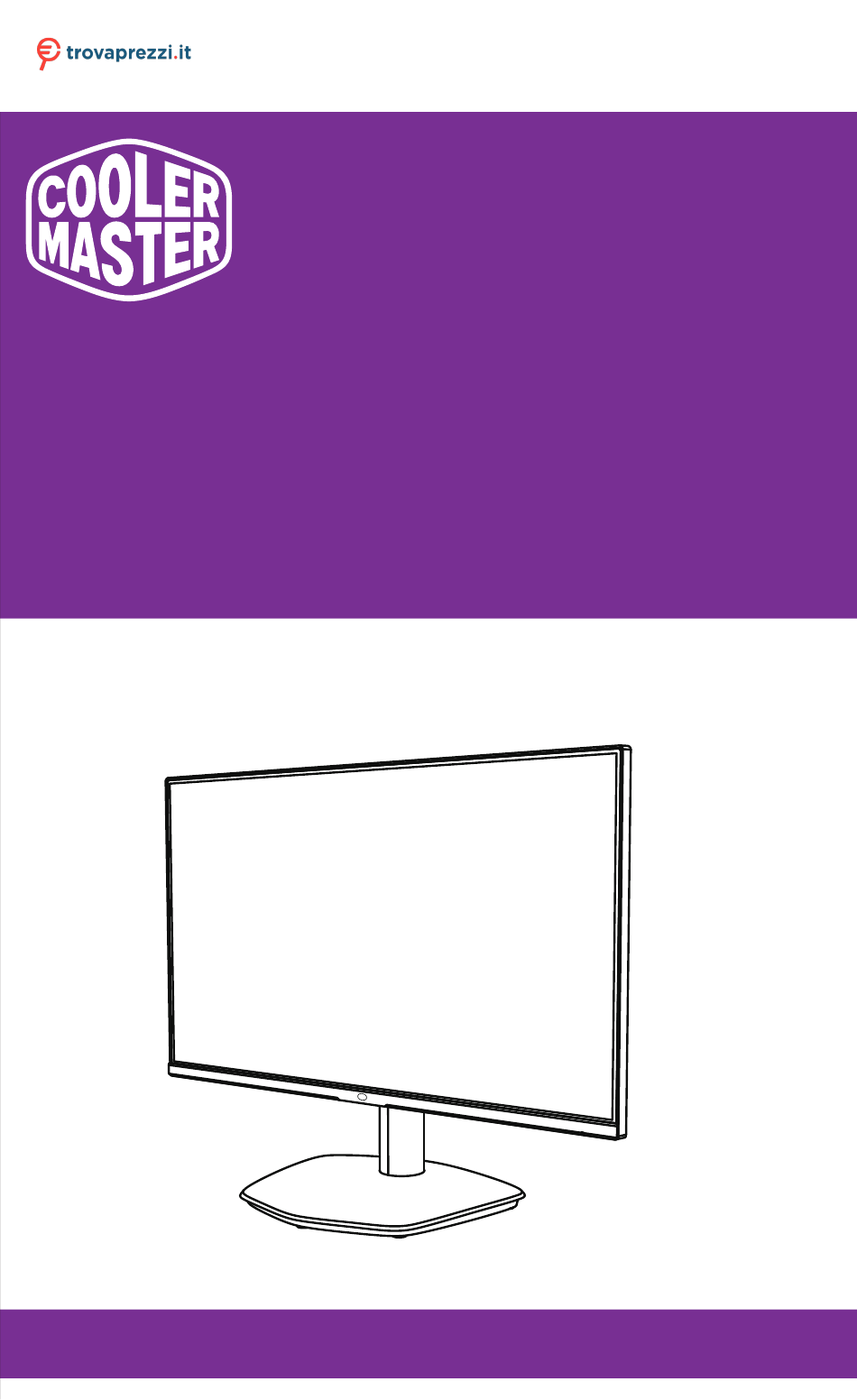

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Cooler Master GM238-FFS o cerca il tuo prodotto tra le migliori offerte di Monitor GM238-FFS Cooler Master 23.8" Gaming Monitor User Manual...
  • Page 2: Table Of Contents

    Table of Contents Requirements and Safety Notice ���������������������������������������������������������������������������������������������������1 Important Safety Instructions ���������������������������������������������������������������������������������������������������������3 Package Contents �������������������������������������������������������������������������������������������������������������������������4 Installing the Monitor Stand and Base �������������������������������������������������������������������������������������������5 Adjusting the Monitor ���������������������������������������������������������������������������������������������������������������������7 Wall Mount Installation Instructions �����������������������������������������������������������������������������������������������8 External Control Buttons����������������������������������������������������������������������������������������������������������������9 Main Menu �����������������������������������������������������������������������������������������������������������������������������������10 [Input Select] �������������������������������������������������������������������������������������������������������������������������������������������������� 10 [Picture Setting] ���������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 3: Requirements And Safety Notice

    ● If assistance is needed, contact the distributor or a professional radio/TV technician� CE Compliance Statement Cooler Master Technology Inc� hereby declares that the monitor conforms to the following key standards and other related provisions: EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, RoHS Directive 2011/65/EU and Directive 2009/125/EC establishing a framework for the setting of eco-design requirements for energy-related products�...
  • Page 5: Important Safety Instructions

    Important Safety Instructions Please read the following instructions carefully� 1� To clean the LCD monitor screen: Turn off the LCD monitor and unplug the power cord� Spray a non-solvent cleaning solution onto a rag and clean the screen gently� 2� Do not place the LCD monitor near a window� Exposing the monitor to rain, moisture or sunlight can severely damage it�...
  • Page 6: Package Contents

    Package Contents Monitor Stand Base Power cord (Optional) HDMI cable (Optional) DP cable (Optional) Adapter...
  • Page 7: Installing The Monitor Stand And Base

    Installing the Monitor Stand and Base...
  • Page 9: Adjusting The Monitor

    Adjusting the Monitor ● For the best results, it is recommended to look directly at the front of the monitor and make any adjusts as necessary� ● Ensure that the monitor is mounted upright on the stand base� ● When adjusting the monitor viewing angles, avoid touching the screen and hold the stand in order to prevent it from falling over�...
  • Page 10: Wall Mount Installation Instructions

    Wall Mount Installation Instructions VESA: 100×100 mm Screw: M4×10 mm...
  • Page 11: External Control Buttons

    External Control Buttons Menu/Navi/OK button Short press to turn on the monitor and Long press to turn off� When the OSD menu is activated, pull up/down/left/right the button to adjust the settings you need� When finished, you can pull the Button Back to return to the previous level or use the Button Exit to close the OSD menu�...
  • Page 12: Main Menu

    Main Menu [Input Select] Input Picture Gaming Color Advanced Setup Select Setting Setup Adjustment Setting Menu HDMI 1 HDMI 2 DisplayPort 1 DisplayPort 2 ● Enter the Input Select menu to switch the input signal� ■ HDMI 1, 2: Maximum input signal 1920×1080@144Hz� ■...
  • Page 13: [Gaming Setup]

    Input Picture Gaming Color Advanced Setup Select Setting Setup Adjustment Setting Menu Picture Mode Brightness Contrast Aspect Ratio Sharpness ● Enter the Picture Setting menu to adjust the picture mode� ■ Picture Mode: Experience different picture modes� ■ Brightness: Adjust the backlight brightness from 0 and 100� ■...
  • Page 14: [Color Adjustment]

    [Color Adjustment] Input Picture Gaming Color Advanced Setup Select Setting Setup Adjustment Setting Menu 6-axis Color Gamma Saturation Green Color Temperature Blue Color Domain Cyan Blue Light Filter Magenta Yellow ● Enter the Color Adjustment menu to adjust the color mode� ■...
  • Page 15 Input Picture Gaming Color Advanced Setup Select Setting Setup Adjustment Setting Menu Advanced DCR Auto HMDI Range Input Picture Gaming Color Advanced Setup Select Setting Setup Adjustment Setting Menu Auto Advanced DCR Full Range HMDI Range Limited Range ● Enter the Advanced Setting menu to select the advanced mode� ■...
  • Page 16: [Setup Menu]

    [Setup Menu] Input Picture Gaming Color Advanced Setup Select Setting Setup Adjustment Setting Menu Language Select English Information Français Audio Adjust Deutsch OSD Timeout Español OSD Background Italiano Power Indicator Suomi Auto Power Off Русский Sleep Tiếng Việt ⽇本語 DDC/CI 한국의...
  • Page 17: Specifications

    Specifications Size 23�8'' Pixel pitch 0�2745 (H) × 0�2745 (V) mm Brightness 250 nits (Typ�) LCD panel Contrast 1000:1 (Typ�) Viewing angle 178°(Horizontal) 178°(Vertical) Response time 0�5 ms** Display colors 16�7 million colors Maximum display frequency (Resolution H * V/Fv) 1920×1080@144Hz (DP &...
  • Page 18: Supported Timing

    Supported Timing [PC Timing] Port H� Frequency Frame Pixel Clock Mode Resolution HDMI1 HDMI2 (KHz) Rate (Hz) (MHz) DP1 Input DP2 Input Input Input 640×480@59Hz 31�463 59�9286 25�17 640×480@60Hz 31�5 25�2 640×480@75Hz 37�5 31�5 112�5 640×480@100Hz 112�5 640×480@119Hz 134�864 119�879 296�7 640×480@120Hz 134�864...
  • Page 19 Port H� Frequency Frame Pixel Clock Mode Resolution HDMI1 HDMI2 (KHz) Rate (Hz) (MHz) DP1 Input DP2 Input Input Input 1152×864@59Hz 67�432 59�9394 148�35 53�783 59�9586 81�75 1152×864@60Hz 67�432 59�9394 148�35 1152×864@75Hz 67�5 112�5 1152×864@100Hz 112�5 1152×864@119Hz 134�864 119�879 296�7 1152×864@120Hz 134�864 119�879...
  • Page 20 Port H� Frequency Frame Pixel Clock Mode Resolution HDMI1 HDMI2 (KHz) Rate (Hz) (MHz) DP1 Input DP2 Input Input Input 112�5 1366×768@100Hz 112�5 1366×768@119Hz 134�864 119�879 296�7 SXGA 1366×768@120Hz 134�864 119�879 296�7 159�985 144�001 326�37 1366×768@144Hz 160�13 144�002 333�07 1280×800@59Hz 67�432 59�9394 148�35...
  • Page 21: [Video Timing]

    Port H� Frequency Frame Pixel Clock Mode Resolution HDMI1 HDMI2 (KHz) Rate (Hz) (MHz) DP1 Input DP2 Input Input Input 1920×1080@50Hz 56�25 148�5 1920×1080@59Hz 67�432 59�9394 148�35 1920×1080@60Hz 67�5 148�5 112�5 1920×1080@100Hz 112�5 1920×1080@119Hz 134�864 119�879 296�7 1920×1080@120Hz 134�402 120�002 274�18 159�985 144�001...
  • Page 22: Product Outline Dimensions
