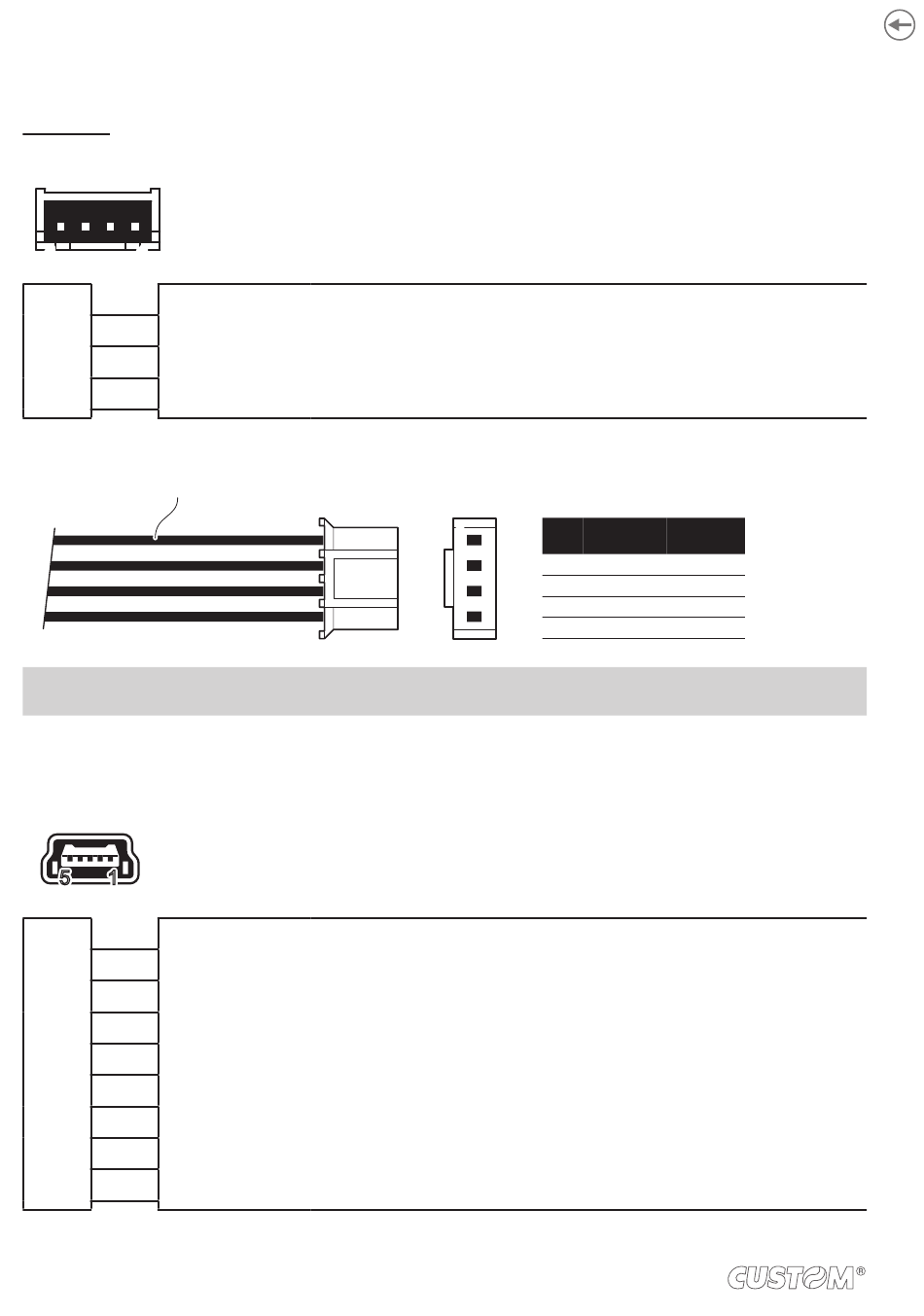

4.3 Pinout

PLUS4 STD
POWER SUPPLY
JST male connector 90° (S4B-XH-A-1)
4 1
1 +VL
2 +VL
J13
3 GND
4 GND
The following igure shows the connector pinout of the power supply cable for the device.
Power suppy cable
ATTENTION:
Respect power supply polarity.
MINI USB INTERFACE
Female MINI USB type B connector
5 1
1 VPLUG
2 D0-
3 D0+
4 n.c.
5 GND
J6
SH1 GND
SH2 GND
SH3 GND
SH4 GND
26
Female JST connector
series XHP-4
1 PIN Cable
color
1 Red
2 Orange
3 Black
4
4 Black
Segnal
+VL
+VP
GND
GND
