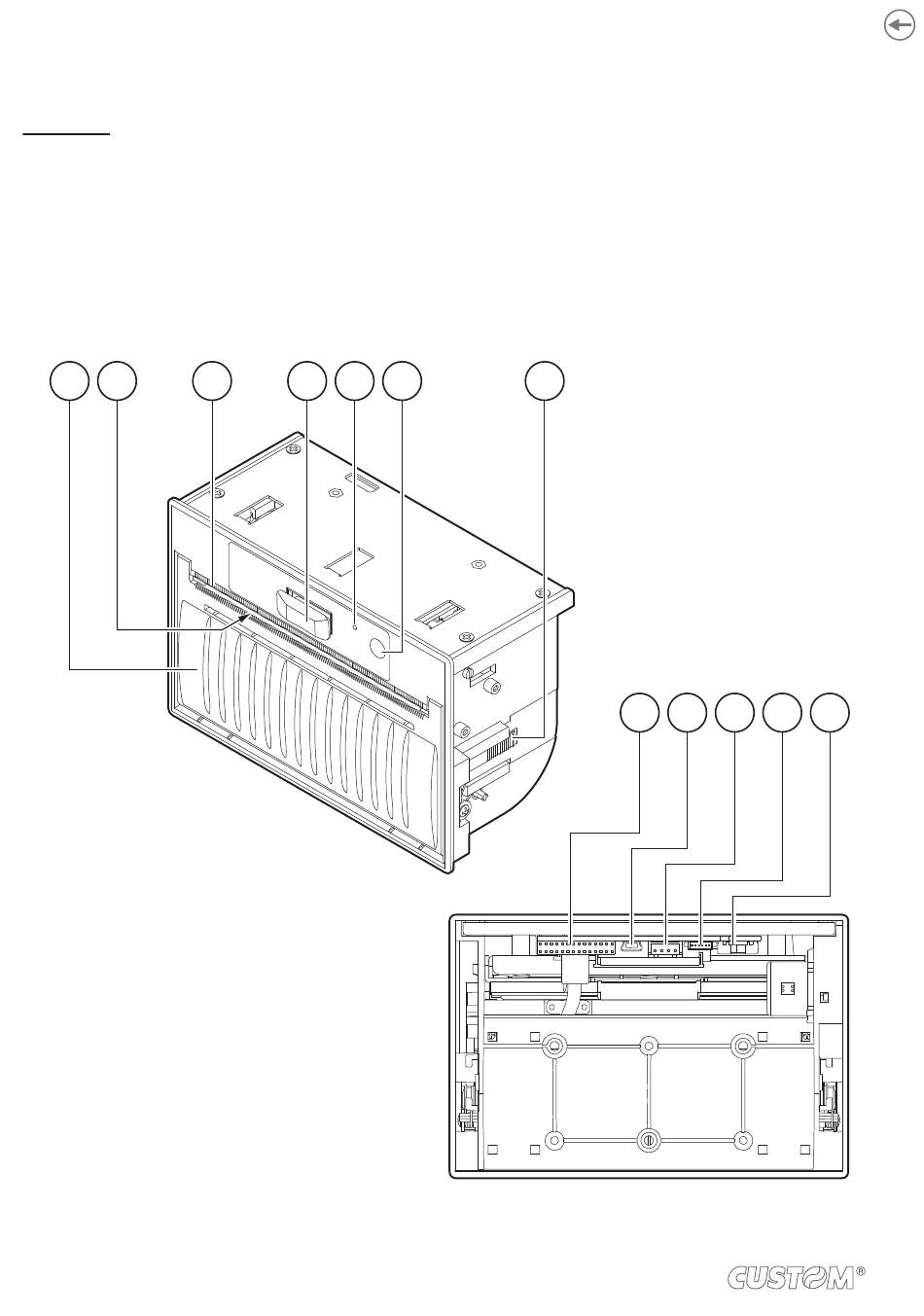

3.2 Device component: external views
PLUS4 STD
1. Front cover
2. Paper output
3. Serrated blade for manual tear of
4. Release lever for cover
5. Status LED
6. FEED key
1
2
14
3
4
5
7. Seat for ixing hook
8. Connector for extended range module (optional)
9. USB interface connector (miniUSB)
10. Power supply connector
11. RS232/TTL serial interface connector
12. Switch for serial interface setting
6
7
8
9
10
11
12
