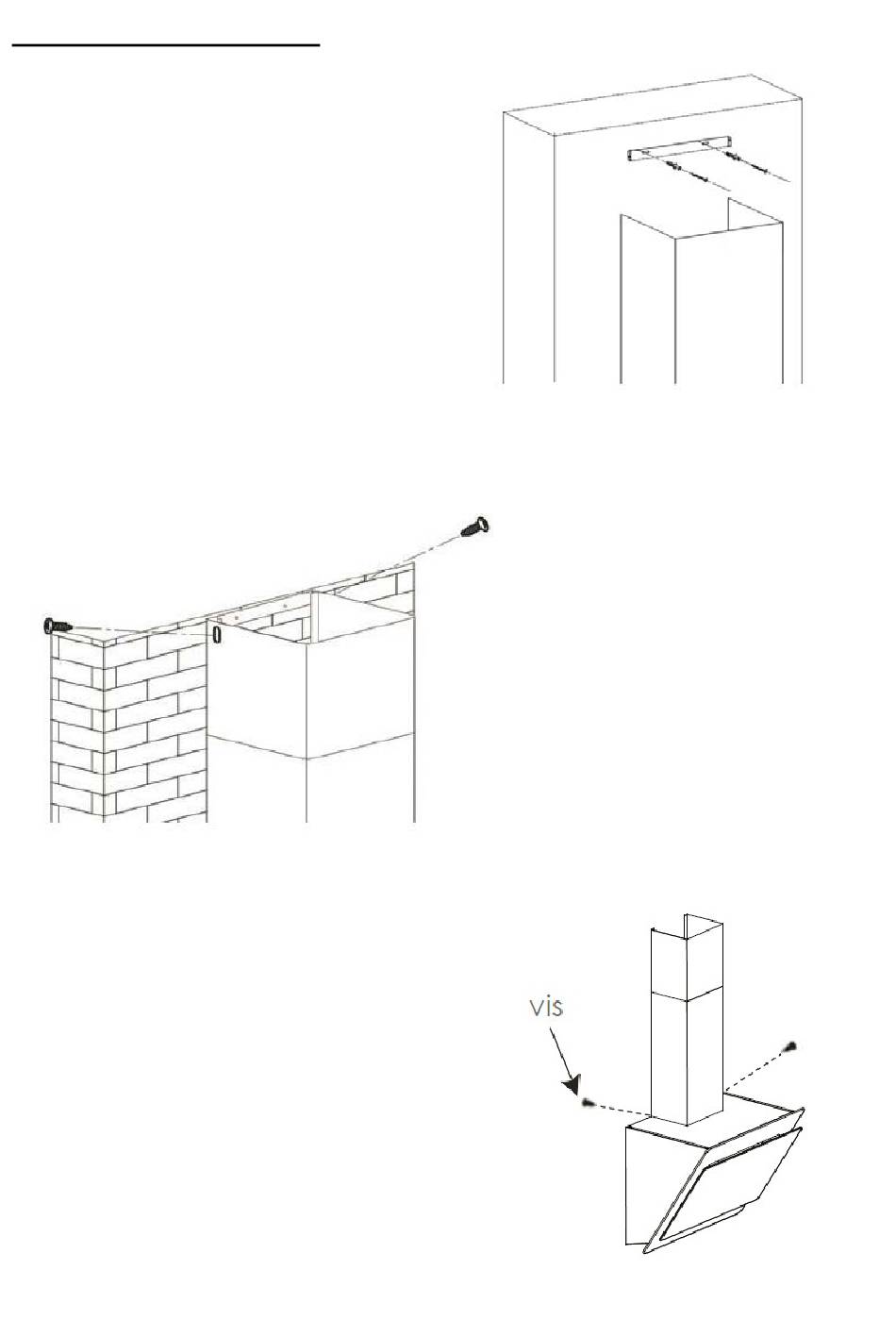

INSTALLING THE HOOD
Secure the wall bracket of the upper
chimney to the wall using the selected
dowels (8 mm screws recommended).
Fasten the lower chimney to the lugs of the
kitchen hood using 2 screws ST4x8mm.
Reassemble the upper
chimney and fix it to the wall
bracket with 2 screws
ST4x8mm
12
