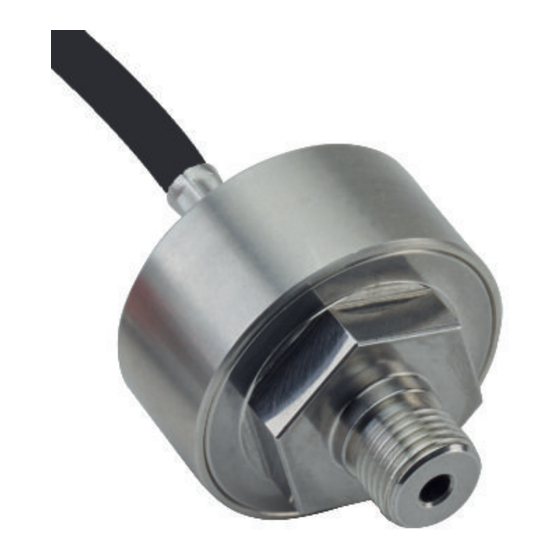

Pfeiffer Vacuum RPT 010 Operating Instructions Manual
Sensor for integrated pressure measurement
Hide thumbs
Also See for RPT 010:
- Operating instructions manual (8 pages) ,
- Operating instructions manual (32 pages)
Subscribe to Our Youtube Channel
Related Manuals for Pfeiffer Vacuum RPT 010
Summary of Contents for Pfeiffer Vacuum RPT 010
- Page 1 OPERATING INSTRUCTIONS Translation of the Original RPT 010 Sensor for integrated pressure measurement...
- Page 2 Dear Customer, Thank you for choosing a Pfeiffer Vacuum product. Your new sensor is designed to support you in your individual application with full performance and without malfunctions. The name Pfeiffer Vacuum represents high-quality vacuum technology, a comprehensive and complete range of top-quality products and first-class service.
-
Page 3: Table Of Contents
5.2.3 Connecting the sensor with a D-Sub adapter to HiScroll Operation Evaluating the measurement signal Determining effective pressure with correction factors Maintenance Removing components Cleaning of components Calibrating the pressure sensor Shipping Recycling and disposal General disposal information Disposal of sensors Service solutions by Pfeiffer Vacuum Spare parts 3/34... - Page 4 Table of contents Technical data and dimensions 12.1 General 12.2 Technical data 12.3 Dimensions Certification EU Declaration of conformity UK Declaration of Conformity 4/34...
-
Page 5: About This Manual
1.1.2 Variants This document applies to products with the following article numbers: Article number Designation Connection PT R71 550 RPT 010, G1/8", 0.5 m cable AccessLink PD 100 100 AT Tbl. 2: Variants 1.2 Target group These operating instructions are aimed at all persons performing the following activities on the product: ●... -
Page 6: Pictographs
1.3.3 Stickers on the product This section describes all the stickers on the product along with their meanings. Rating plate The rating plate is lo- D-35614 Asslar Mod. RPT 010 cated on the side of PT R71 xxx xxxxxxxx the sensor. Input 5 V DC 0.25 W... -
Page 7: Trademark Proof
About this manual Abbreviation Explanation Measuring signal [V] (output voltage) Underrange Tbl. 3: Abbreviations used 1.4 Trademark proof ● HiPace ® is a registered trademark of Pfeiffer Vacuum GmbH. ● Molex ® is a registered trademark of Molex Incorporated, Lisle, Illinois, USA. 7/34... -
Page 8: Safety
► Only operate the unit in a dry environment. ► Operate the unit away from fluids and sources of moisture. ► Do not switch on the unit if fluid has entered it. Instead contact Pfeiffer Vacuum Service. ► Always disconnect the power supply before cleaning the unit. -
Page 9: Safety Precautions
Safety WARNING Health hazard through poisoning from toxic contaminated components or devices Toxic process media result in contamination of devices or parts of them. During maintenance work, there is a risk to health from contact with these poisonous substances. Illegal disposal of toxic sub- stances causes environmental damage. -
Page 10: Limits Of Use Of Product
Tbl. 4: Permissible ambient conditions 2.5 Proper use The sensor is used for the integrated pressure measurement at the Pfeiffer Vacuum HiPace or HiScroll within the permissible total pressure range. Use the product according to its intended purpose 1. Install, operate and maintain the sensor only as prescribed in these operating instructions. -
Page 11: Personnel Qualification
The work described in this document may only be carried out by persons who have appropriate profes- sional qualifications and the necessary experience or who have completed the necessary training as provided by Pfeiffer Vacuum. Training people 1. Train the technical personnel on the product. -
Page 12: Product Description
● Piezo-resistive measurement system The sensor responds to measured value requests, type requests and adjustment commands. Signals are evaluated via the interfaces of the electronic drive unit using a Pfeiffer Vacuum control unit or exter- nal units (e.g. PLC or PC). -
Page 13: Transport And Storage
Transport and storage 4 Transport and storage 4.1 Transporting the product NOTICE Damage caused by incorrect transport Transport in unsuitable packaging or failure to install all transport locks can result in damage to the product. ► Comply with the instructions for safe transport. Packing We recommend keeping the transport packaging and original protective cover. -
Page 14: Installation
Installation 5 Installation 5.1 Establishing the vacuum connection NOTICE Impairment from contamination and damage Touching the devices or components with bare hands increases the desorption rate and leads to in- correct measurements. Dirt (e.g. dust, fingerprints, etc.) and damage impair the function. ►... -
Page 15: Connecting The Sensor To Hiscroll
Installation Procedure 1. Remove the protective cap from the sensor and store it in a safe place. 2. Remove the locking screw from the desired connector of the turbopump. 3. Mount the sensor on the vacuum side on the desired G 1/8" connector of the turbopump. –... -
Page 16: Establishing Electric Connection
Installation 5.2 Establishing electric connection NOTICE Property damage to the electronics or the sensor Disconnecting the plug-and-socket connection with the voltage supply switched on may lead to the destruction of electronic components. ► Always interrupt the voltage supply before you plug in or unplug the sensor connection cable. 5.2.1 Connecting sensor with AccessLink Vacuum pump operating instructions Observe the information on the connection in the operating instructions for the vacuum... -
Page 17: Connecting The Sensor With A D-Sub Adapter To Hiscroll
Installation Prerequisites ● Required firmware versions of the electronic drive unit are available ● All connectors are de-energized Accessories required ● TIC 010, adapter for two sensors Procedure 1. Connect the cable to the TIC 010 at the "PV.can" connector of the electronic drive unit. 2. -
Page 18: Operation
6.1 Evaluating the measurement signal Signal evaluation via output interfaces The output interfaces of the electronic drive unit with the applicable Pfeiffer Vacuum proto- col and the Pfeiffer Vacuum parameter set are used to operate the connected accessory devices on a Pfeiffer Vacuum vacuum pump. - Page 19 Operation p [hPa] Freon 12 –1 Water vapor –2 –3 –3 –2 –1 [hPa] Fig. 5: Displayed pressure Within the pressure range < 1 hPa, the display is linear. Set correction factor at electronic drive unit ► Use [P:742] to enter correction factor and correct displayed measured value. Alternatively: Calculating pressure for gases other than air 1.
-
Page 20: Maintenance
Warranty claim Opening the device during the warranty period or damaging/removing the warranty seal will void the warranty. Contact the Pfeiffer Vacuum Service Center in the event of process-related shorter mainte- nance intervals. First read through the sections completely Read the section with the work instructions through completely first before you commence with work. -
Page 21: Cleaning Of Components
► Operate the unit away from fluids and sources of moisture. ► Take special precautions if there is a risk of dripping water. ► Do not switch on the unit if fluid has penetrated into it, instead contact the Pfeiffer Vacuum Serv- ice Center. - Page 22 Maintenance Perform HV calibration 1. Operate vacuum system at final pressure. 2. Wait for stabilization period of at least 10 minutes. 3. Read off actual pressure value of reference measurement. 4. Use [P:740] to set actual pressure value to reference value. 5.
-
Page 23: Shipping
► Comply with the instructions for safe distribution. Decontamination subject to charge Pfeiffer Vacuum decontaminates products not clearly declared "Free of contamination" at your expense. Ship product safely ► Do not ship microbiological, explosive or radioactively contaminated products. -
Page 24: Recycling And Disposal
● Help to reduce the wastage of natural resources. ● Prevent contamination. 9.1 General disposal information Pfeiffer Vacuum products contain materials that you must recycle. ► Dispose of our products according to the following: – Iron – Aluminium –... -
Page 25: Service Solutions By Pfeiffer Vacuum
We are always focused on perfecting our core competence – servicing of vacuum components. Once you have purchased a product from Pfeiffer Vacuum, our service is far from over. This is often exactly where service begins. Obviously, in proven Pfeiffer Vacuum quality. - Page 26 Service solutions by Pfeiffer Vacuum 5. Prepare the product for transport in accordance with the provisions in the contamination declaration. a) Neutralize the product with nitrogen or dry air. b) Seal all openings with blind flanges, so that they are airtight.
-
Page 27: Spare Parts
Spare parts 11 Spare parts Ordering spare parts ► Have the part number to hand, along with other details from the rating plate as required. ► Install original spare parts only. Description Order number U sealing ring U 10.4/16 x 2 P 3529 133 -P Tbl. -
Page 28: Technical Data And Dimensions
12.2 Technical data Part number PT R71 100 PT R71 550 PD 100 100 -T PD 100 100 AT Selection field RPT 010, digital RPT 010, digital RPT 010, digital RPT 010, digital Piezo/Pirani sen- Piezo/Pirani sen- Piezo/Pirani sen- Piezo/Pirani sen-... -
Page 29: Dimensions
Installation alti- 2000 m 2000 m 2000 m 2000 m tude, max. Degree of pollu- tion Protection degree IP40 IP40 IP20 IP40 Tbl. 10: Technical data, RPT 010 12.3 Dimensions SW 19 Fig. 6: Dimensions with AccessLink connector Dimensions in mm 29/34... -
Page 30: Certification
The product RPT 010 with AccessLink connector - conforms to the UL standard UL 61010-1:2012. - is certified to the CAN/CSA standard CAN/CSA C22.2 No. 61010-1-12. -
Page 31: Eu Declaration Of Conformity
This declaration of conformity has been issued under the sole responsibility of the manufac- turer. Declaration for product(s) of the type: Piezo/Pirani sensor RPT 010 We hereby declare that the listed product satisfies all relevant provisions of the following European Directives. Electromagnetic compatibility 2014/30/EU... -
Page 32: Declaration Of Conformity
EN IEC 61326-1:2021 EN IEC 63000:2018 The manufacturer's authorized representative in the United Kingdom and the authorized agent for compiling the technical documentation is Pfeiffer Vacuum Ltd, 16 Plover Close, In- terchange Park, MK169PS Newport Pagnell. Signature: Pfeiffer Vacuum GmbH Berliner Straße 43... - Page 33 33/34...
