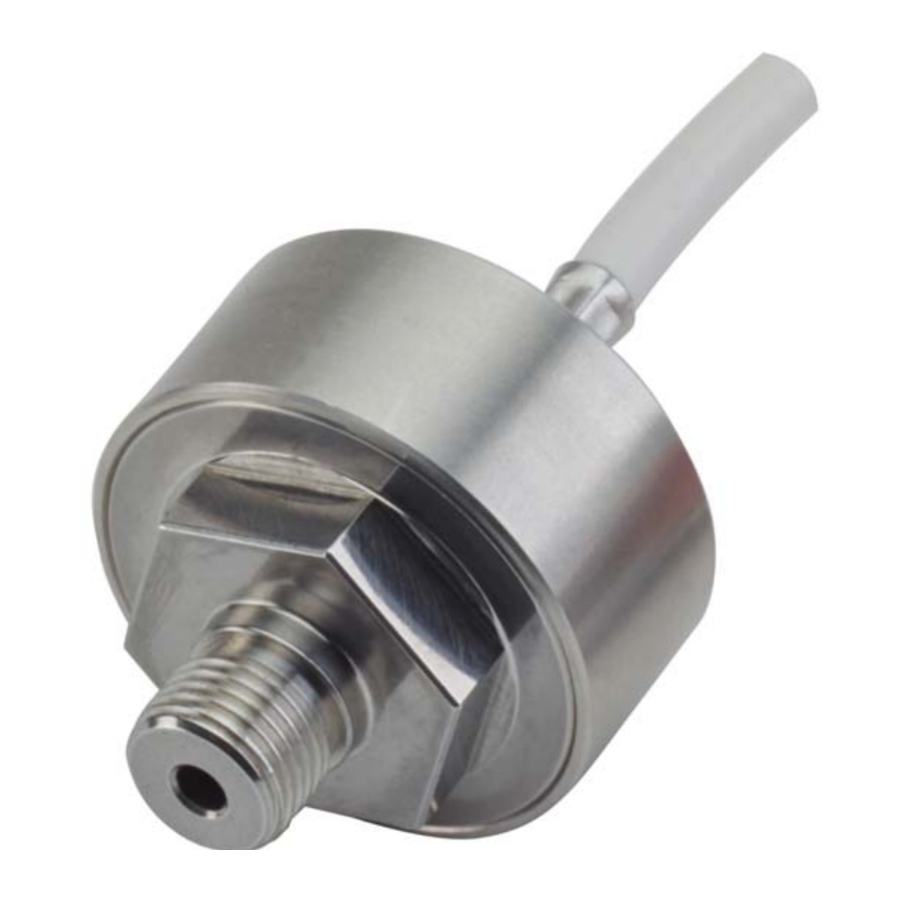

Pfeiffer Vacuum RPT 010 Operating Instructions Manual
Piezo/pirani sensor for the integrated pressure measurement
Hide thumbs
Also See for RPT 010:
- Operating instructions manual (32 pages) ,
- Operating instructions manual (36 pages)
Related Manuals for Pfeiffer Vacuum RPT 010
Summary of Contents for Pfeiffer Vacuum RPT 010

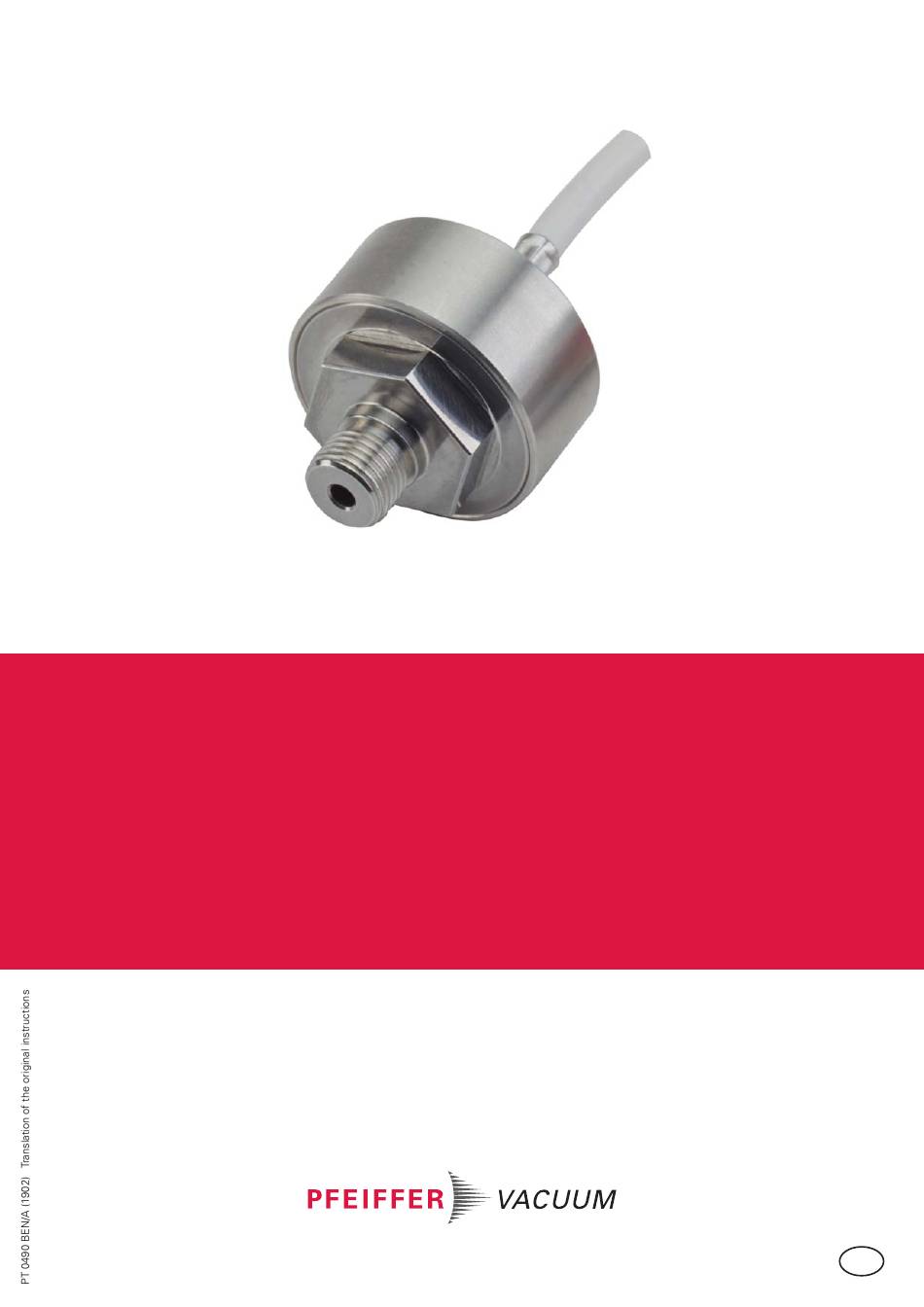

- Page 1 OPERATING INSTRUCTIONS RPT 010 Piezo/Pirani sensor for the integrated pressure measurement...
- Page 2 Table of contents Table of contents About this manual ..........3 1.1 Validity.
- Page 3 ● The RPT 010 sensor is only suitable for pressure measurement of air, inert gases and gas mixtures outside of their explosion limits. ● Use the RPT 010 in conjunction with the PV.can TIC 010 converter on a Pfeiffer Vac- uum HiPace® turbo pump.
- Page 4 Ensure that the connection flange is clean, dry and free of grease. Remove and keep safe the protective covers. Screw the RPT 010 sensor into a suitable G 1/8" connection on the vacuum side of the turbopump. The following options are available as standard equipment: –...
- Page 5 Operation Connect the sensor RPT 010 to the interface "PV.can" of the electronic drive unit us- ing the converter TIC 010. The RPT 010 sensor with converter TIC 010 can be connected to and operated with all electronic drive units with the following software version or higher:...
- Page 6 Spare parts Spare parts Designation RPT 010 Seal ring P 3529 133 -P Technical data and dimensions Parameter RPT 010 Flange (in) G 1/8" Method of measurement Piezo/Pirani Accuracy of measurement 5 · 10 – 1 · 10 ± 50 %; 1 · 10 –...
- Page 7 EC directives: ● Electromagnetic Compatibility 2014/30/EU ● Low Voltage 2014/35/EU Piezo/Pirani RPT 010 Harmonised standards and national standards and specifications which have been ap- plied: EN 61326-1: 2013 Group 1 / Class B EN 50581: 2012...
- Page 8 VACUUM SOLUTIONS FROM A SINGLE SOURCE Pfeiffer Vacuum stands for innovative and custom vacuum solutions worldwide, technological perfection, competent advice and reliable service. COMPLETE RANGE OF PRODUCTS From a single component to complex systems: We are the only supplier of vacuum technology that provides a complete product portfolio.
